Rear Side Door Window Inner Sealing Strip Replacement

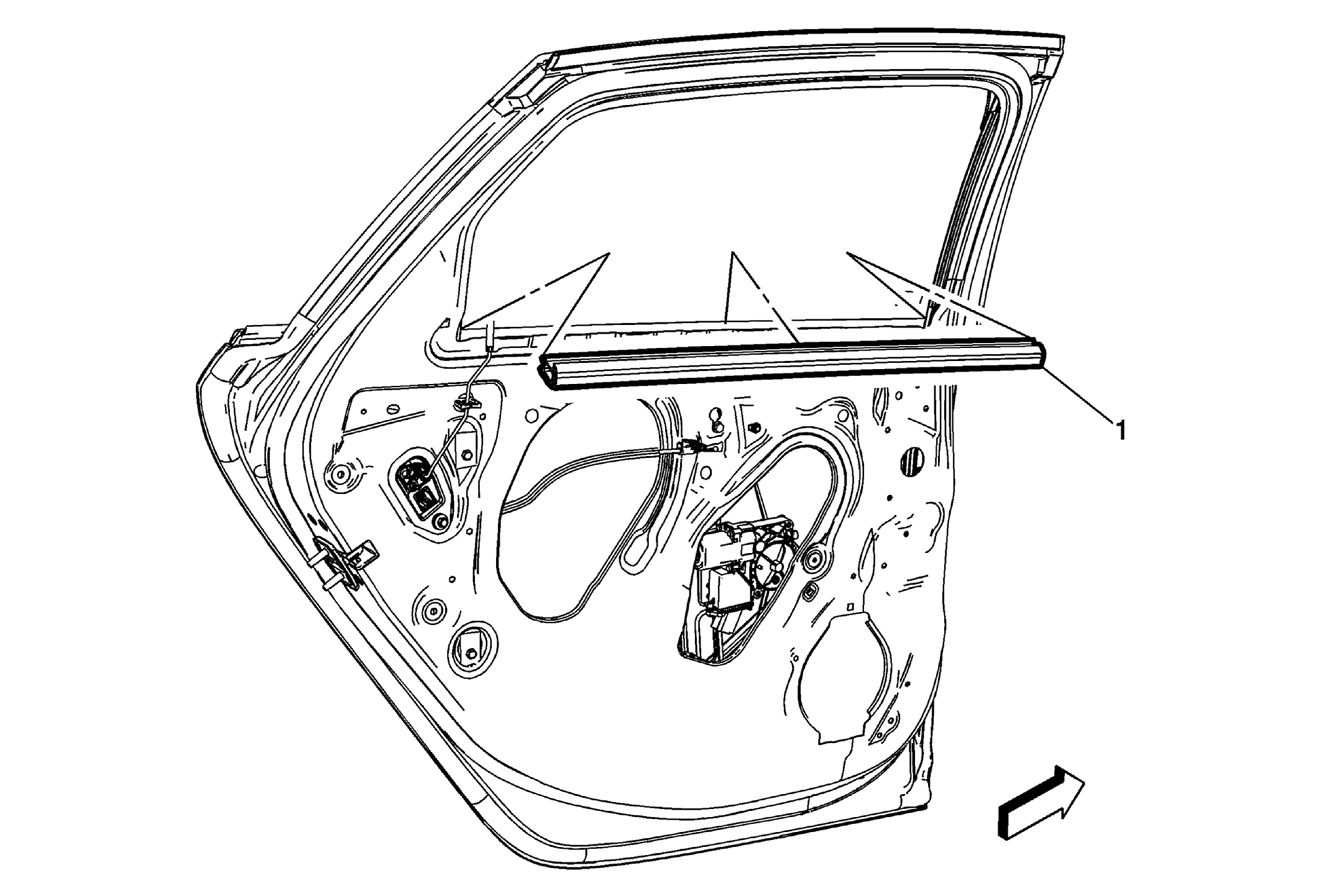

Fig 1: Rear Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Window Inner Strip Procedure Lift the rear side door window inner strip off the pinch-weld flange. Press firmly to insert the rear side door window inner strip back on the door flange. NOTE: Inspect the window for proper operation before installing the trim.

Callout

Component Name

Preliminary Procedures
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Window Inner Strip

Procedure

Lift the rear side door window inner strip off the pinch-weld flange.
Press firmly to insert the rear side door window inner strip back on the door flange.

NOTE:

Inspect the window for proper operation before installing the trim.
