Diagnostic Aid: Part Identification For Next Generation Infotainment Components And Correct Labor Codes (PIC6095C)
Publication date: 2018-07-06Reference number: PIC6095C
Supersedes refnos: PIC6095, PIC6095A, PIC6095B
DIAGNOSTIC AID: PART IDENTIFICATION FOR NEXT GENERATION INFOTAINMENT COMPONENTS AND CORRECT LABOR CODES
TECHNICAL SERVICE BULLETIN
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| All | All | 2013-2019 | All | All | All | All | |
SUPERSESSION STATEMENT
This PI was superseded to update Model Years. Please discard PIC6095B.
CONDITION/CONCERN
The following information will aid dealer personnel in identifying infotainment components on the vehicles listed above to ensure that the correct component is ordered/replaced and the correct labor code is used for warranty submission when replacing or reprogramming the component.
If performing a Bulletin/PI/Field Action, please use any special Labor codes listed in the document.
ICS (INTEGRATED CENTER STACK) -DISPLAY/RADIO CONTROL ASSEMBLY

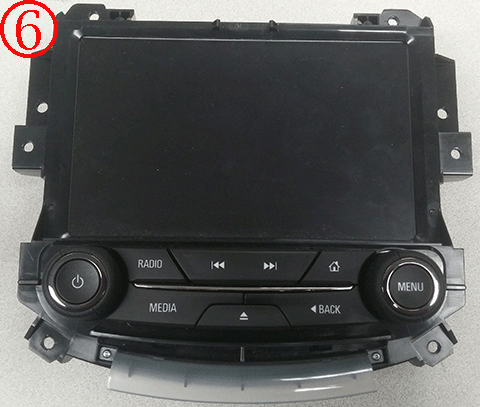

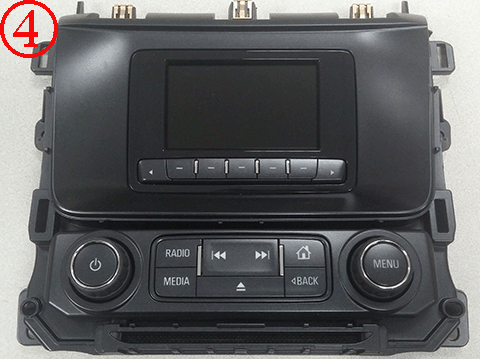

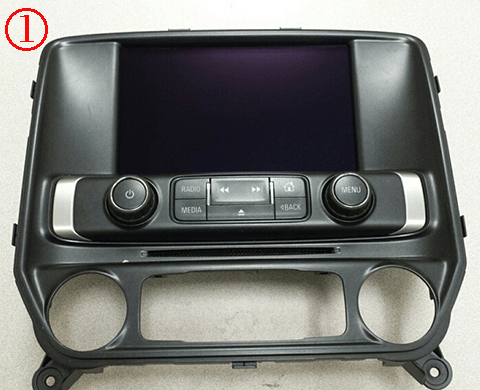

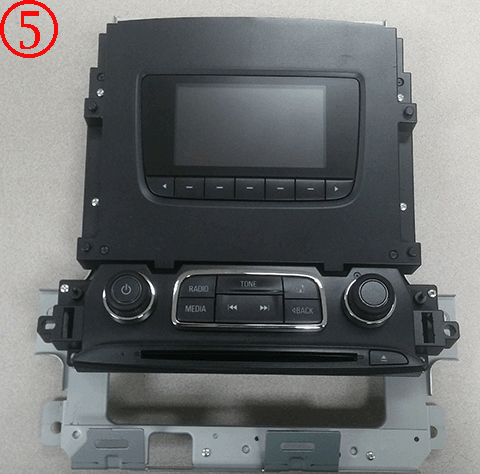

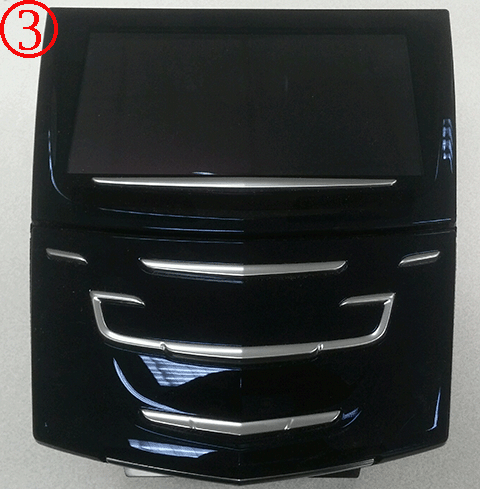

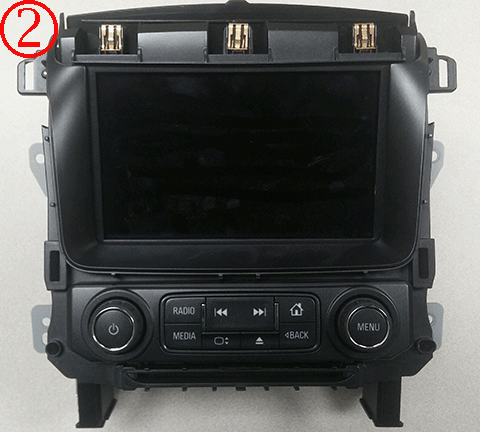

ICS examples (See figure 1-6)
Replacement Labor Code: 3420700 - Use Published Labor Operation Time
Reprogram Labor Code: 2810325 - Use Published Labor Operation Time
Some technicians have replaced the ICS thinking they were replacing the radio. See figure 11 for radio example
OnStar (Telematics Control Module/VCIM)
Replacement Labor Code: 3422790 - Use published Labor Operation time
Reprogram Labor Code: 2810145 - Use published Labor Operation time

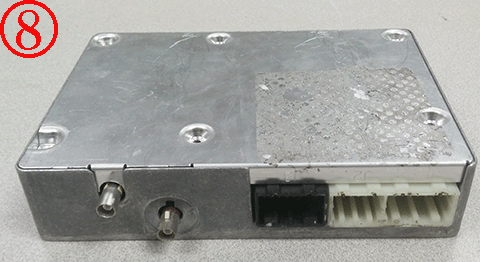

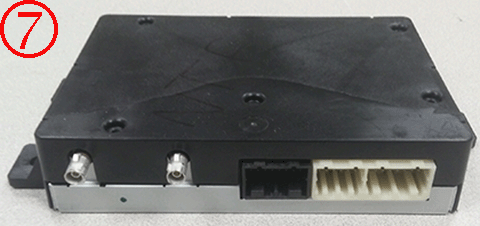

Examples (See figures 7- 8)
Technicians have replaced VCIM's thinking they were replacing the HMI. Please see figures 9-10 for HMI examples
HMI (Human Machine Interface)
Replacement Labor Code: 3421060 - Use published Labor Operation time
Reprogram Labor Code: 2810345 - Use published Labor Operation time

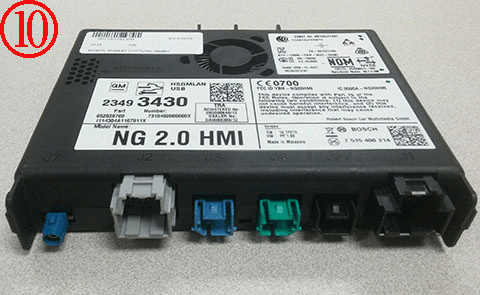

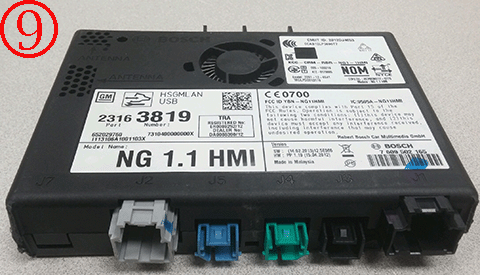

Examples (See figures 9- Non Navigation HMI, 10- Navigation HMI)
Radio/Tuner
Replacement Labor Code: 3420840 - Use published Labor Operation time
Reprogram Labor Code: 2810335 - Use published Labor Operation time

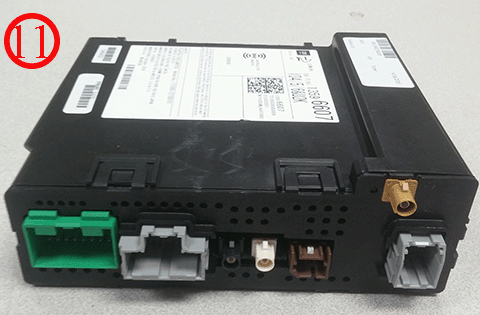

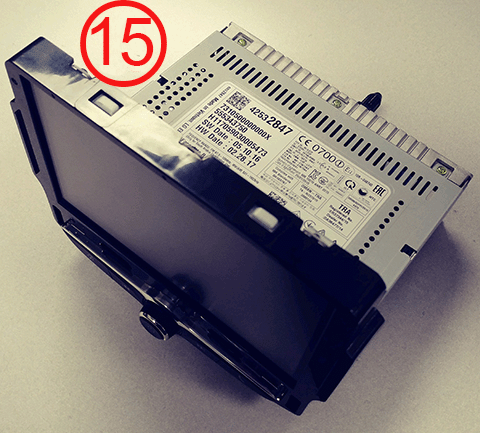

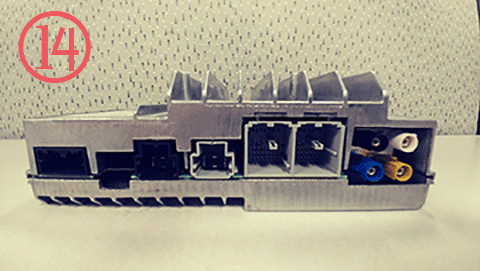

Example (See figure 11, 14 and 15)
Radio Control Assembly (Corvette only)
Replacement Labor Code: 3420700 - Use published Labor Operation time
Reprogram Labor Code: 2810325 - Use published Labor Operation time

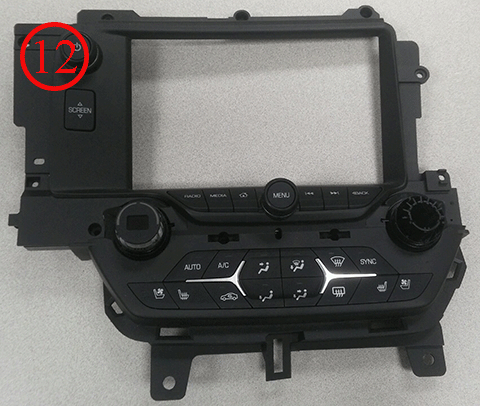

Example (See figure 12)
Driver Information Display (Corvette only)
Replacement Labor Code: 3430990 - Use published Labor Operation time
No Programming Required

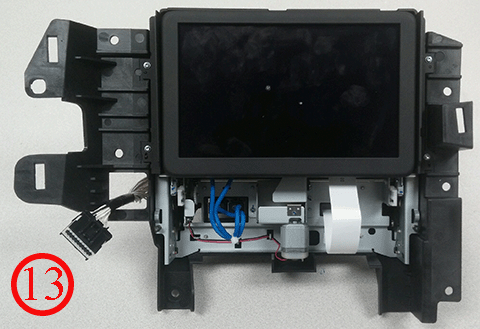

Example (See figure 13)
Additional SI Keywords
CUE install installation intellilink mylink NGI replace replacement
