Installation Procedure

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

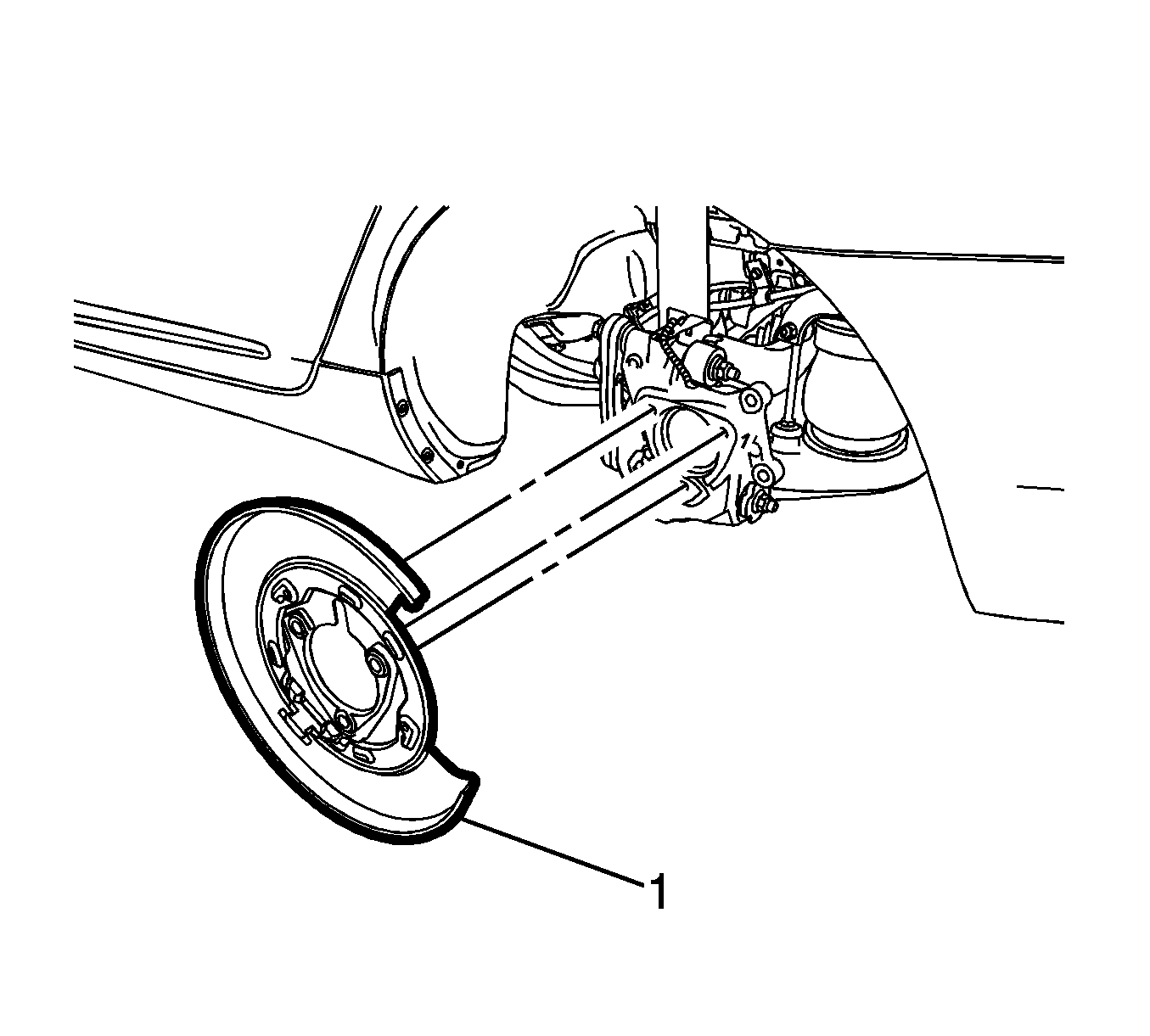

    Fig 1: Rear Brake Backing Plate
    GM2752614Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear brake backing plate (1).
  2. Install the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (FWD) , Rear Wheel Bearing and Hub Replacement (AWD) .
  3. Install the parking brake shoes. Refer to Parking Brake Shoe Replacement .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) , Tire and Wheel Removal and Installation (With J55) .
