Installation Procedure

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the accelerator pedal position sensor. Refer to Accelerator Pedal Position Sensor Replacement .
Install the brake pedal assembly.

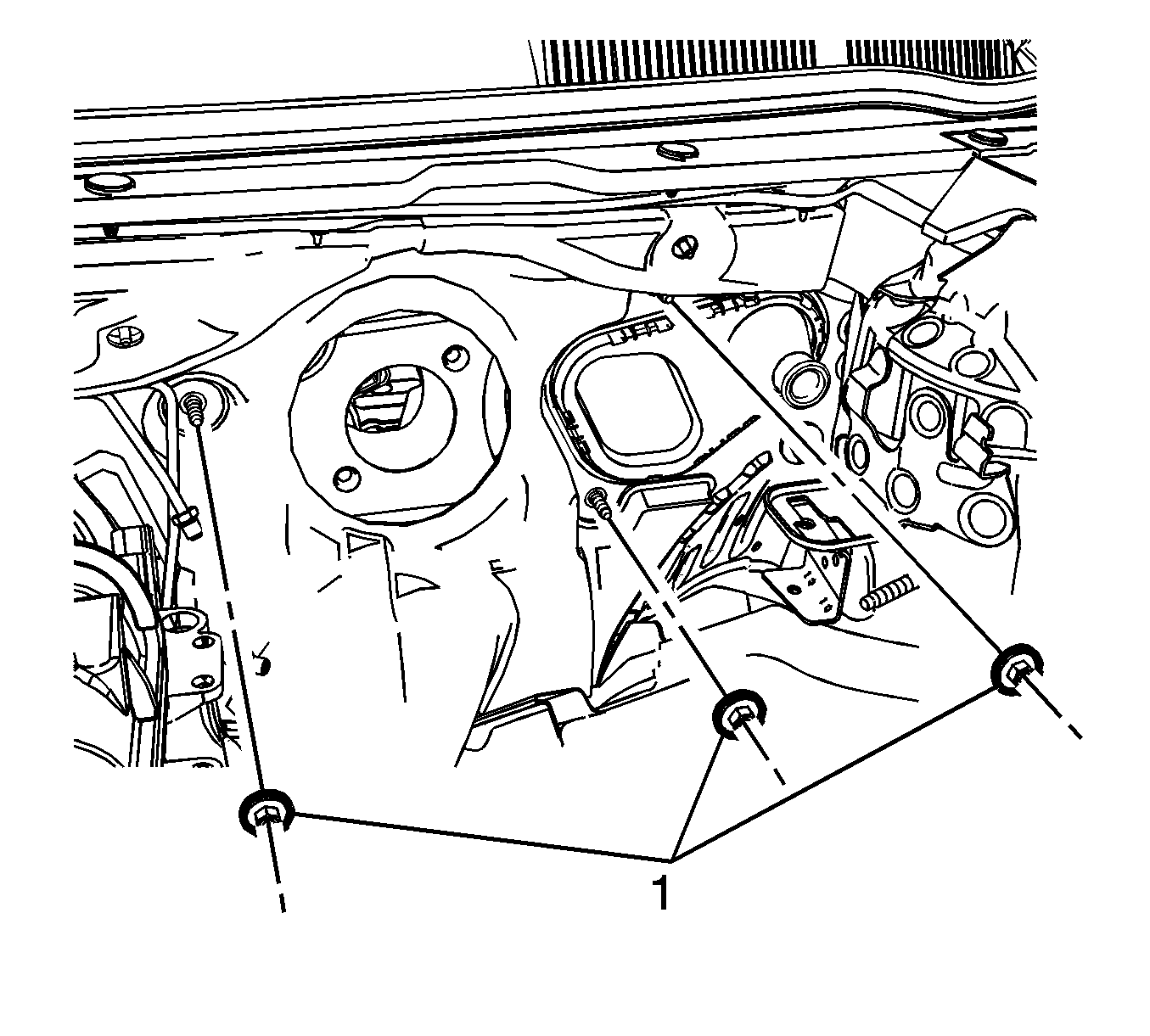

Fig 1: Brake Pedal Assembly Nuts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the brake pedal assembly nuts (1) and tighten to 22 (16 lb ft).
Install the power vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .
Install the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .

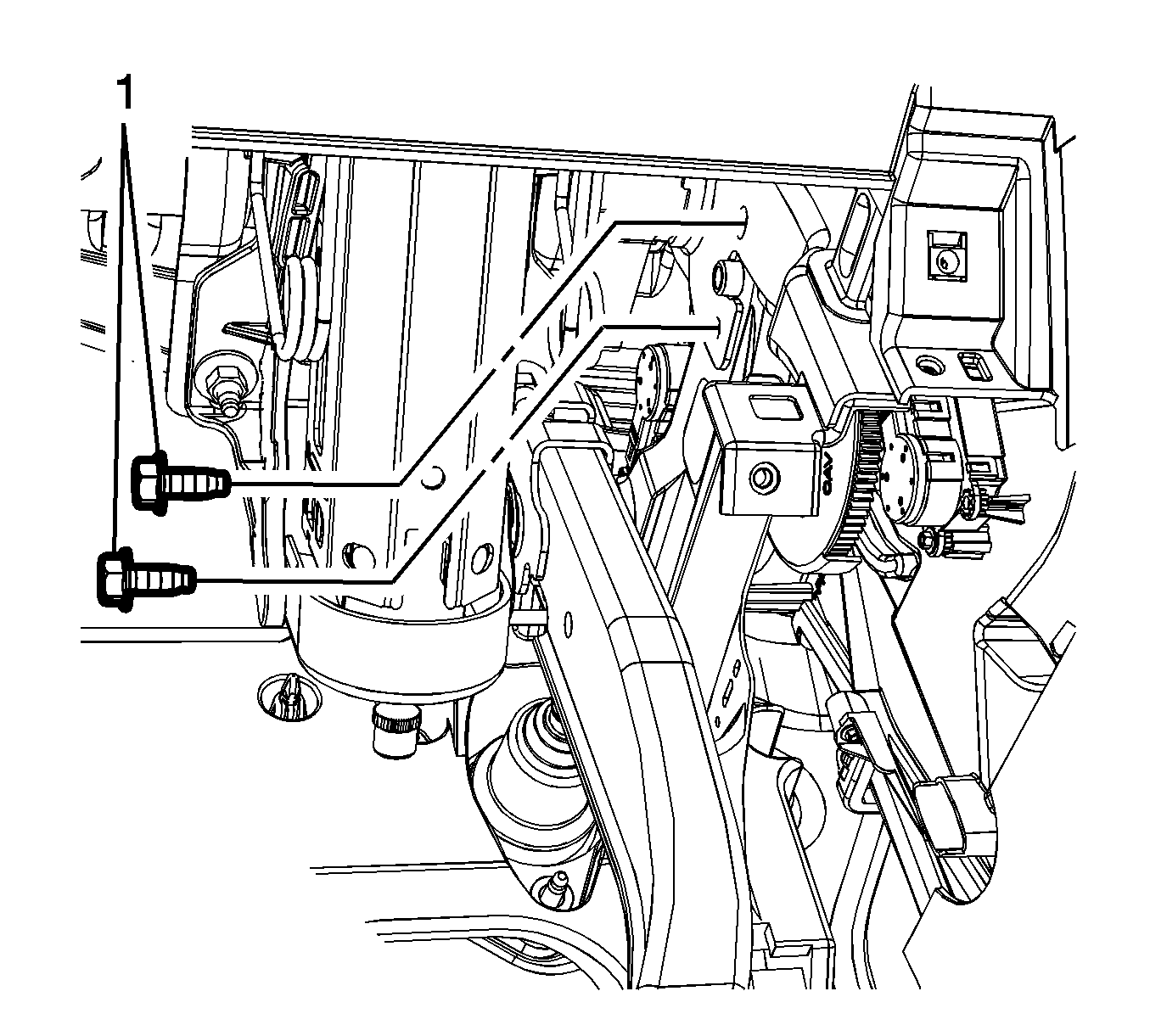

Fig 2: Locating Upper Brake Pedal Assembly Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the right upper brake and accelerator pedal assembly bolts (1) and tighten to 22 (16 lb ft).

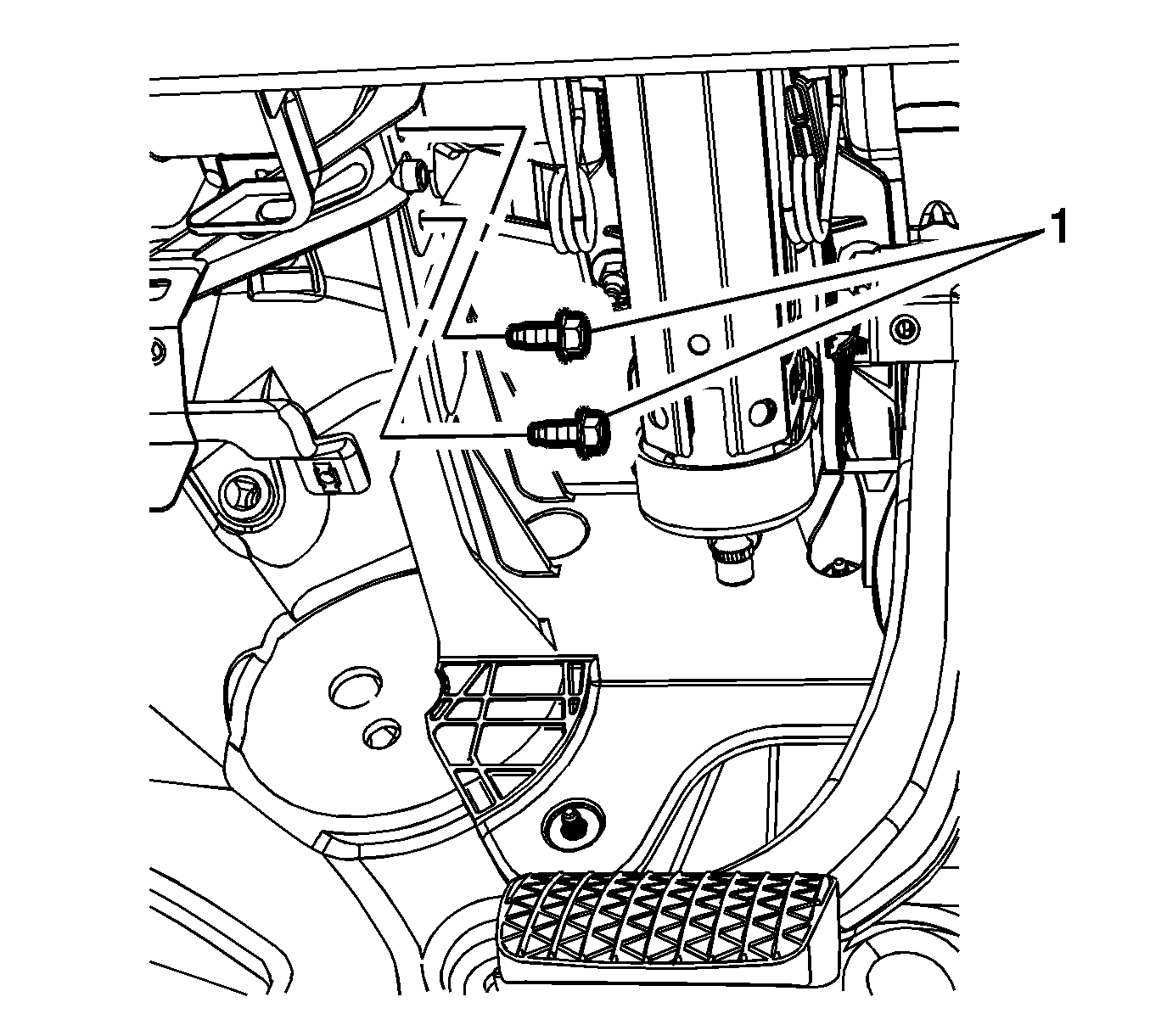

Fig 3: Upper Brake Pedal Assembly Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the left upper brake and accelerator pedal assembly bolts (1) and tighten to 22 (16 lb ft).

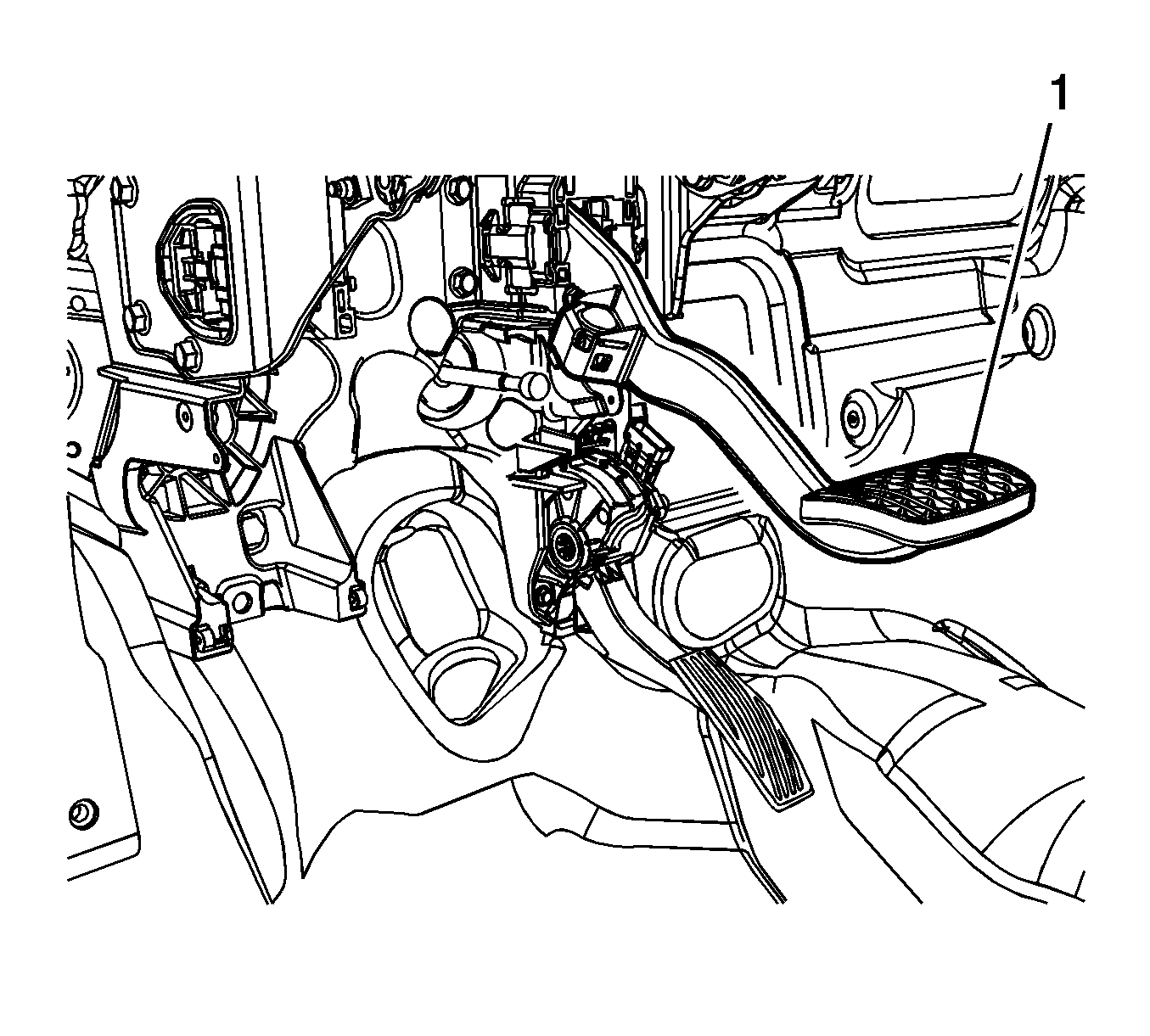

Fig 4: Brake Pedal

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install a new power vacuum brake booster pushrod retainer.

Install a new power vacuum brake booster pushrod retainer to the power vacuum brake booster pushrod.

NOTE:

Ensure the power vacuum brake booster pushrod retainer is fully seated in the brake pedal arm.

Install the power vacuum brake booster pushrod retainer to the brake pedal (1).
Connect the accelerator pedal position sensor electrical connector.
Install the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
