Rear Toe Adjustment

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

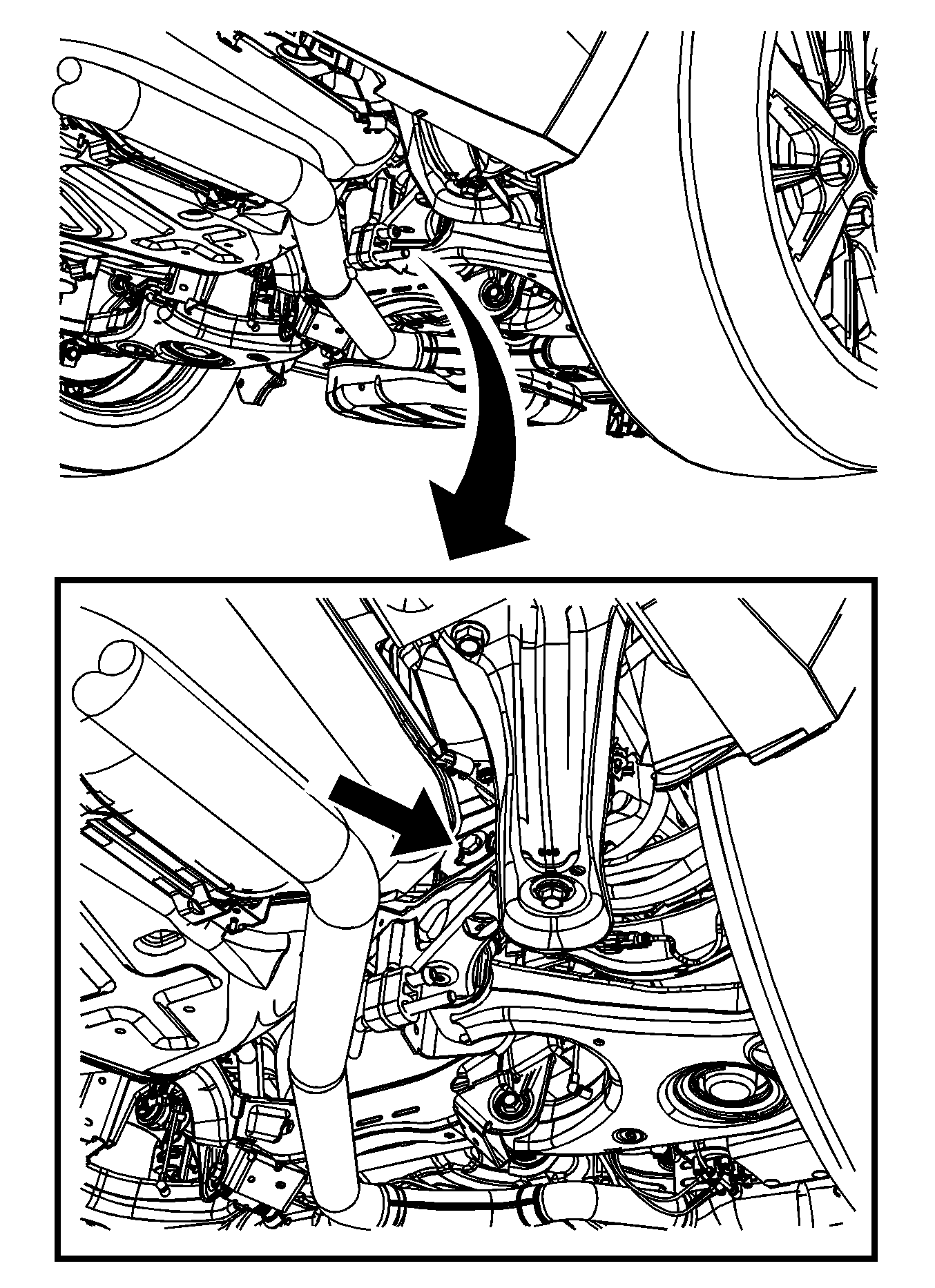

    Fig 1: Rear Toe Angle Adjustment
    GM2966161Courtesy of GENERAL MOTORS COMPANY
  1. Measure the alignment on an alignment rack. Refer to Wheel Alignment Measurement .
  2. If adjustment is necessary, loosen rear cam nut.
  3. Rotate the cam bolt in order to adjust the toe angle. Refer to Wheel Alignment Specifications .
  4. Hand tighten the cam nut, but do not tighten the nut to the specification yet.
  5. Re-inspect the rear toe angle and adjust as necessary.
    6. CAUTION:

    Refer to Fastener Caution .

  6. Hold the cam bolt and tighten the cam nut.

    Tighten

    150 N.m (111 lb ft)

  7. Repeat the procedure for the other rear wheel.
  8. Lower the vehicle.
