Rear Side Door Locking Rod Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

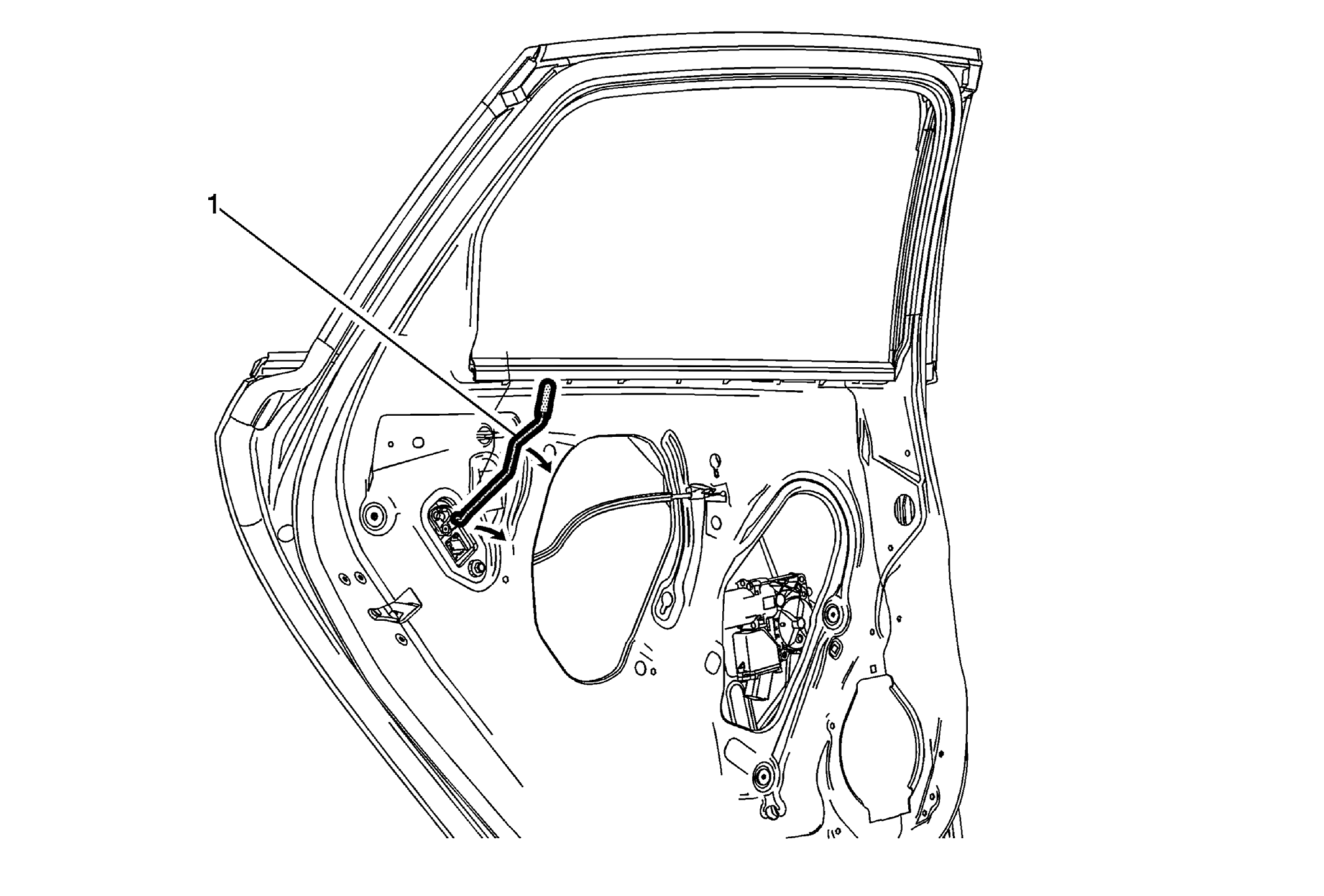

Fig 1: Rear Side Door Locking Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Locking Rod Procedure Release the locking rod from the retainer. Turn the locking rod down, pull upward and turn releasing it from the latch. NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Locking Rod

Procedure

Release the locking rod from the retainer.
Turn the locking rod down, pull upward and turn releasing it from the latch.

NOTE:

Ensure that the door lock system operates properly before installing the trim.
