Interior Lamp and Multifunction Switch Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

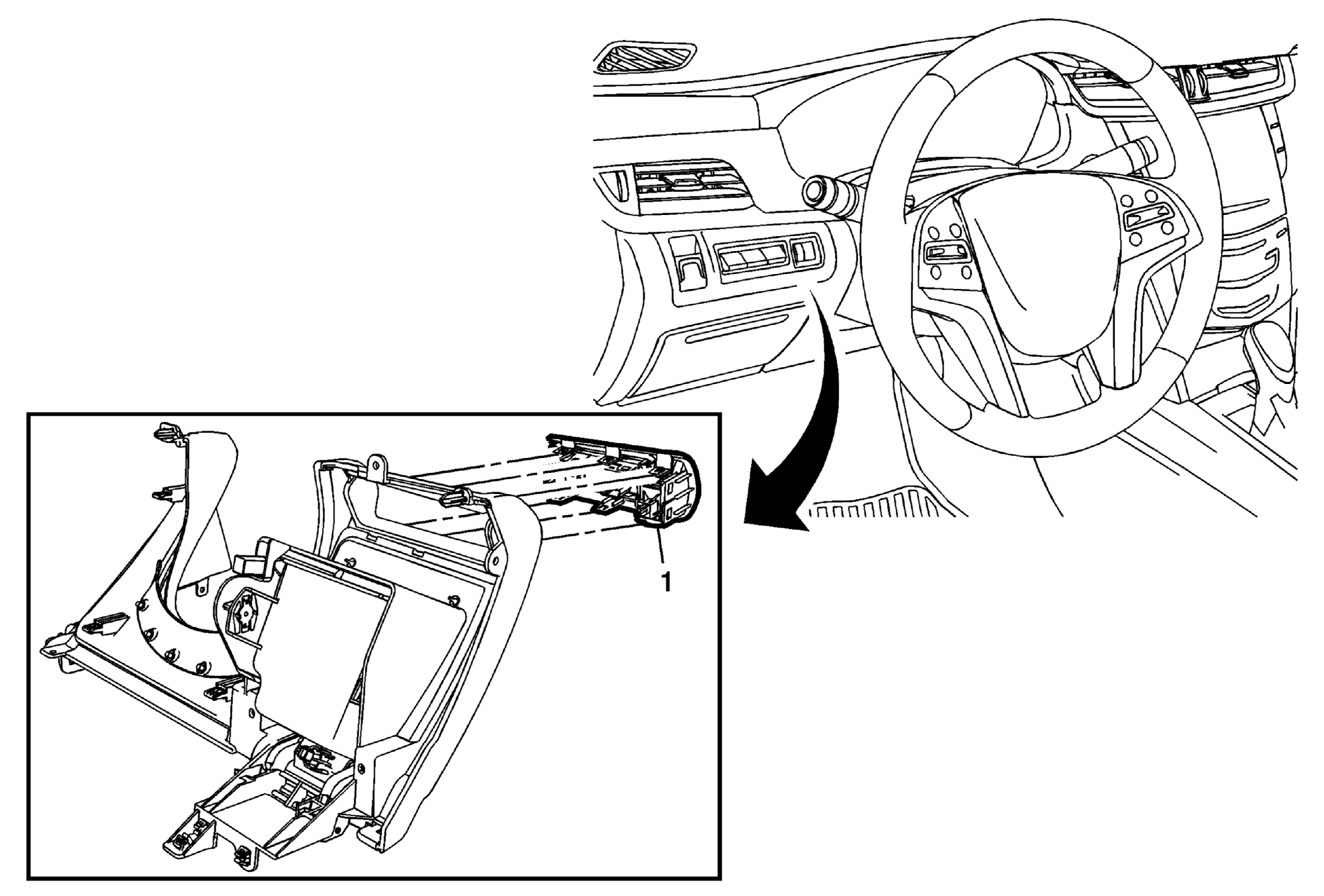

Fig 1: Interior Lamp and Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel driver knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1	Interior Lamp and Multifunction Switch Procedure Disconnect the electrical connections. Release tabs on switch to remove from the bolster.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel driver knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

Interior Lamp and Multifunction Switch

Procedure

Disconnect the electrical connections.
Release tabs on switch to remove from the bolster.
