Backup Lamp Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

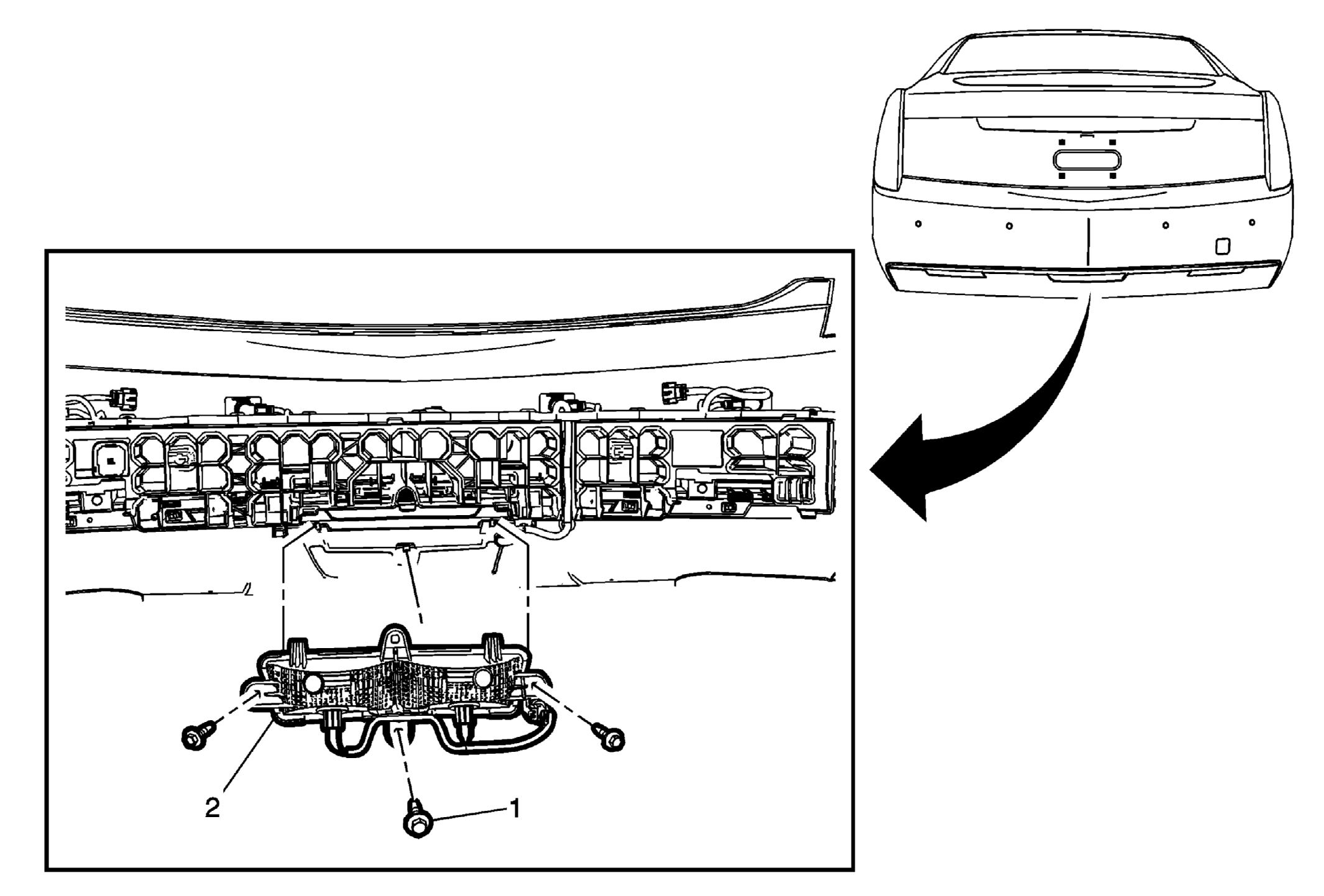

Fig 1: Backup Lamp & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Backup Lamp Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Torque 2.5 (22 lb in)
2	Backup Lamp NOTE: Disconnect the electrical connector and replace the bulb as needed.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Backup Lamp Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Torque
2.5 (22 lb in)

Backup Lamp

NOTE:

Disconnect the electrical connector and replace the bulb as needed.
