Battery Negative Cable Disconnection and Connection

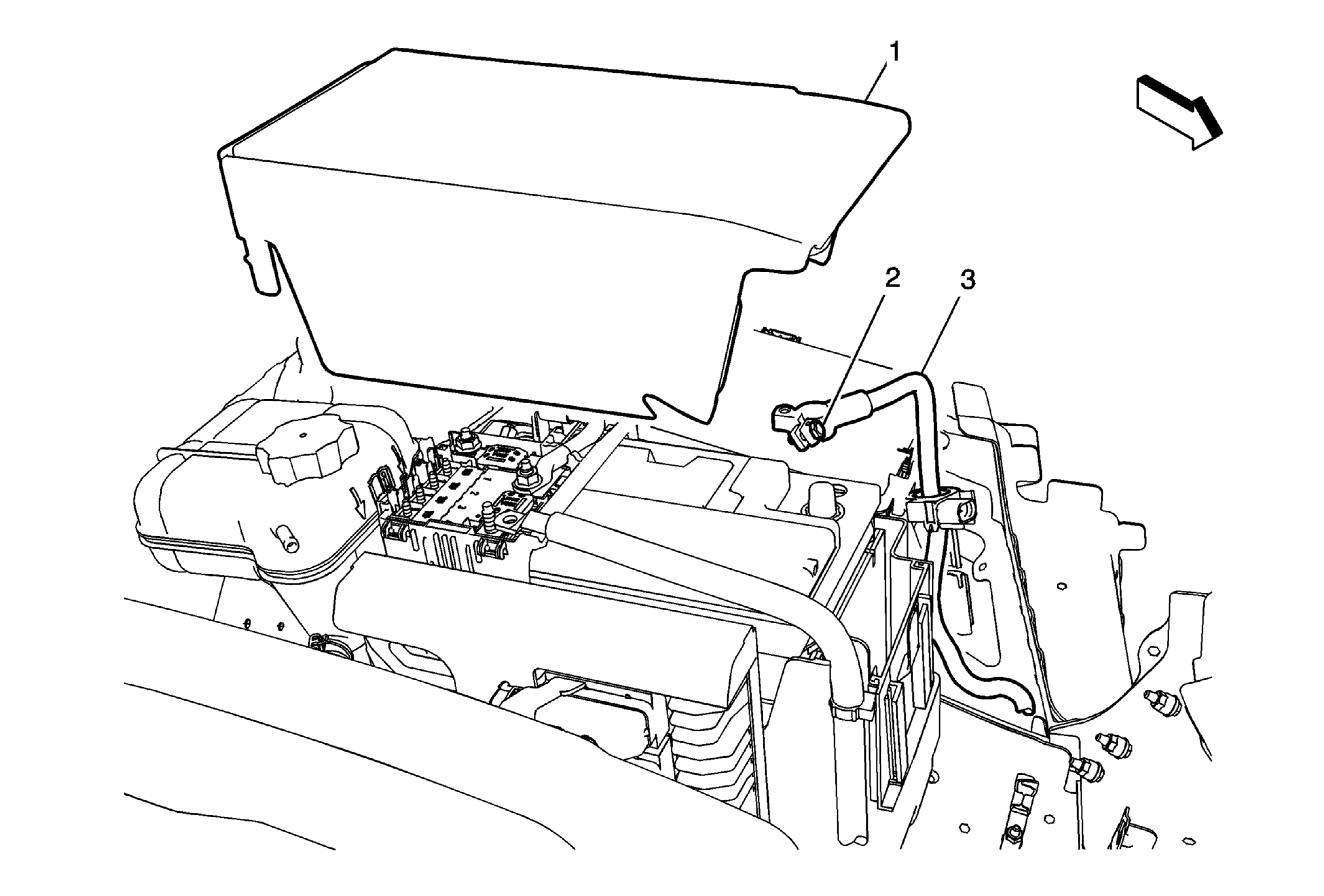

Fig 1: View Of Battery Negative Cable & Cover
GM2195940Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable Disconnection and Connection

Callout Component Name

Preliminary Procedures

  1. Turn the ignition OFF.
  2. Record radio and engine oil life resets.
1 Battery Cover
2 Battery Negative Cable Fastener
WARNING:

Refer to Battery Disconnect Warning .

CAUTION:

Refer to Fastener Caution .


Tighten
4.5 N.m (40 lb in)
3 Battery Negative Cable
