Parking Brake Switch Replacement

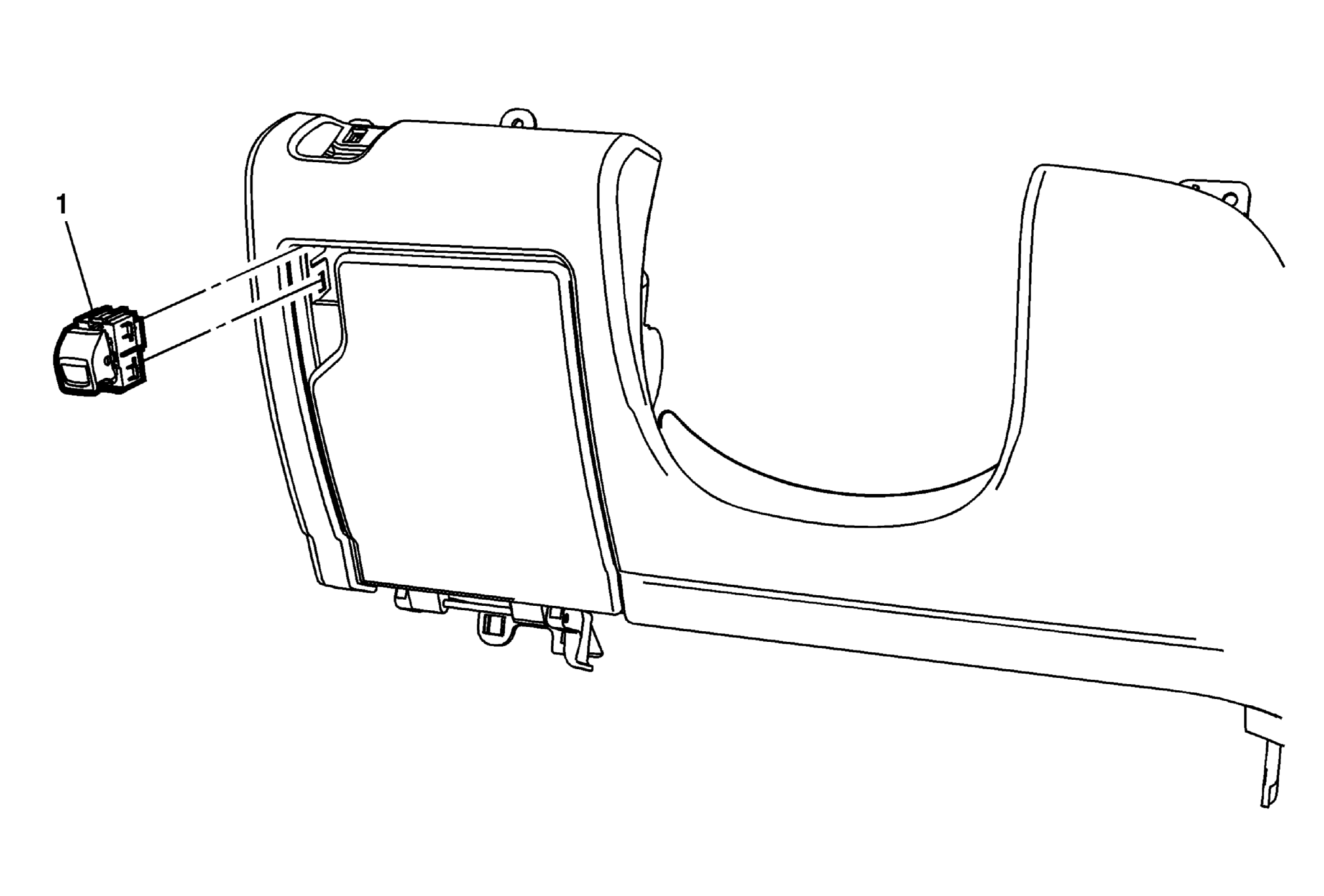

Fig 1: Parking Brake Switch
GM2760578Courtesy of GENERAL MOTORS COMPANY
Parking Brake Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel driver knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Parking Brake Switch
Procedure
Release tabs on switch to remove from the bolster.
