Removal Procedure

WARNING:

Refer to Brake Dust Warning .

  1. Disable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Disabling .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) , Tire and Wheel Removal and Installation (With J55) .
  4. Remove the rear disc brake rotor. Refer to Rear Brake Rotor Replacement (J64) , Rear Brake Rotor Replacement (J55) .

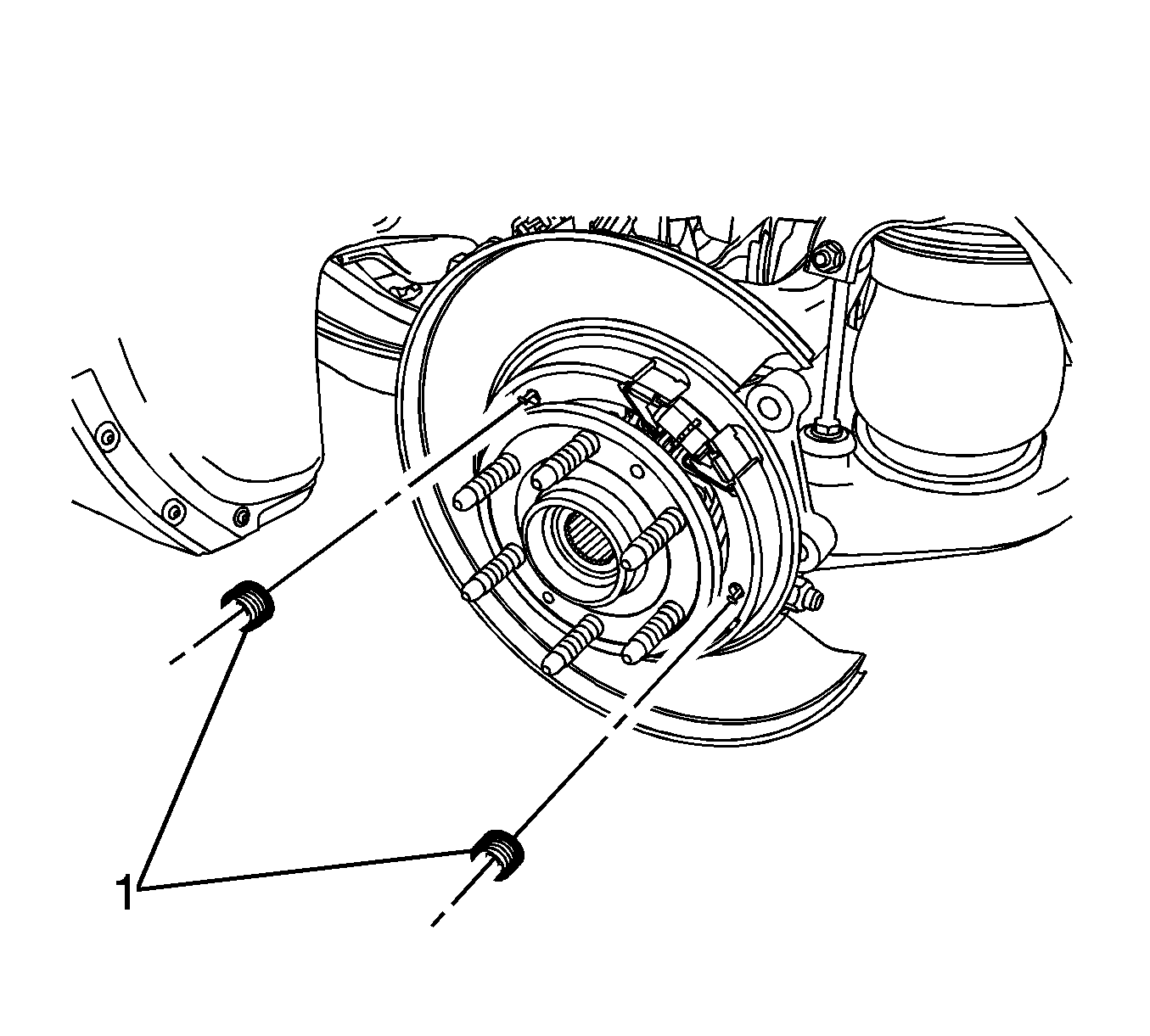

    5. Fig 1: Parking Brake Shoe Hold Down Springs
    GM2752507Courtesy of GENERAL MOTORS COMPANY
  5. Compress the park brake shoe hold down springs (1) and rotate the pins 1/4 turn to remove the hold down springs.
  6. Remove the hold down spring pins.

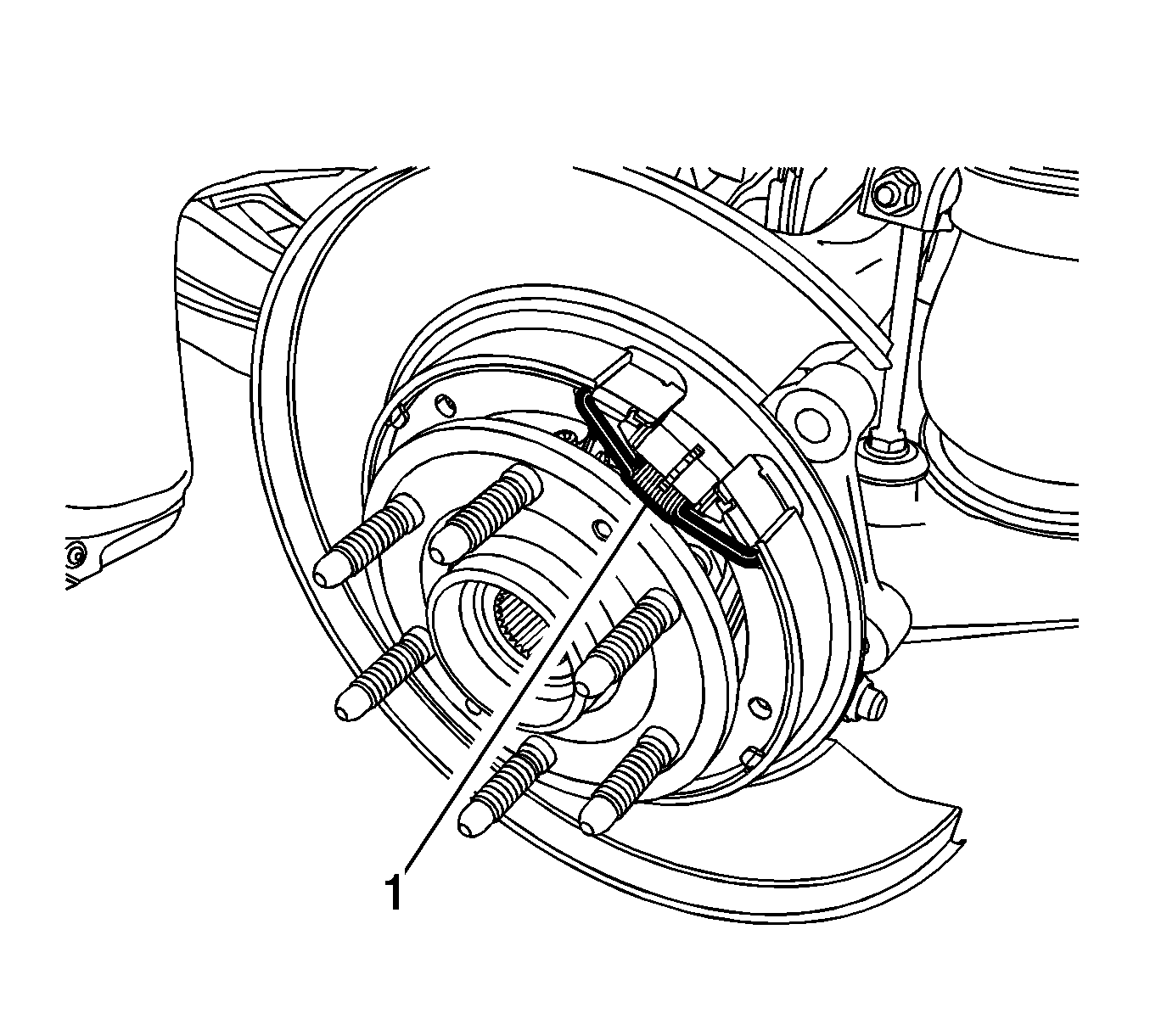

    7. Fig 2: Parking Brake Shoe Upper Return Spring
    GM2752509Courtesy of GENERAL MOTORS COMPANY
  7. Remove the park brake shoe upper return spring (1).

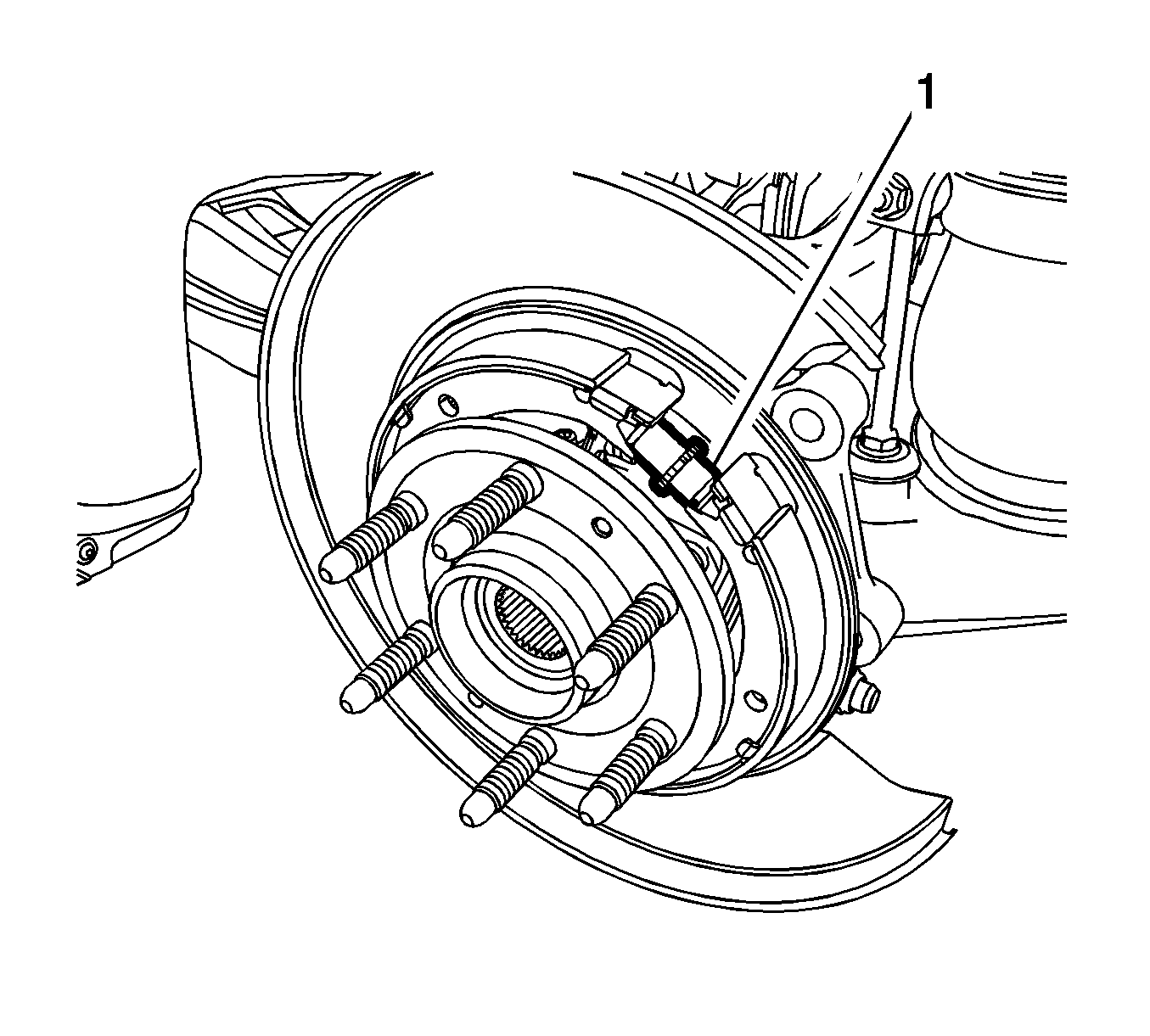

    8. Fig 3: Parking Brake Shoe Adjuster
    GM2752511Courtesy of GENERAL MOTORS COMPANY
  8. Remove the park brake shoe adjuster (1).

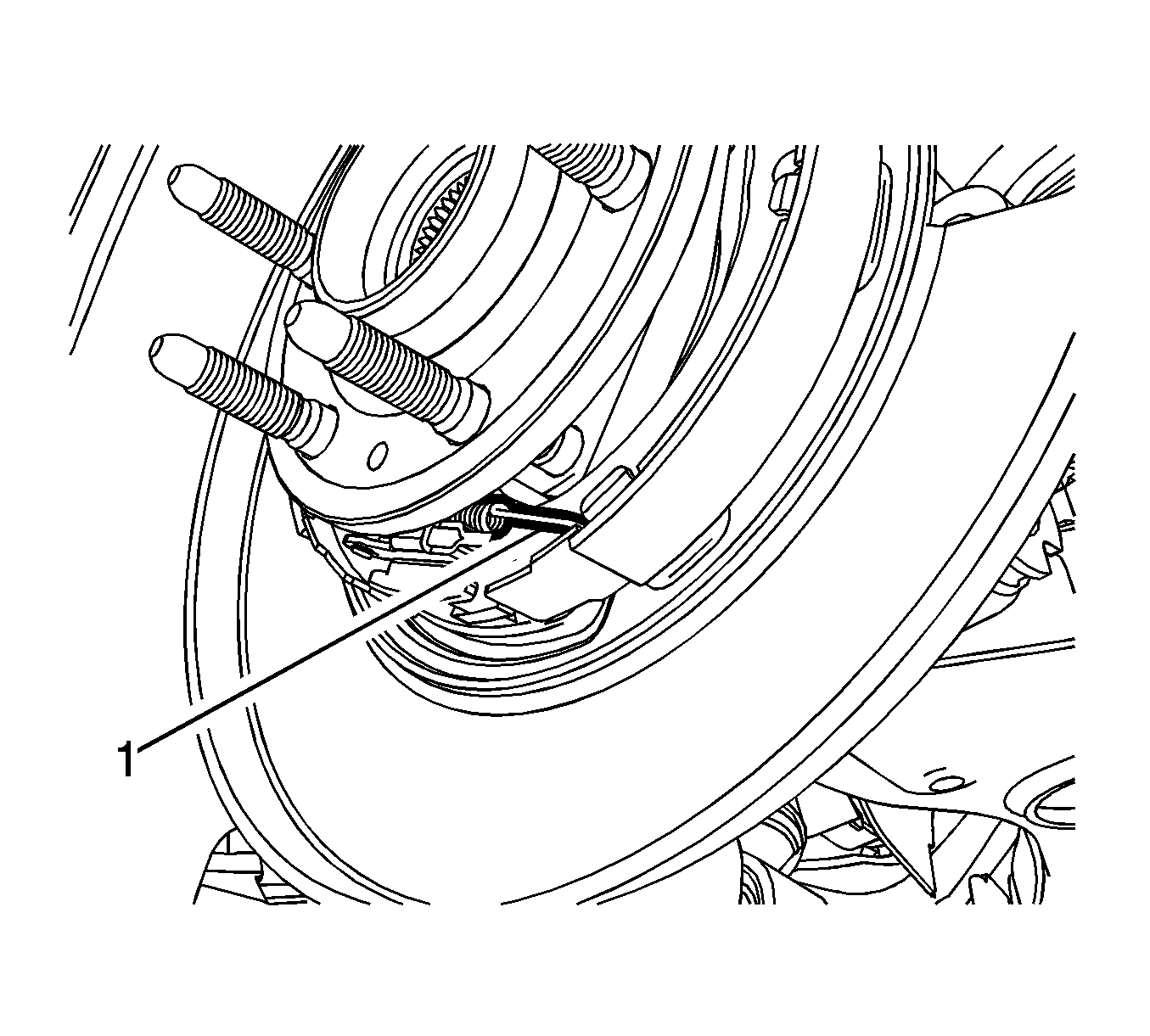

    9. Fig 4: Parking Brake Shoe Lower Return Spring
    GM2752514Courtesy of GENERAL MOTORS COMPANY
  9. Remove the park brake shoe lower return spring (1).
  10. Inspect the park brake hardware for damage or excessive corrosion and replace, if necessary.
