Outside Rearview Mirror Replacement

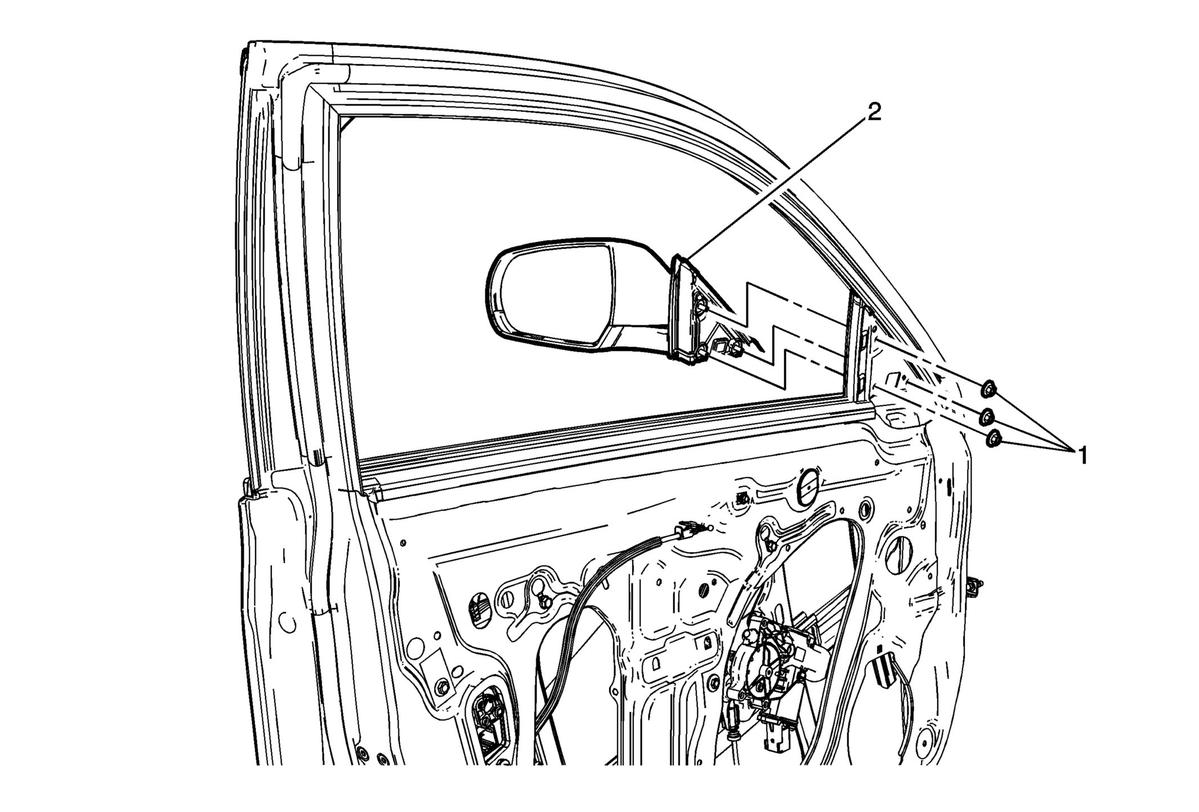

Fig 1: Outside Rearview Mirror & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door upper trim panel. Refer to Front Side Door Trim Replacement . Remove the front side door garnish molding. Refer to Front Side Door Garnish Molding Replacement .
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Open the front side door to the full open position to view the nut. Disconnect the electrical connectors from the mirror. NOTE: When replacing the outside rearview mirror, transfer the insulator pad to the new mirror assembly. Tighten 10 (89 lb in)
2	Outside Rearview Mirror NOTE: Inspect the outside mirror for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Remove the front side door upper trim panel. Refer to Front Side Door Trim Replacement .
Remove the front side door garnish molding. Refer to Front Side Door Garnish Molding Replacement .

Outside Rearview Mirror Nut (Qty: 3)

CAUTION:

Procedures

NOTE:

When replacing the outside rearview mirror, transfer the insulator pad to the new mirror assembly.

Tighten
10 (89 lb in)

Outside Rearview Mirror

NOTE:

Inspect the outside mirror for proper operation before installing the door trim.
