Front Compartment Air Deflector Replacement (Left)

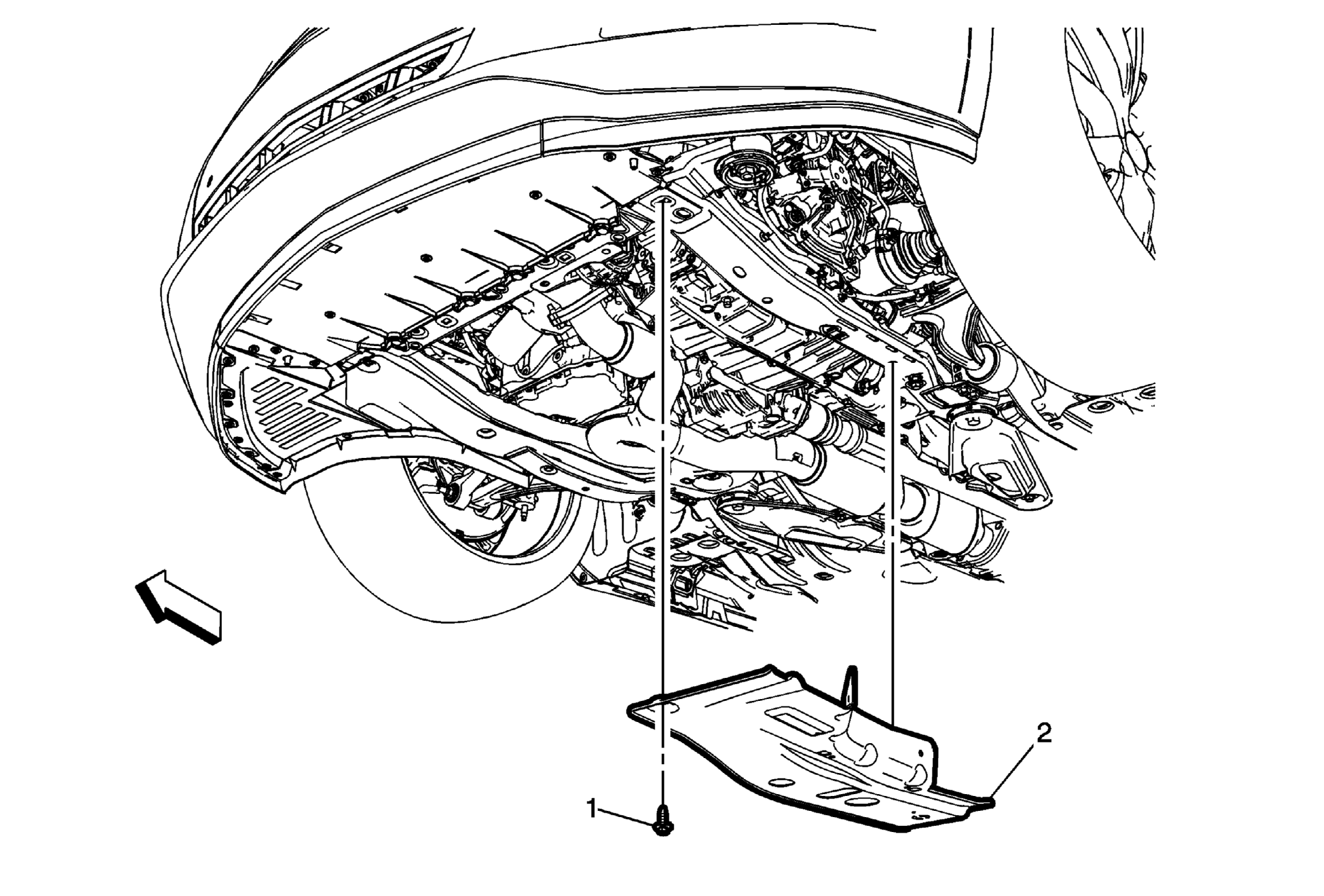

Fig 1: Front Compartment Air Deflector (Left)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement . Remove the left rocker panel air deflector. Refer to Rocker Panel Air Deflector Replacement - Left Side . Remove the drivetrain and front suspension frame transmission protector. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .
1	Front Compartment Air Deflector - Left Fastener CAUTION: Refer to Fastener Caution . Tighten 3 (27 lb in)
2	Front Compartment Air Deflector - Left

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
Remove the left rocker panel air deflector. Refer to Rocker Panel Air Deflector Replacement - Left Side .
Remove the drivetrain and front suspension frame transmission protector. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .

Front Compartment Air Deflector - Left Fastener

CAUTION:

Tighten
3 (27 lb in)

Front Compartment Air Deflector - Left
