Power, Ground, Serial Data and Side Object Detection (UFG/UFT)

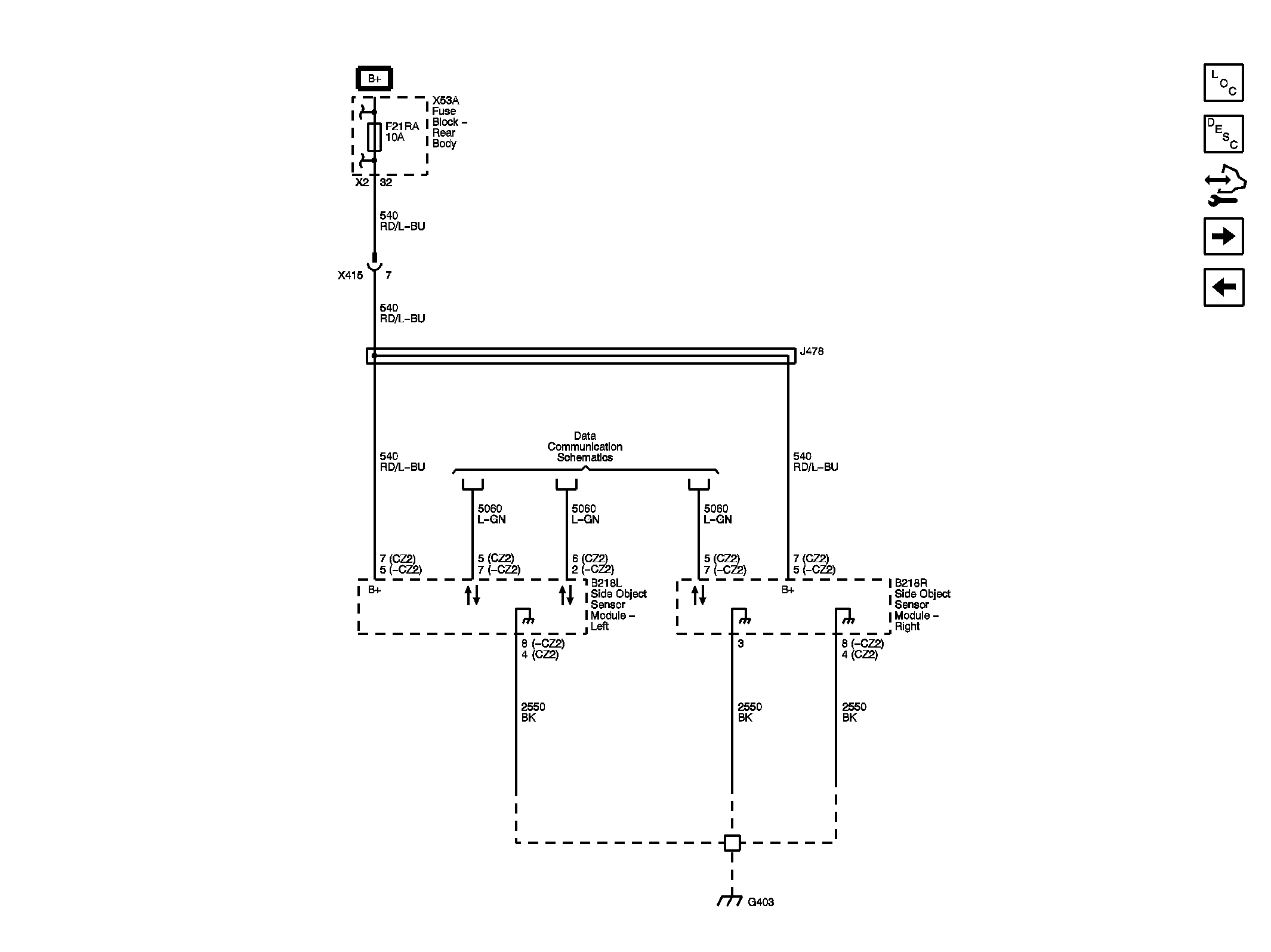

Fig 1: Power, Ground, Serial Data and Side Object Detection (UFG/UFT)

GM3254395

Courtesy of GENERAL MOTORS COMPANY
