Exhaust Manifold Lower Heat Shield Replacement
Exhaust Manifold Lower Heat Shield Replacement

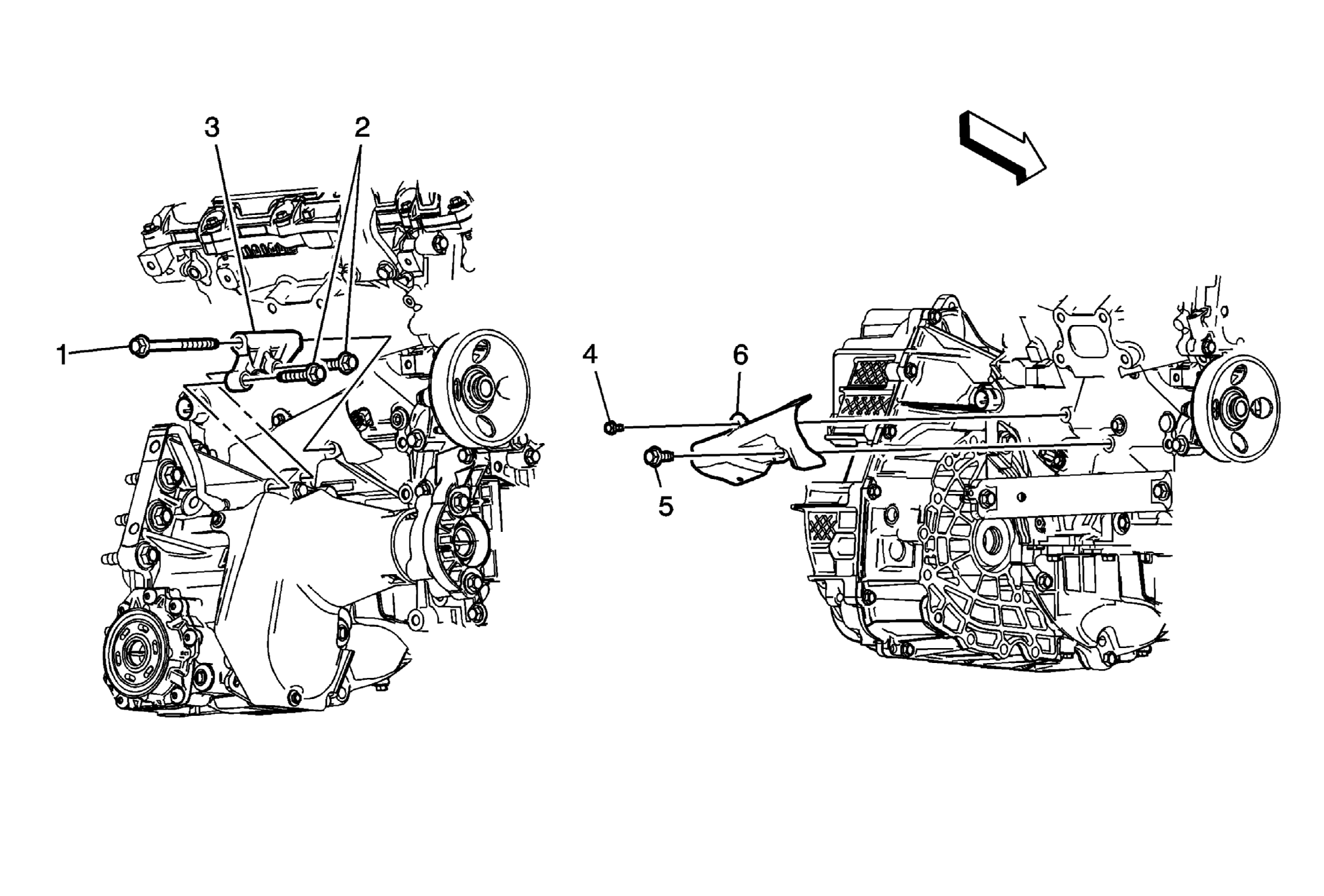

| Callout | Component Name |
|---|---|
| Preliminary Procedure If equipped with AWD, remove the right catalytic converter. Refer to Catalytic Converter Replacement - Right Side (Rear) |
|
| 1 | Transmission Brace Bolt (MH4)
WARNING:
Refer to Exhaust Service Warning .
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Transmission Brace Bolt (Qty: 2) Tighten 58 N.m (43 lb ft) |
| 3 | Transmission Brace (MH4) |
| 4 | Lower Heat Shield Bolt Tighten 9 N.m (80 lb in) |
| 5 | Lower Heat Shield Bolt Tighten 58 N.m (43 lb ft) |
| 6 | Exhaust Manifold Lower Heat Shield (MH2 Shown) |
