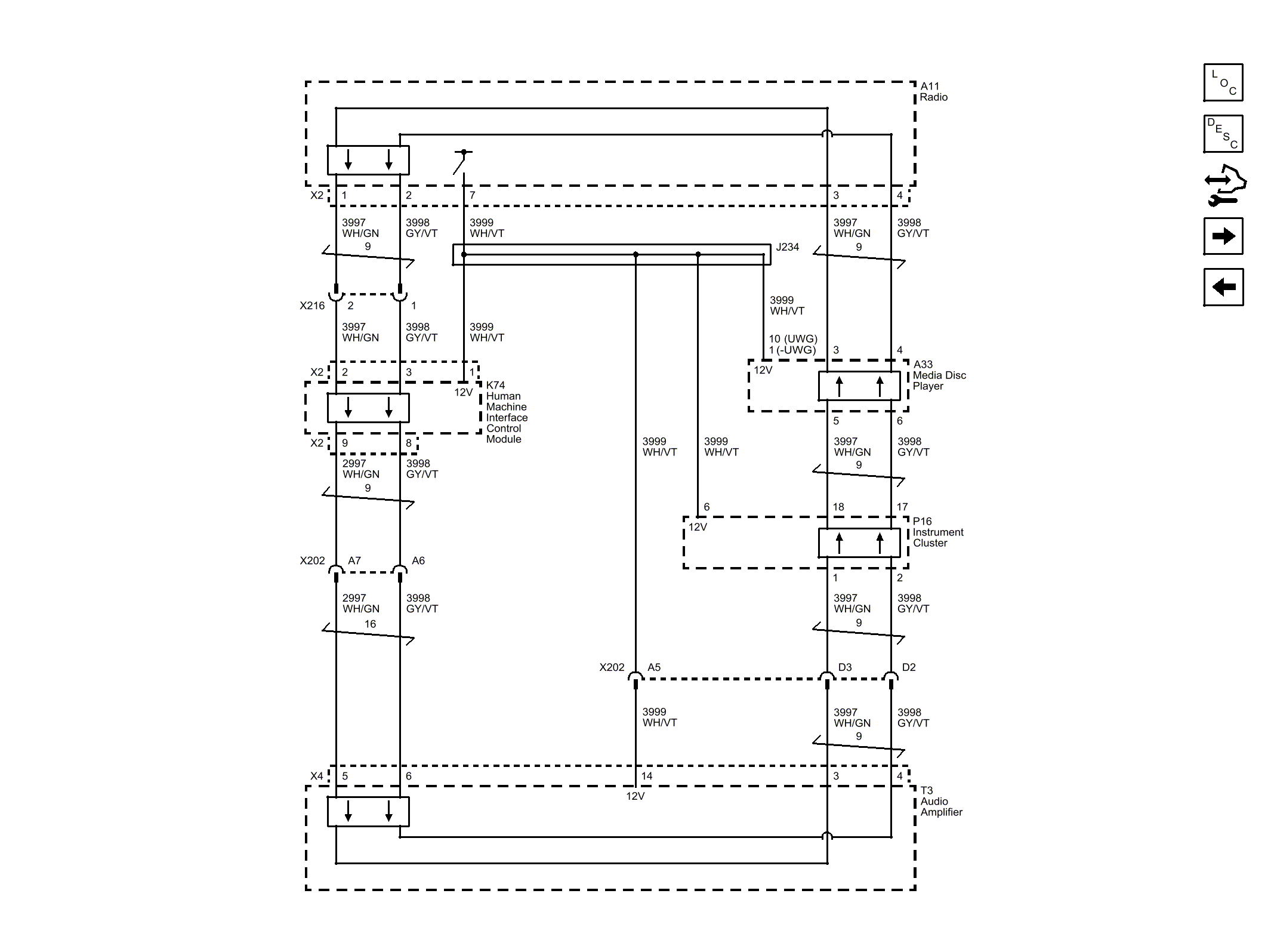

Home >> Cadillac >> 2014 >> SRX Luxury, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Most 50 Bus
