Installation Procedure

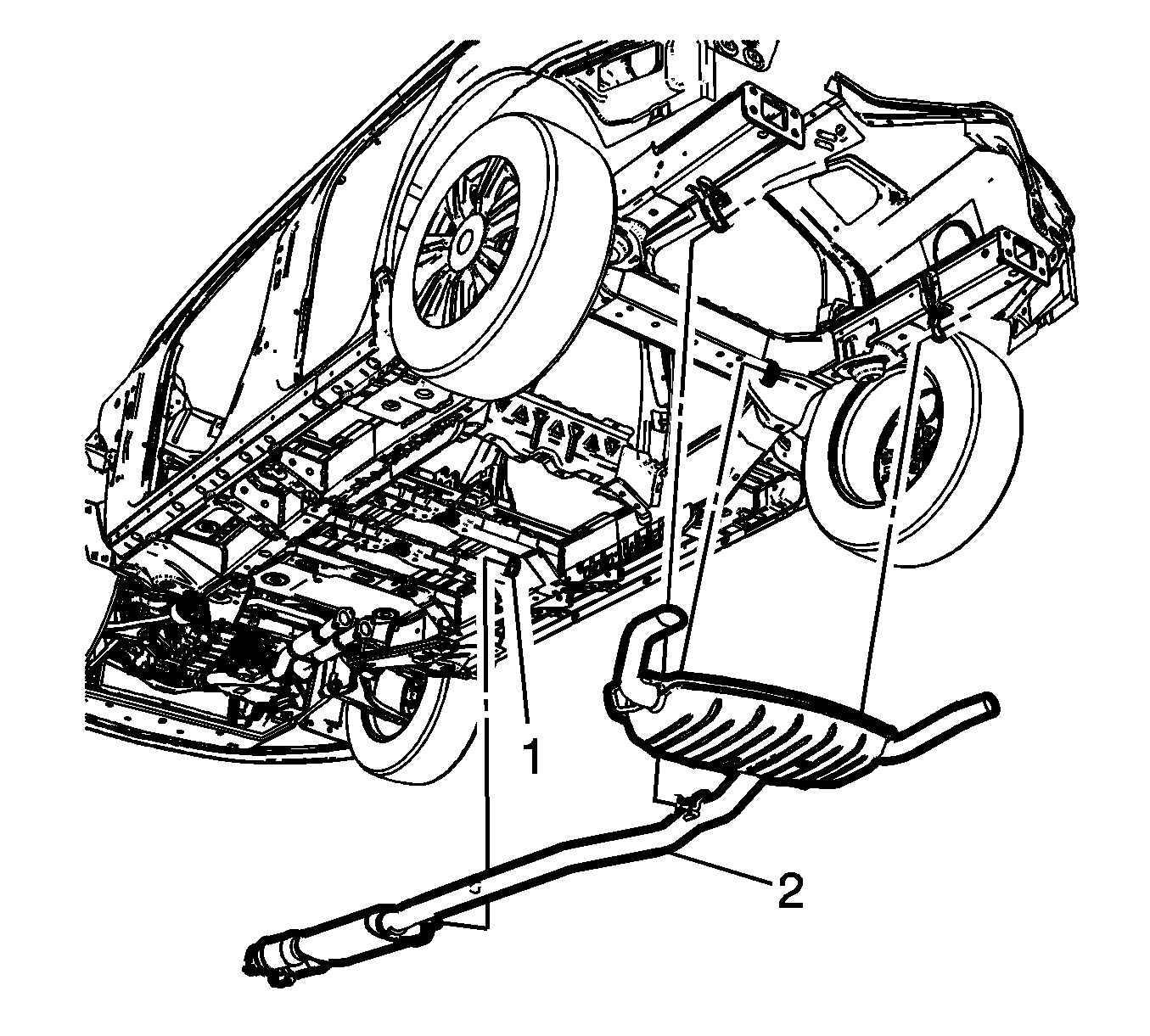

    Fig 1: Muffler Assembly
    GM2666182Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust muffler (2) into the exhaust isolators (1).

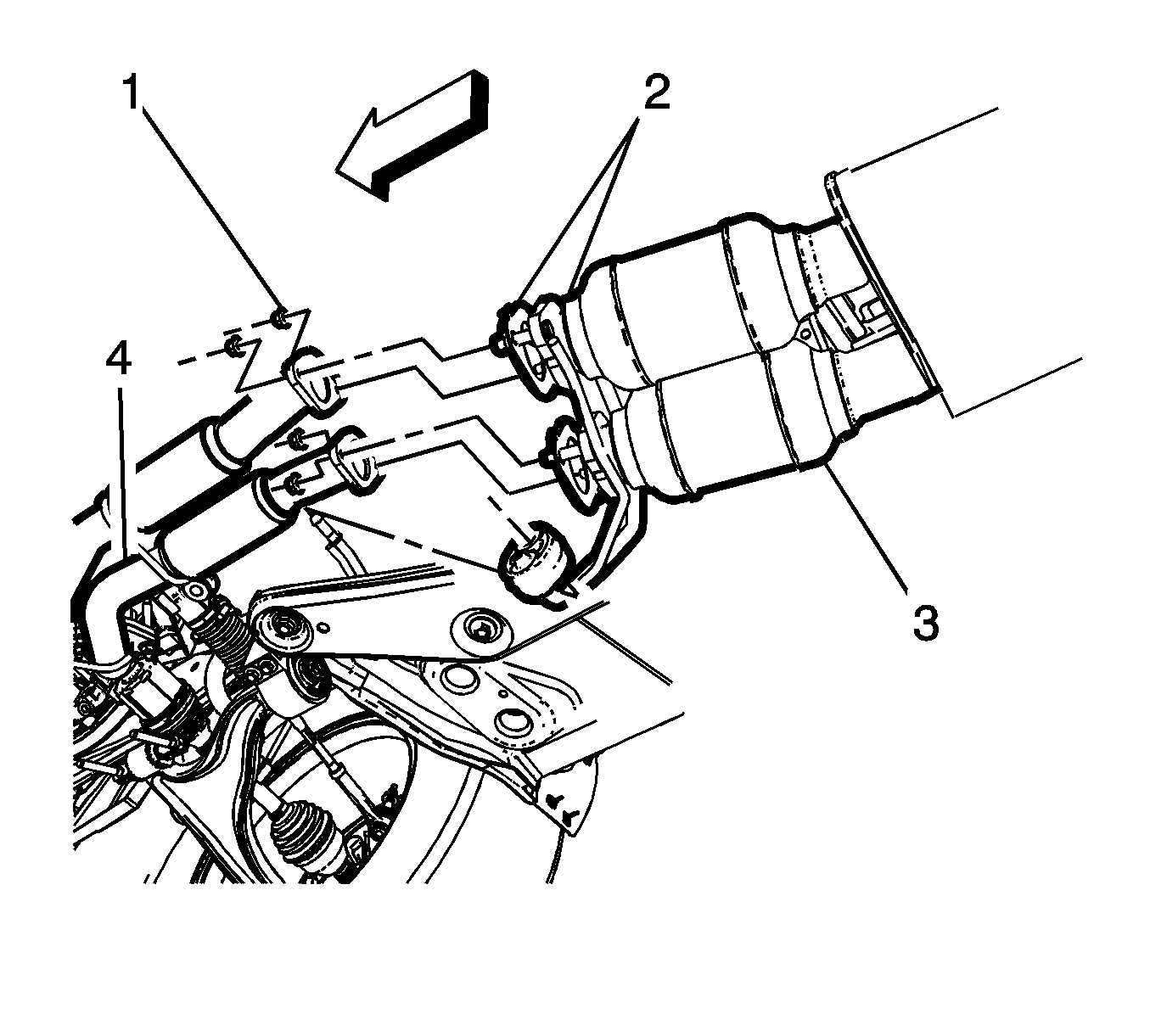

    2. Fig 2: Muffler Fasteners
    GM2666185Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust muffler (3) into the front catalytic converter (4) with NEW gaskets (2) and tighten the fasteners (1) to 46 N.m (34 lb ft) .
  3. Lower the vehicle.
  4. Start the engine and check for exhaust leaks.
