Installation Procedure

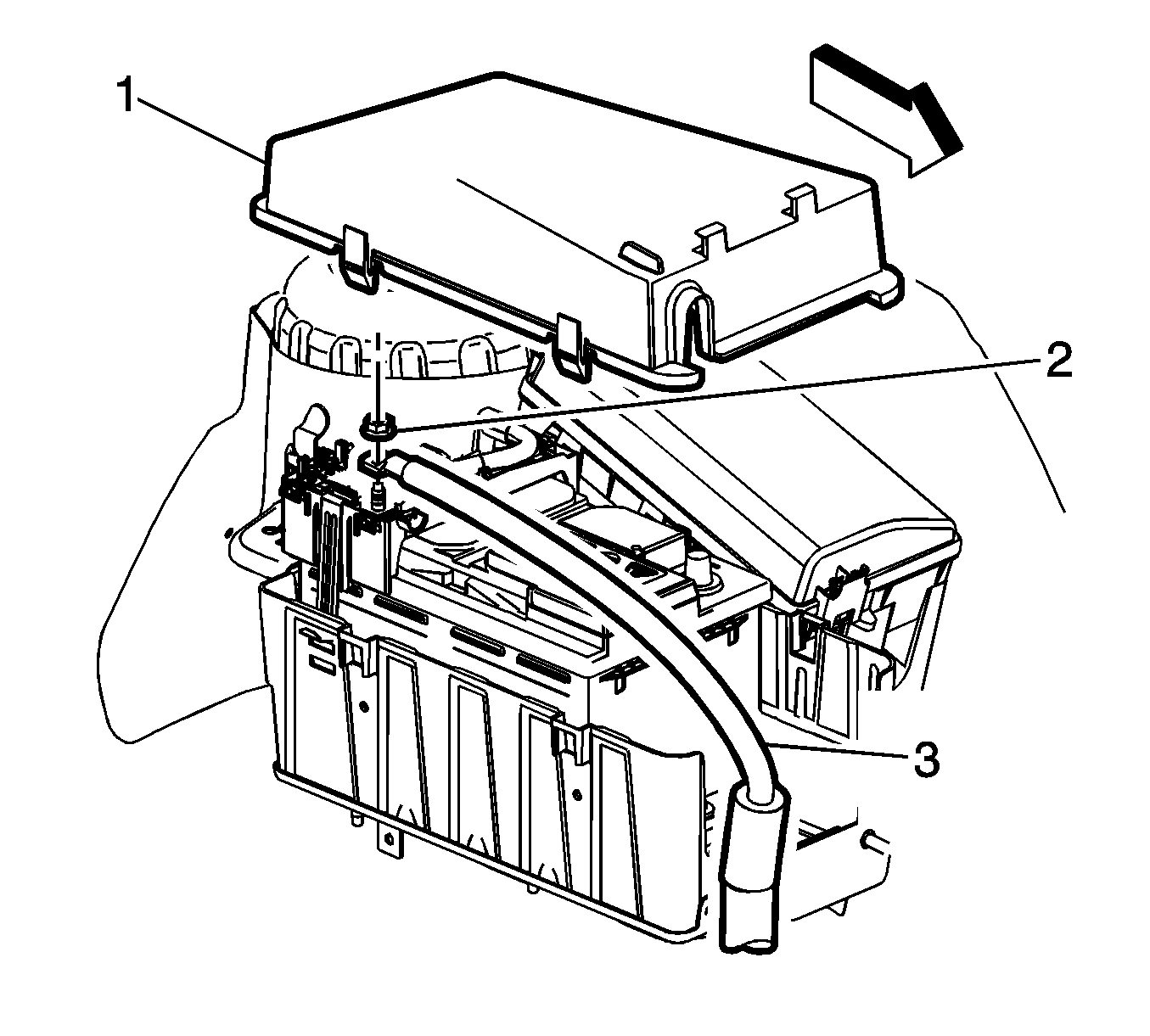

    Fig 1: View Of Battery Fuse Block Cover
    GM2235660Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the auxiliary battery positive cable nut (2) to the fuse block.Tighten to 15 N.m (11 lb ft).

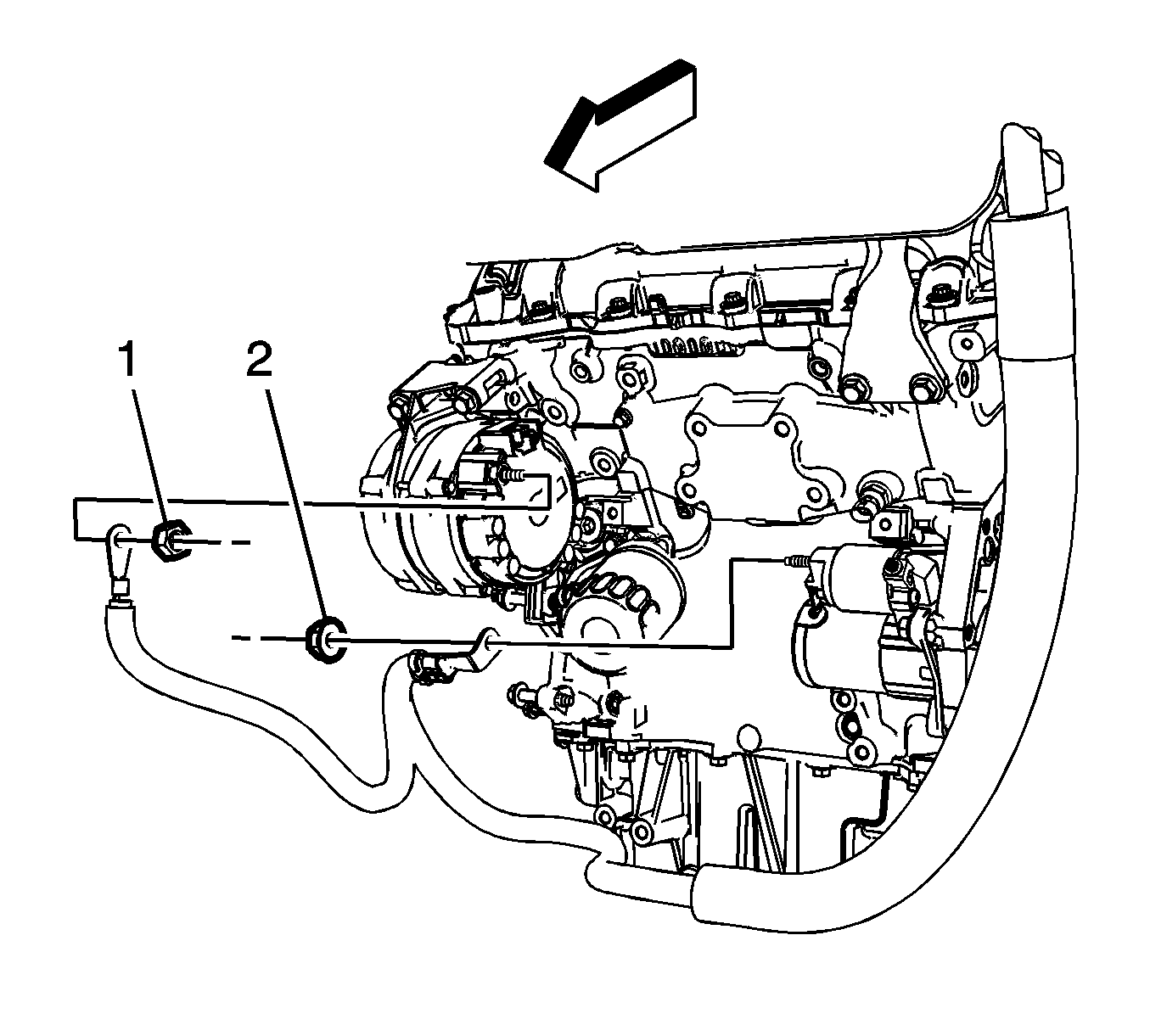

    2. Fig 2: View Of Auxiliary Battery Positive Cable
    GM2232747Courtesy of GENERAL MOTORS COMPANY
  2. Install the auxiliary battery positive terminal nut (1) to the back of the generator.Tighten to 15 N.m (11 lb ft).
  3. Install the auxiliary battery positive terminal nut (2) to the starter solenoid.Tighten to 15 N.m (11 lb ft).
  4. Connect the negative battery cable.Refer to Battery Negative Cable Disconnection and Connection
