Installation Procedure

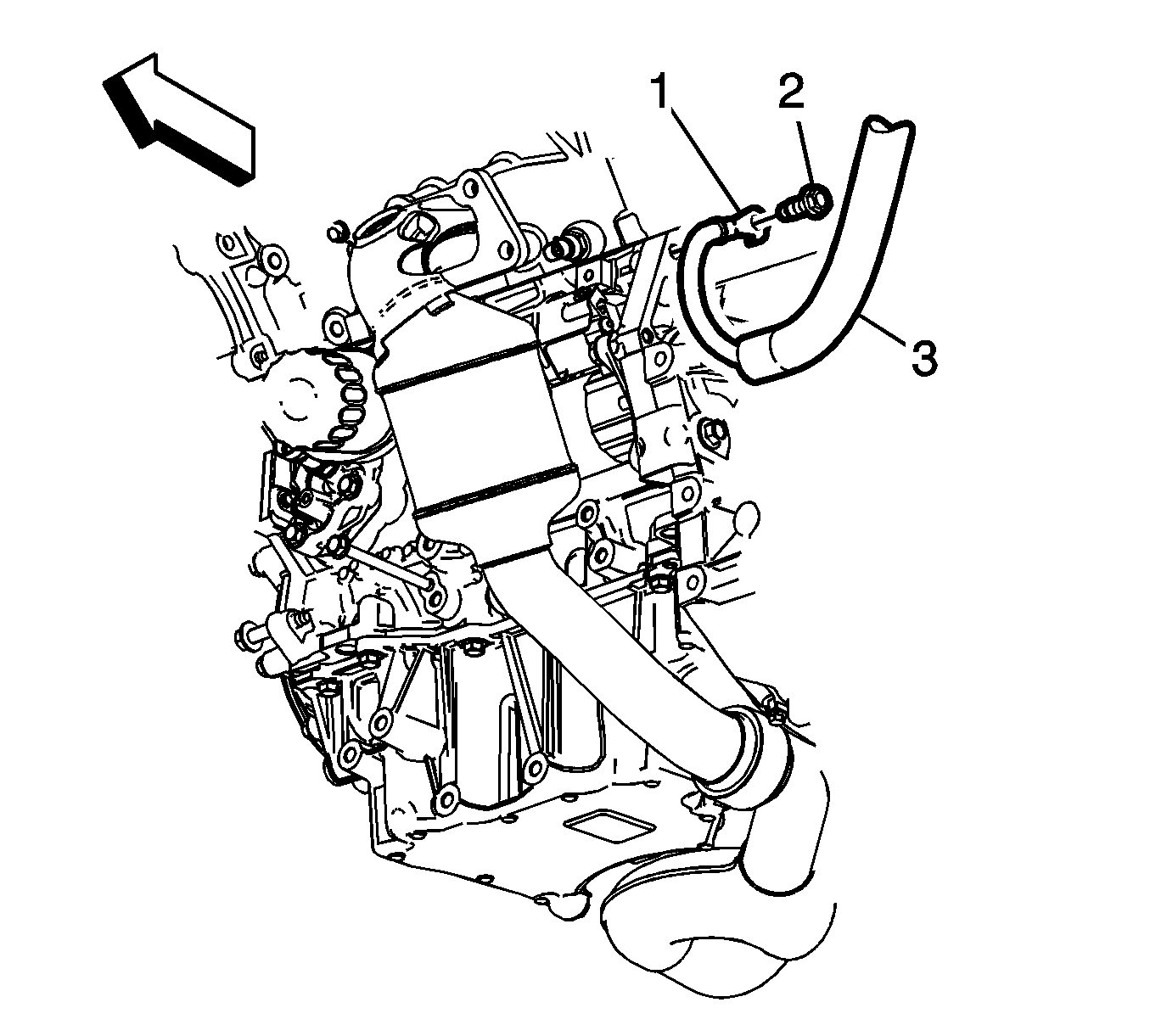

    Fig 1: Locating Engine Block Battery Ground Terminal & Bolt
    GM2235595Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the auxiliary negative battery cable harness (3) to the engine block with retainer (1) and bolt (2).Tighten to 45 N.m (33 lb ft).

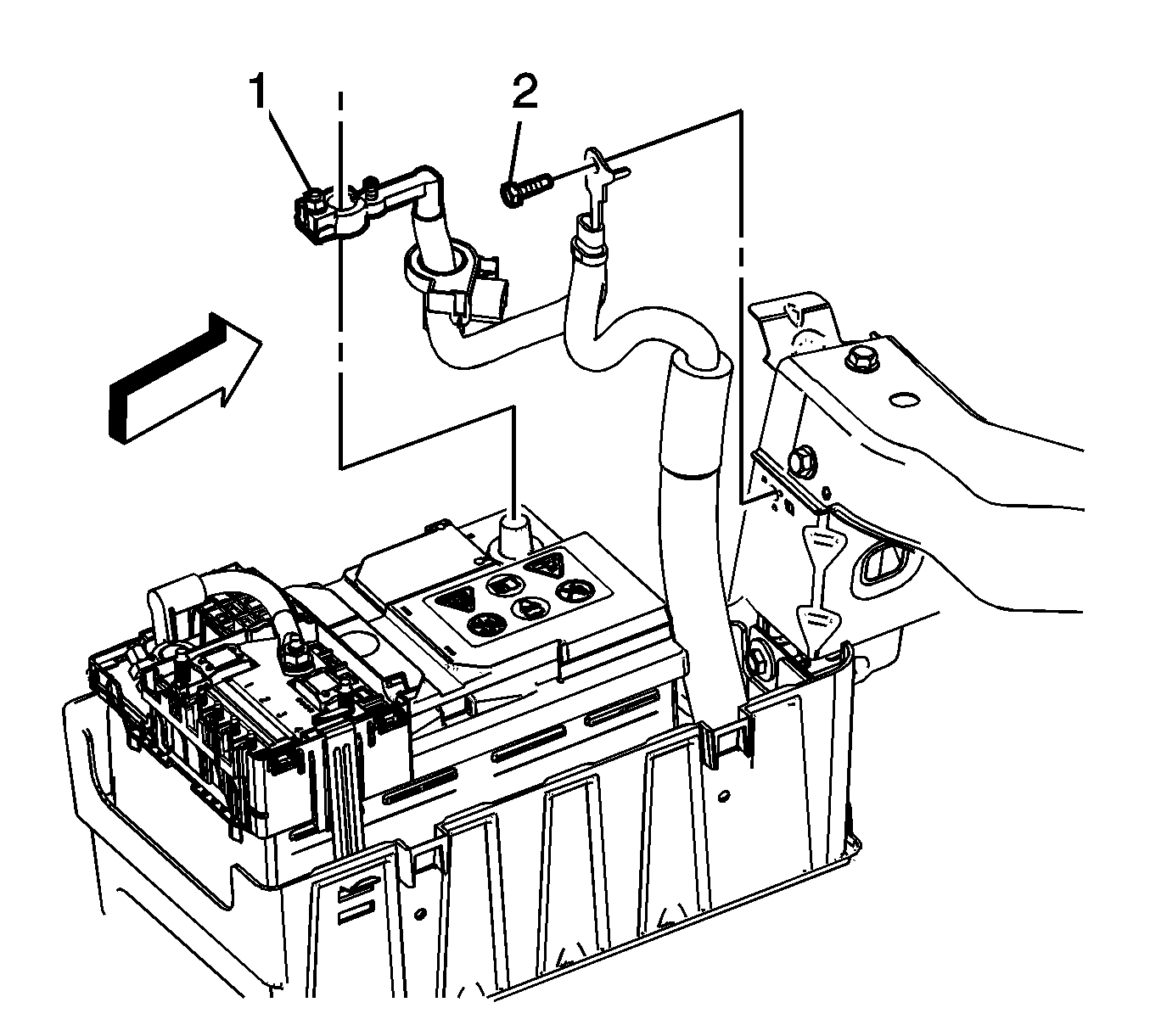

    2. Fig 2: Identifying Ground Harness Wire Terminal & Negative Battery Clamp
    GM2232745Courtesy of GENERAL MOTORS COMPANY
  2. Install the auxiliary negative battery ground bolt (2) and retainer.Tighten to 22 N.m (16 lb ft).
  3. Install the auxiliary negative battery post clamp (1).Tighten to 9 N.m (80 lb in).
