Rear Video Camera (UVC, without E52 or TB7)

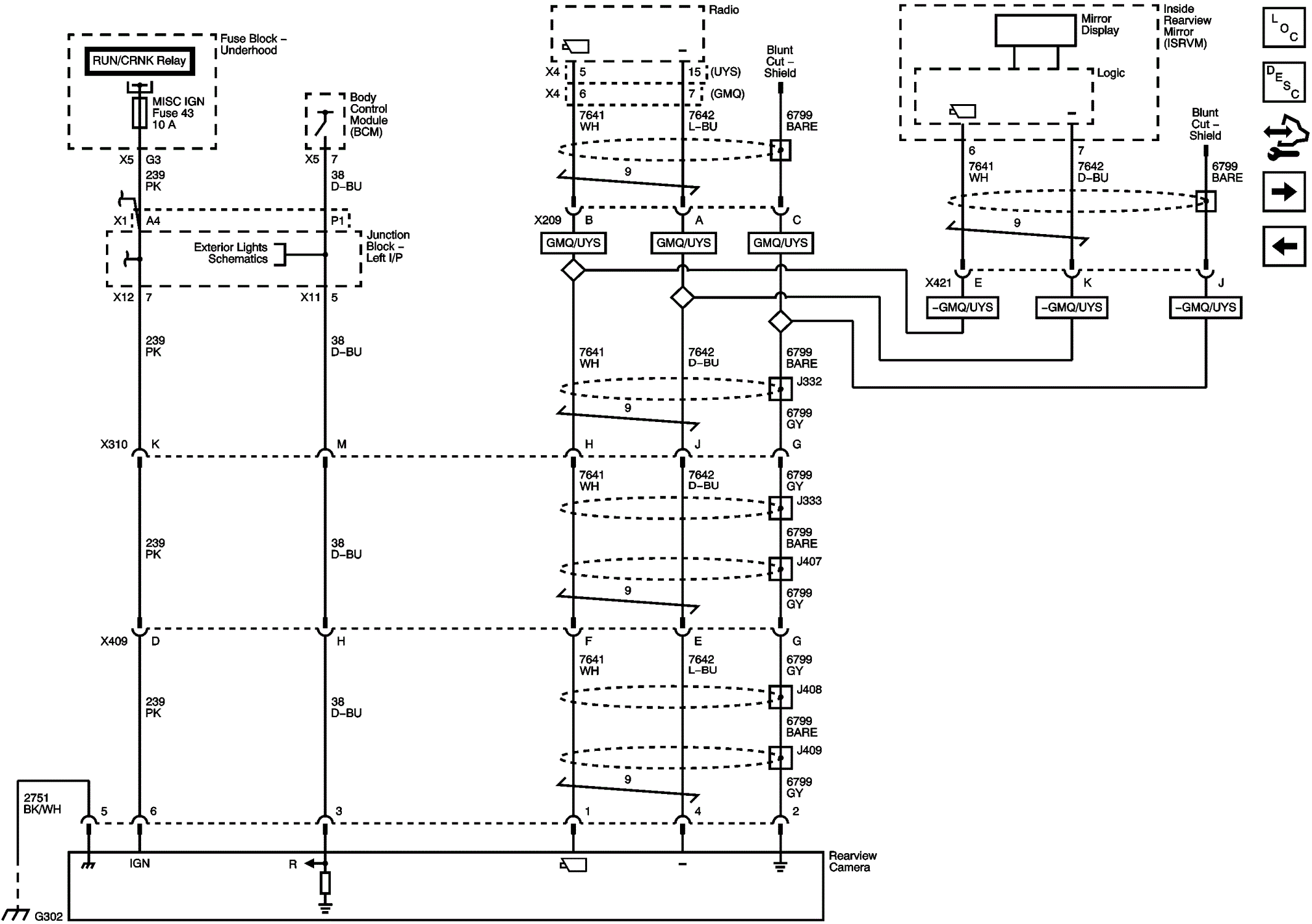

Fig 1: Rear Video Camera Wiring Schematic (without E52 or TB7)

GM2761965

Courtesy of GENERAL MOTORS COMPANY
