Ball Check Valve Locations

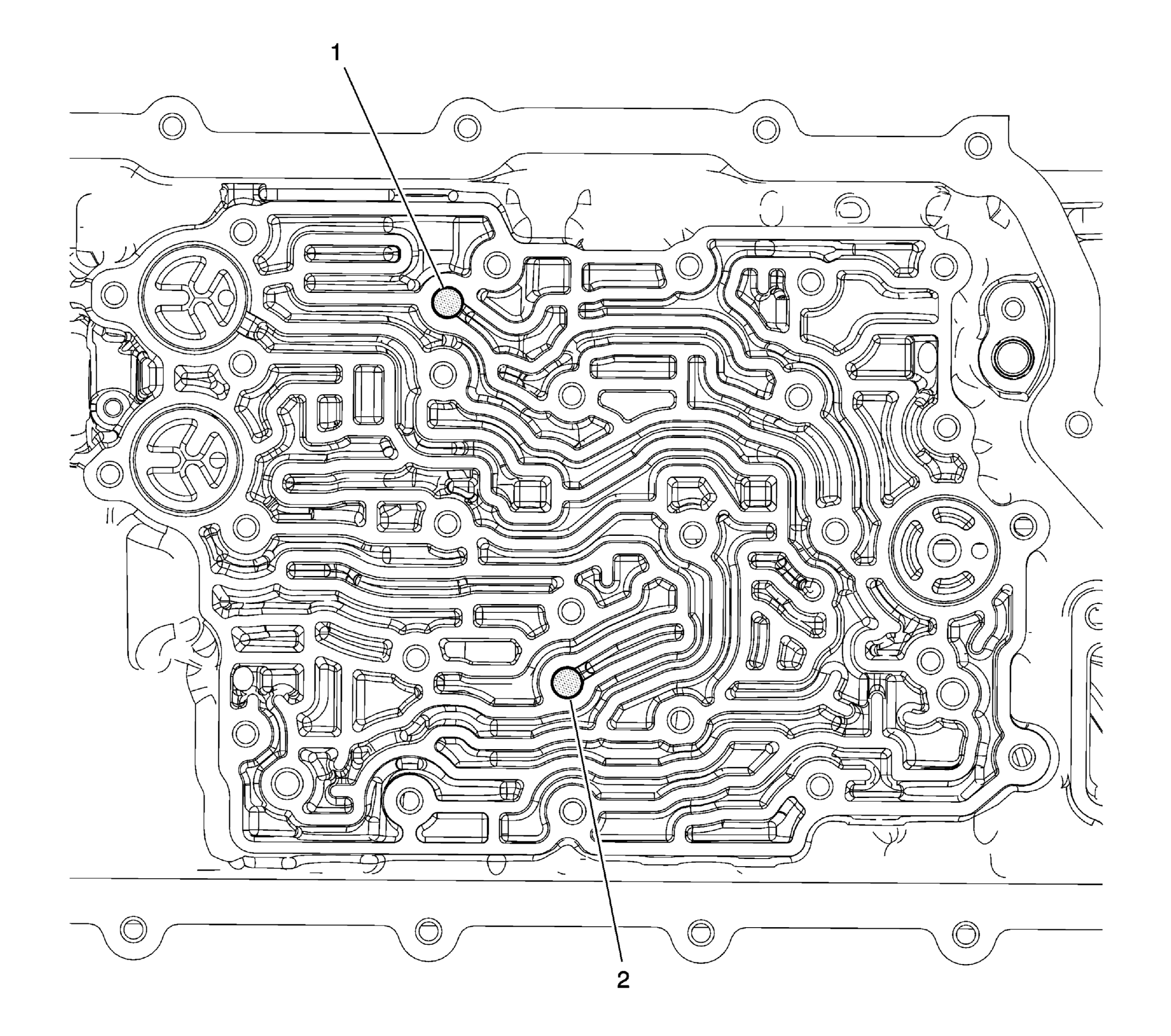

Fig 1: Ball Check Valve Locations
GM2414009Courtesy of GENERAL MOTORS COMPANY
Transmission Case - Ball Check Valve Location

Callout Ball Check Valve I.D. Input Oil Output Oil
1 #2 B Cooling Feed Motor B Cooling
2 #1 A Cooling Feed Motor A Cooling
