Front Side Door Window Switch Replacement

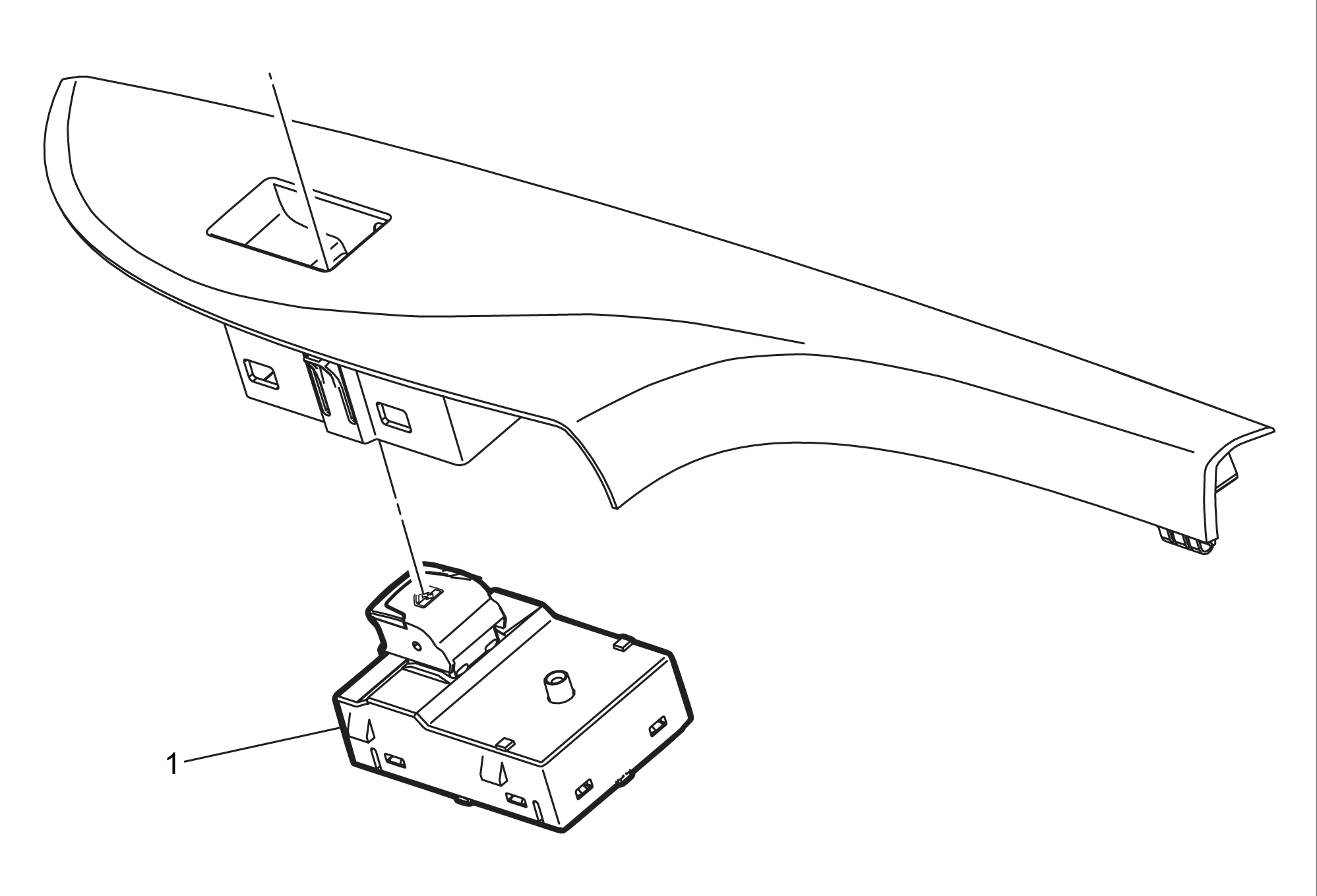

Fig 1: Front Side Door Window Switch

GM3611259

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Switch Replacement

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - passenger side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement (Driver Side) , Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side) .

1

Front Side Door Window Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
