Front Seat Back Position Switch Replacement
Front Seat Back Position Switch Replacement

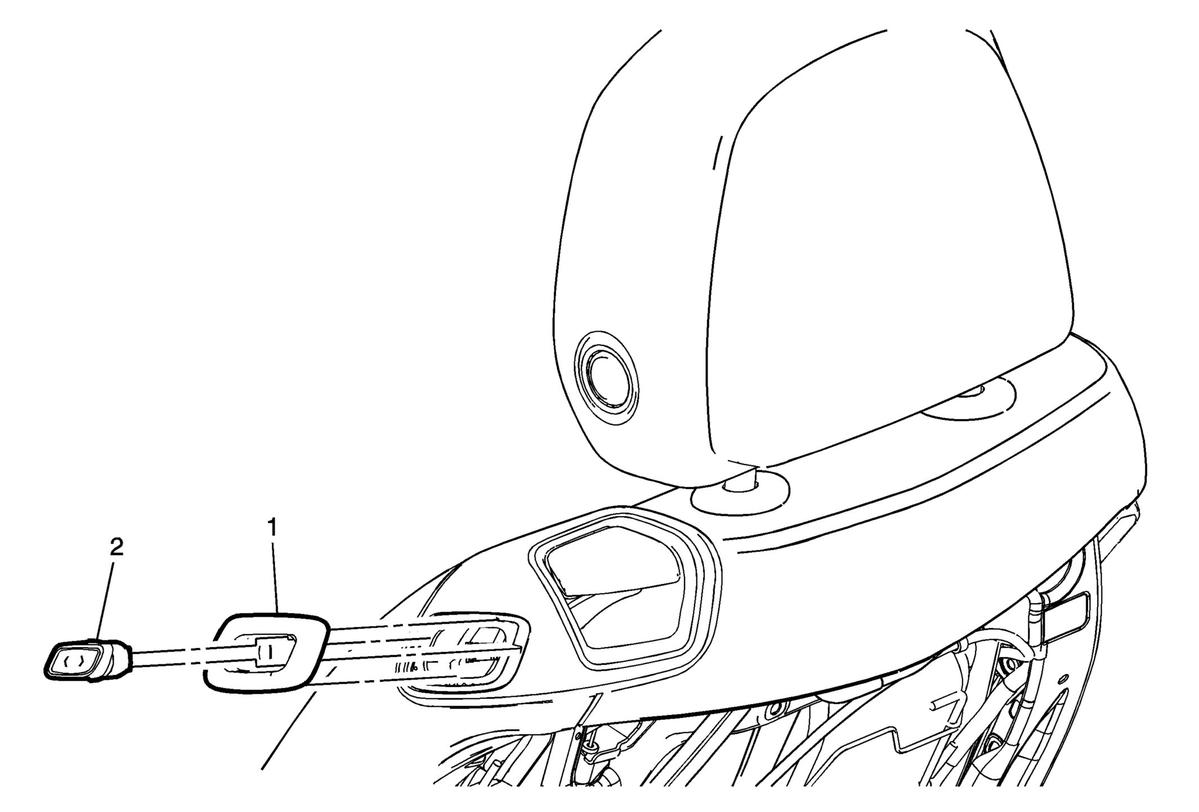

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement |
|
| 1 | Front Seat Back Position Switch Bezel Procedure Use a flat-bladed tool to push inward on the switch bezel tabs to release the bezel from the seat back frame. |
| 2 | Front Seat Back Position Switch Procedure Use a flat-bladed tool to push inward on the position switch tabs to release it from the bezel. |
