Outside Rearview Mirror Replacement
Outside Rearview Mirror Replacement

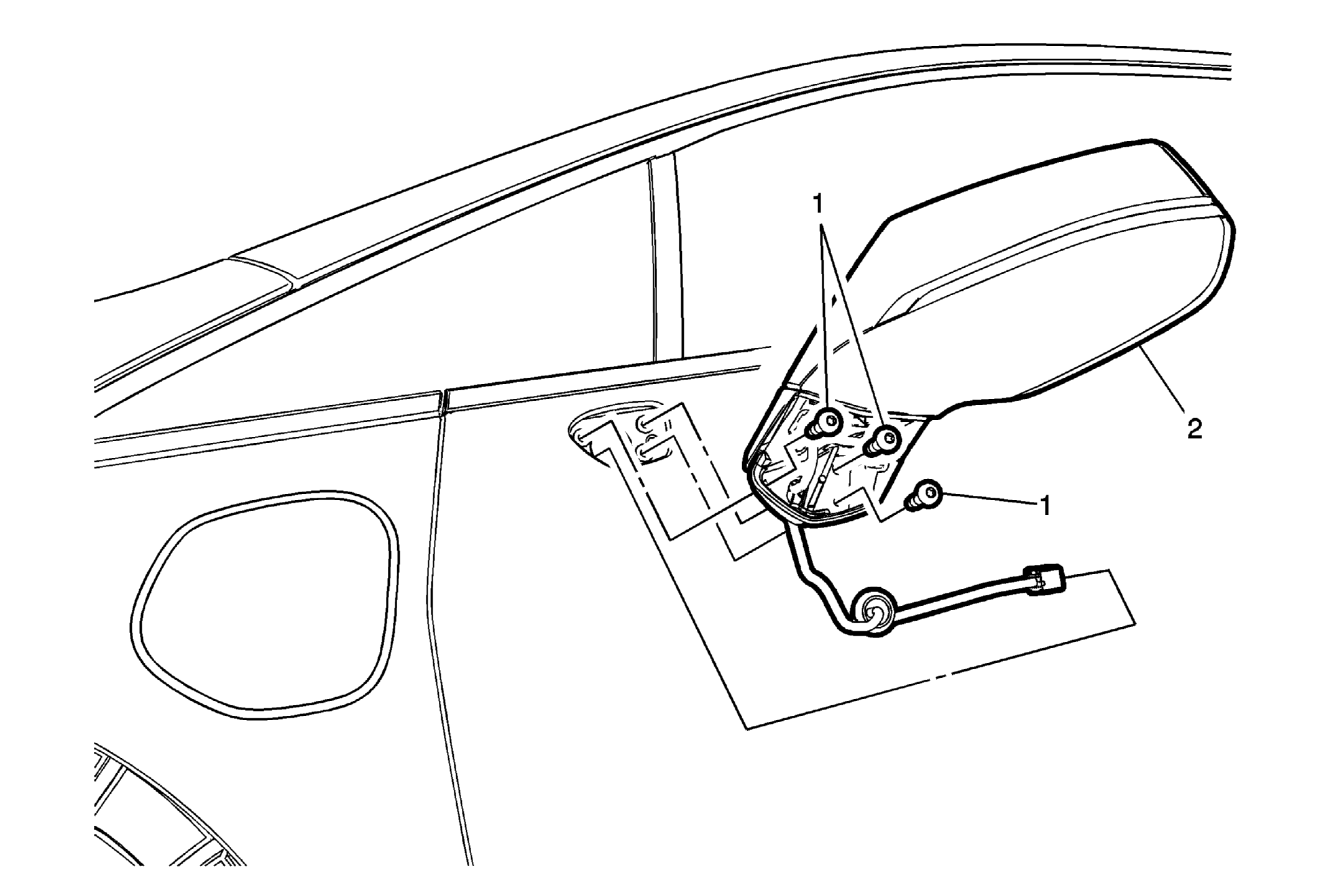

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the outside rearview mirror bracket cover. Refer to Outside Rearview Mirror Bracket Cover Replacement .Refer to Glass and Sheet Metal Handling Warning . |
|
| 1 | Outside Rearview Mirror Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Outside Rearview Mirror Procedure Disconnect the mirror electrical connector.
NOTE:
Pull the wiring harness through the hole in the door. |
