Roof Console Replacement

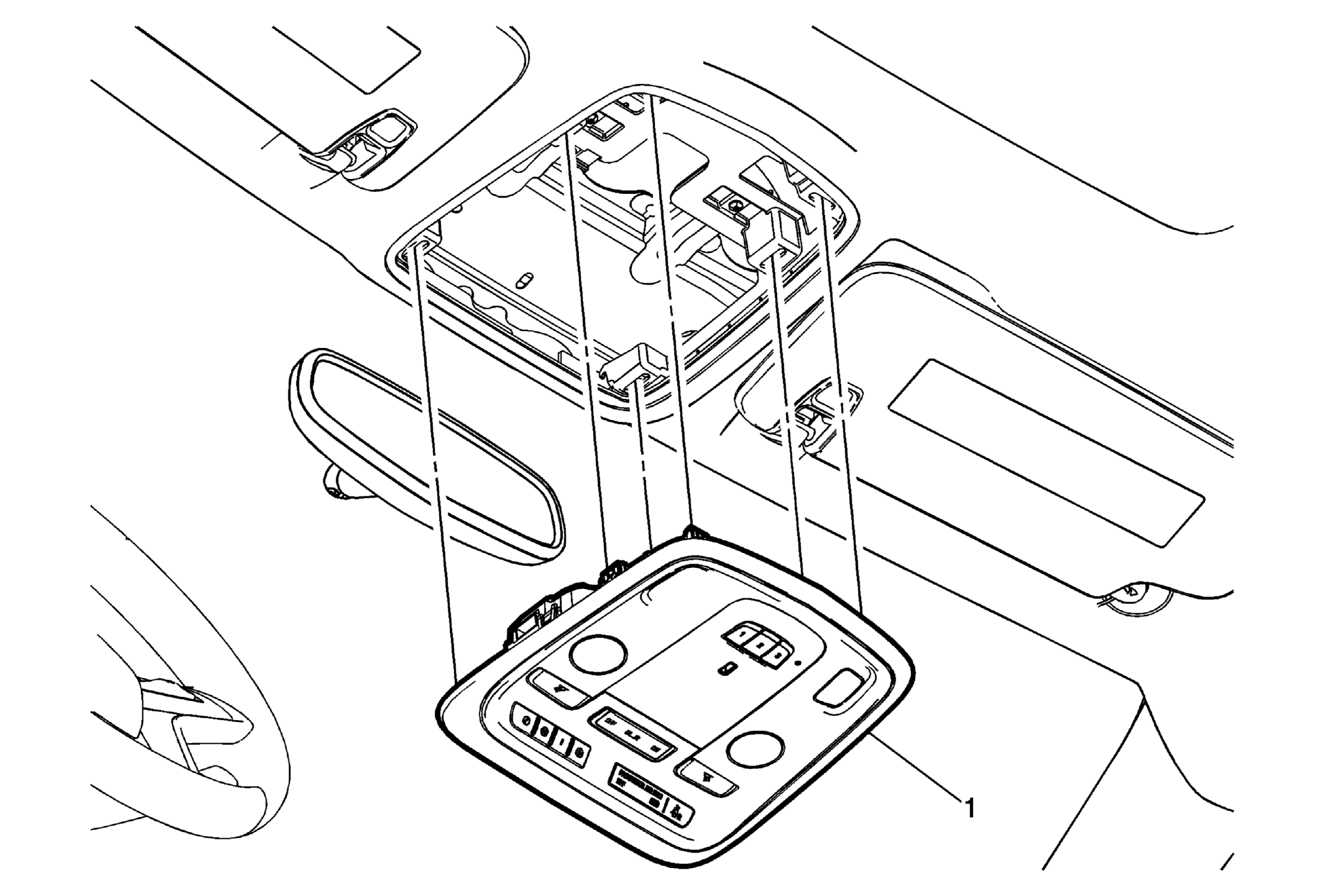

Fig 1: Roof Console
Courtesy of GENERAL MOTORS COMPANY
Roof Console Replacement
Callout
Component Name
1
Roof Console Assembly
Procedure
Use a flat-bladed plastic trim tool to release the 6 retainers securing the roof console to the headliner.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
