Side Object Sensing Alert Module Replacement

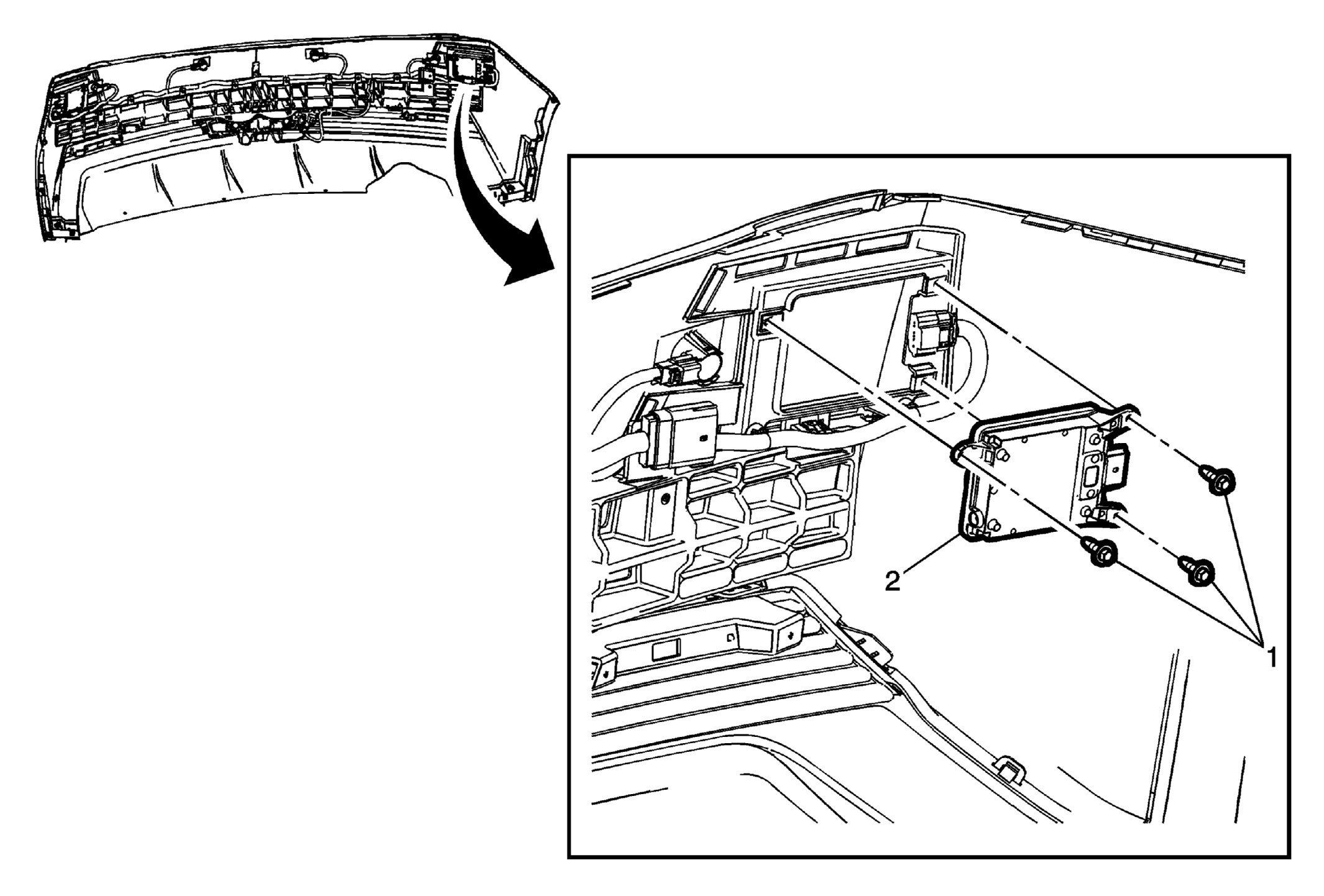

Fig 1: Side Object Sensing Alert Module
GM3612643Courtesy of GENERAL MOTORS COMPANY
Side Object Sensing Alert Module Replacement

Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Removal and Installation .
1 Side Object Sensing Alert Module Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Side Object Sensing Alert Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up, refer to Control Module References .
