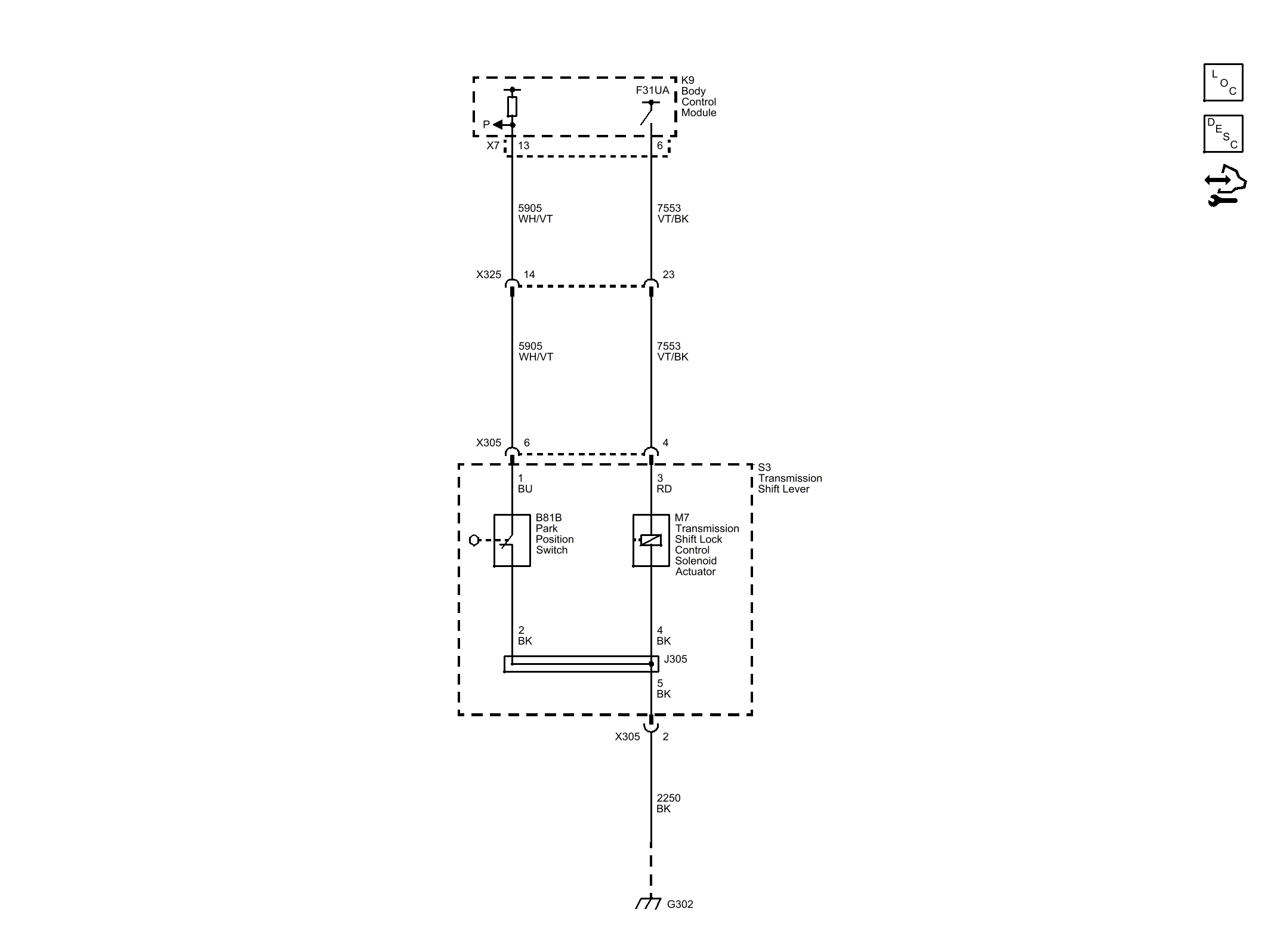

Home >> Cadillac >> 2014 >> CTS Vsport Premium >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System - Sedan >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control System
