Keyless Entry - Passive, and Keyless Start

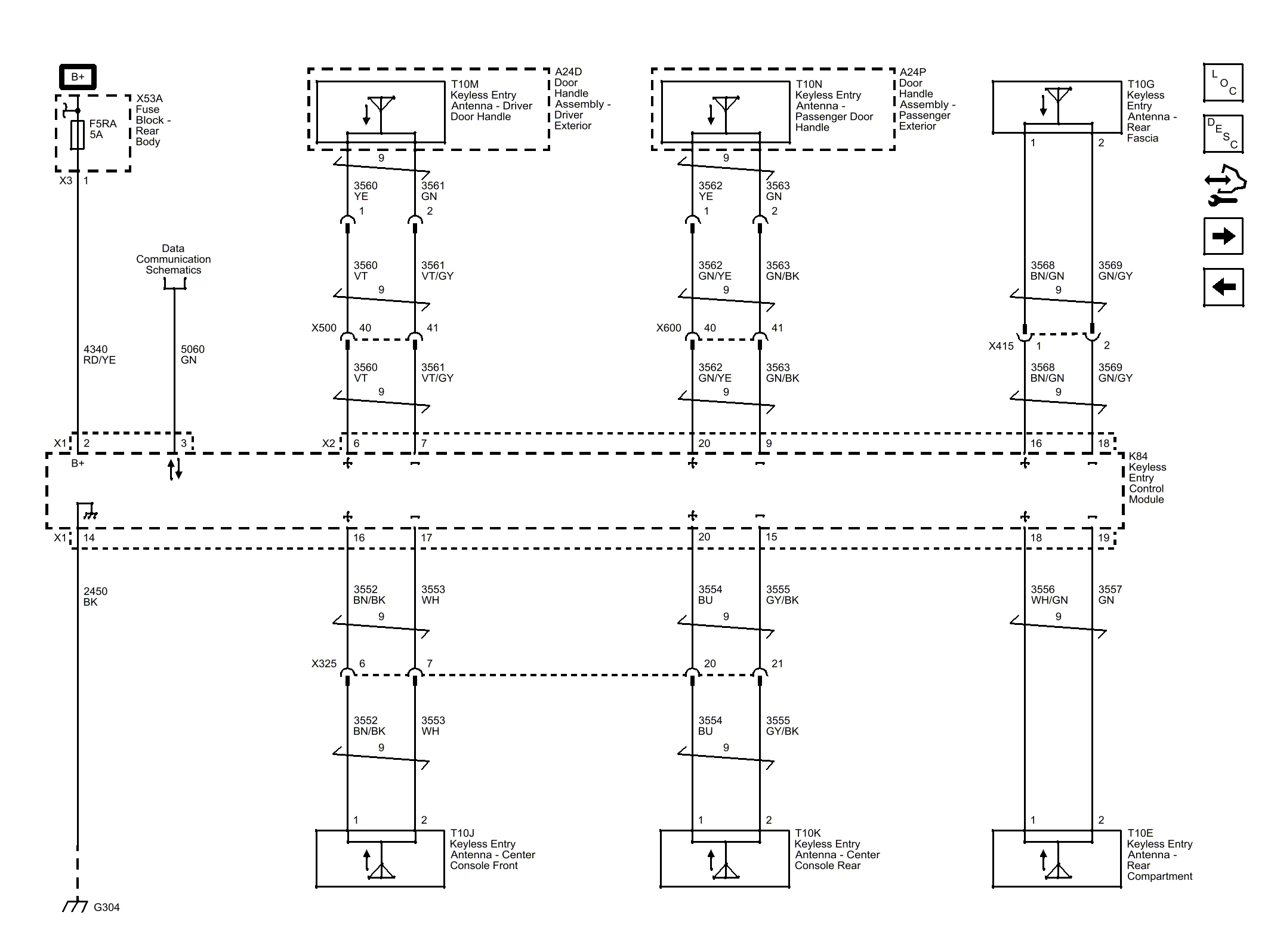

Fig 1: Keyless Entry - Passive, and Keyless Start

GM3460118

Courtesy of GENERAL MOTORS COMPANY
