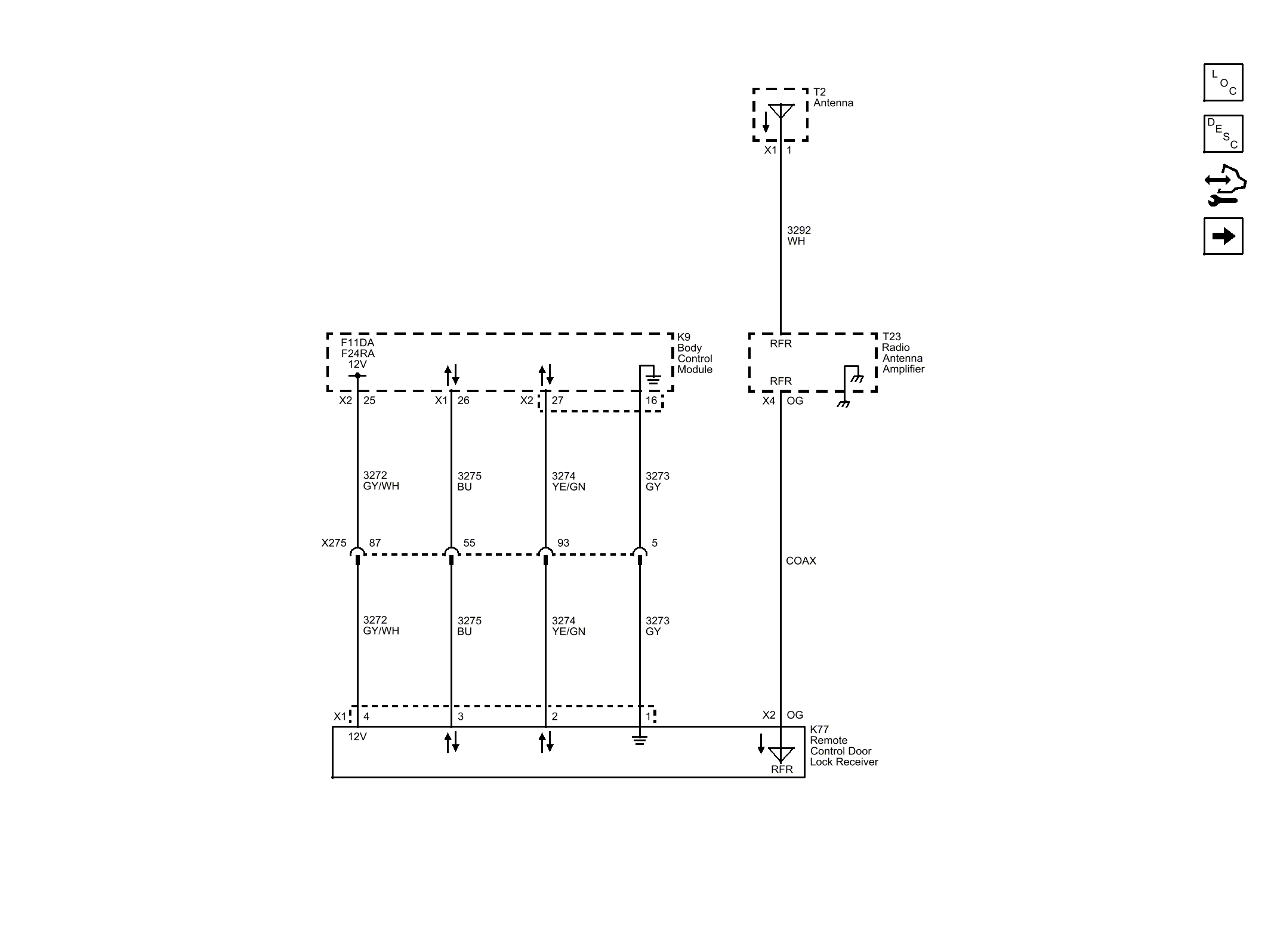

Home >> Cadillac >> 2014 >> CTS V, 4D Sedan, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions - Sedan >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
