Rear Reflector Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Rear Reflector Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|

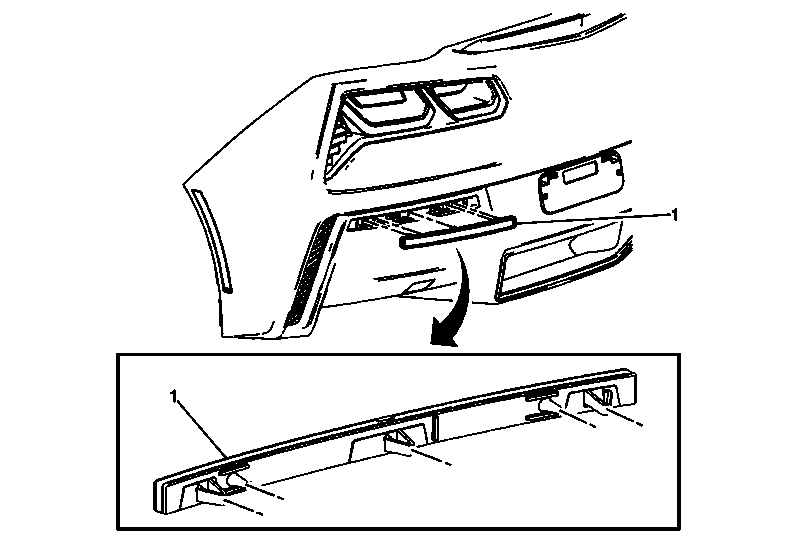

| 1 | Rear Reflector Procedure Compress the 3 locking tabs and pull the rear reflector from the rear bumper fascia. |
