Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fork of the brake pedal position sensor over the brake pedal pin.

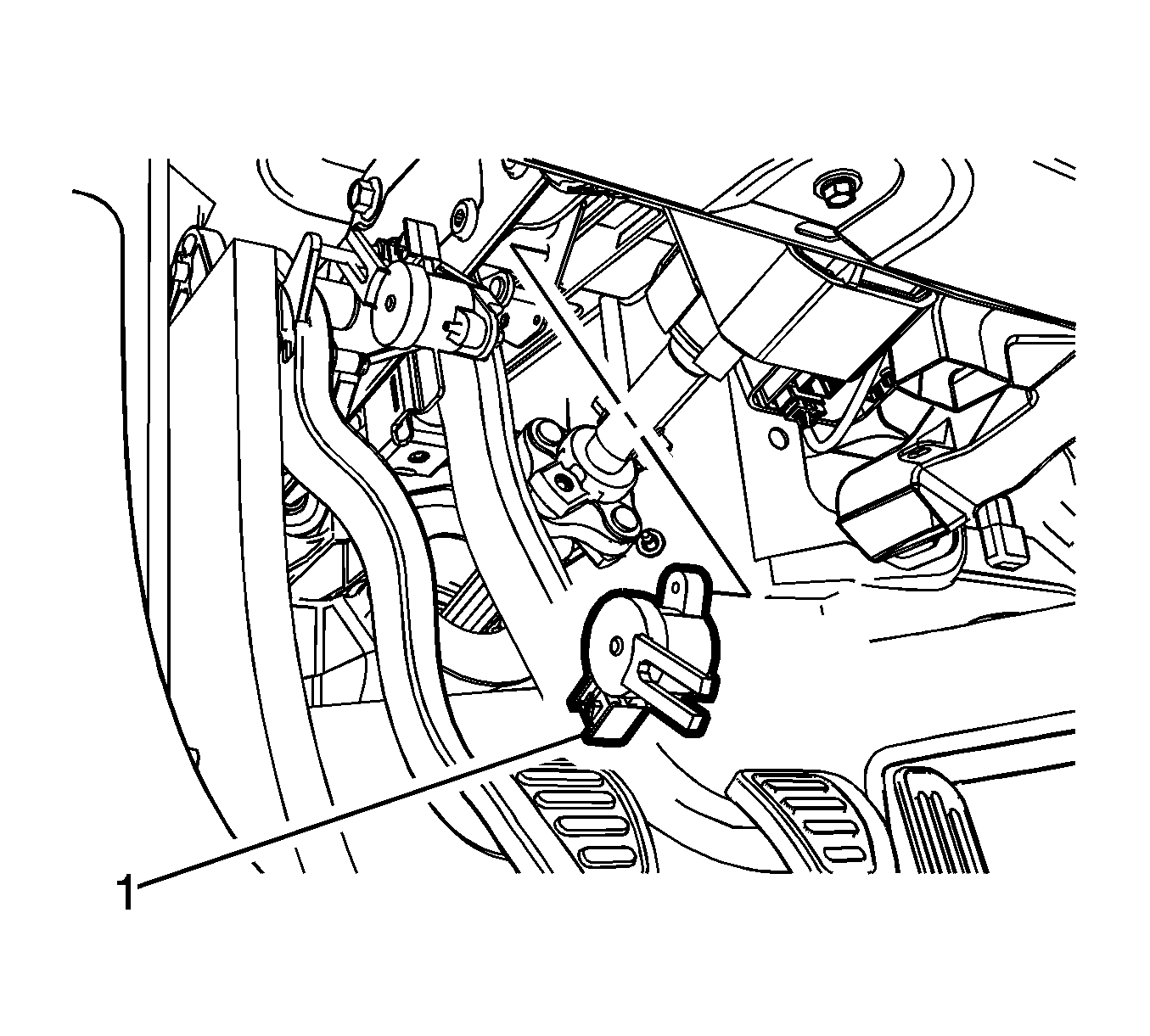

    2. Fig 1: Brake Pedal Position Sensor
    GM3329914Courtesy of GENERAL MOTORS COMPANY
  2. Align the brake pedal position sensor locating pin and install the brake pedal position sensor (1).

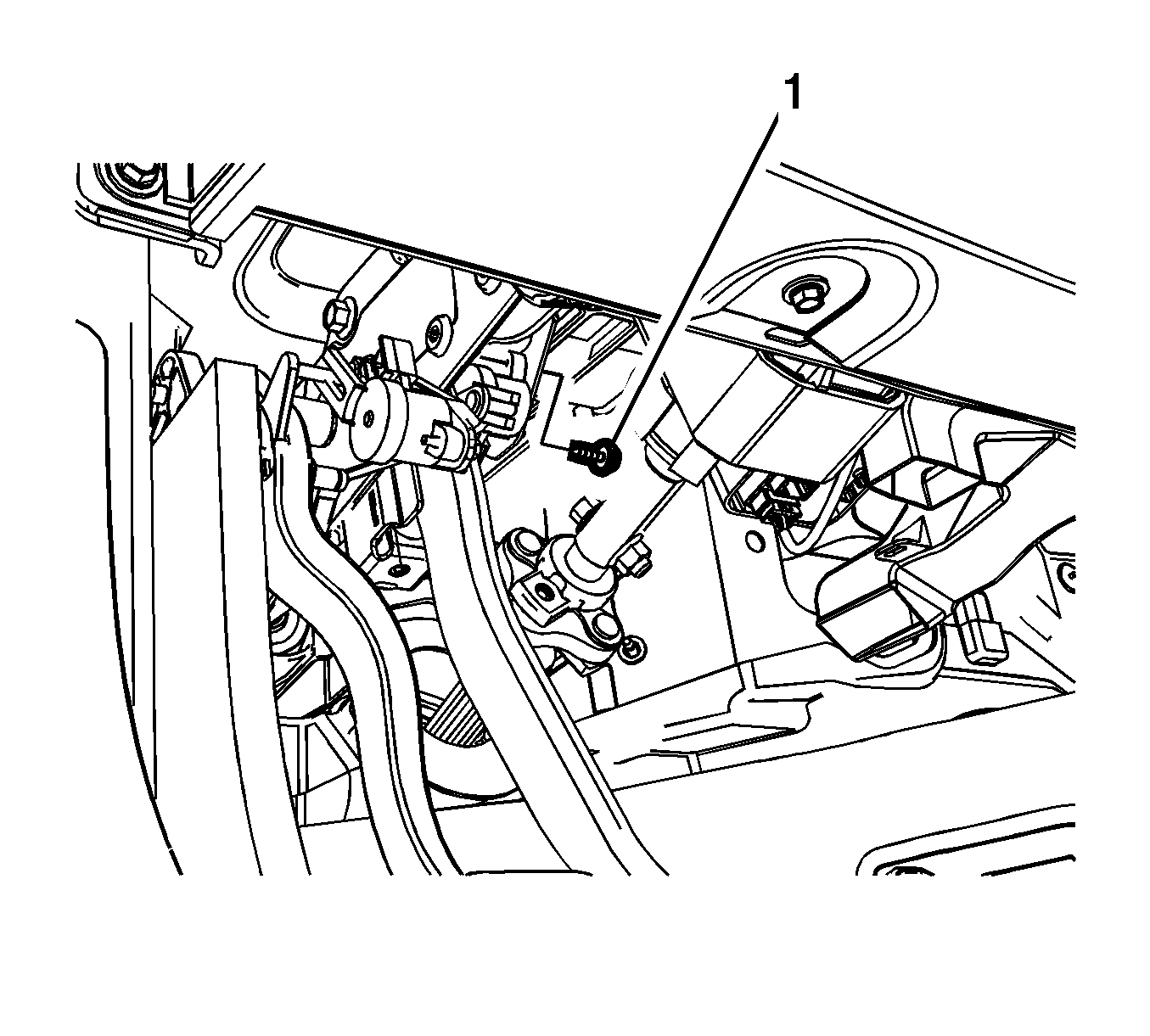

    3. Fig 2: Brake Pedal Position Sensor Bolt
    GM3329910Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the new brake pedal position sensor bolt (1) and tighten to 2 (18 lb in).
  4. Connect the brake pedal position sensor electrical connector.
  5. Install the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
  6. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
