Outside Rearview Mirror Remote Control Switch Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

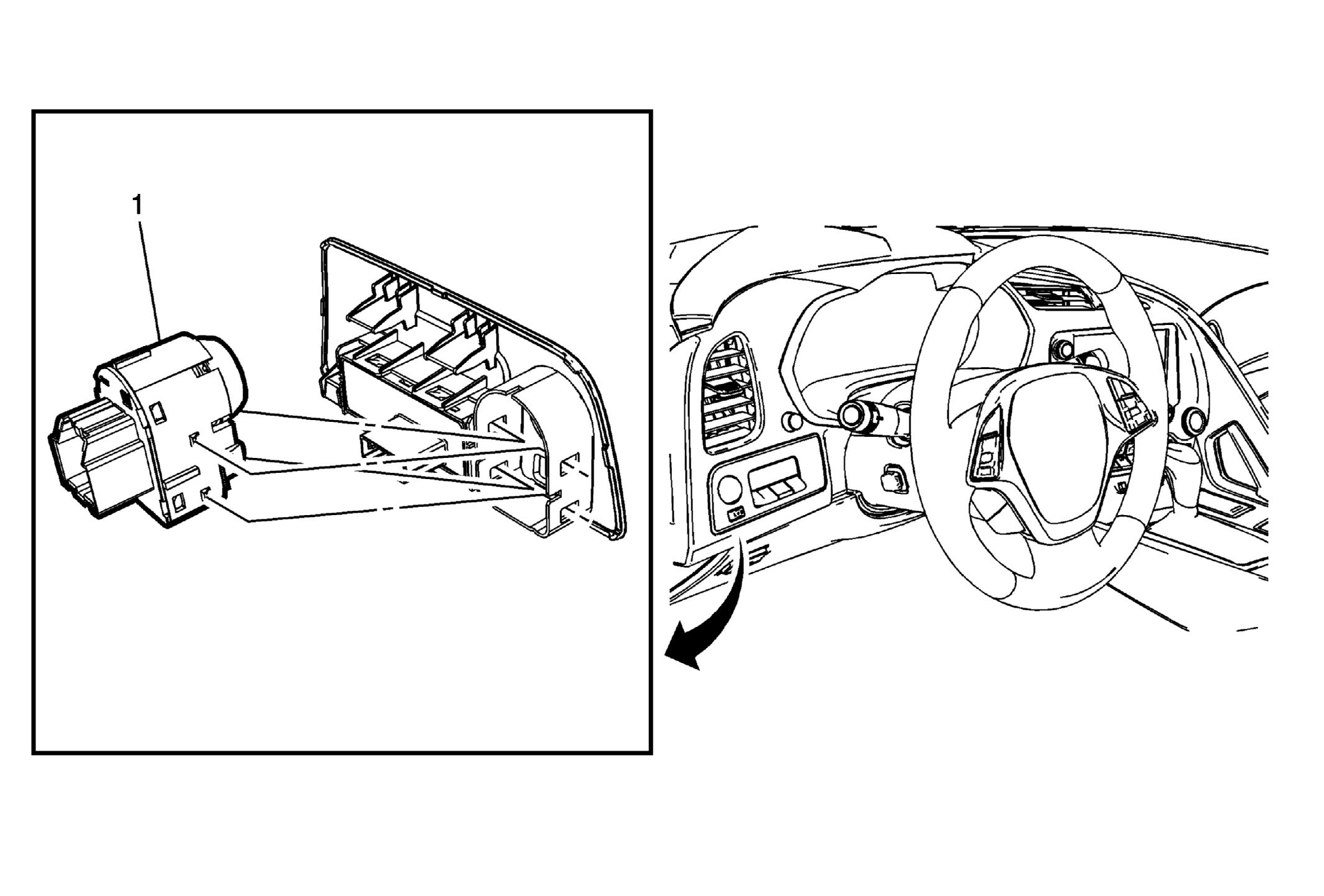

Fig 1: Outside Rearview Mirror Remote Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory switch trim panel. Refer to Instrument Panel Accessory Switch Trim Panel Replacement .
1	Outside Rearview Mirror Remote Control Switch Procedure Disconnect the electrical connections. Release tabs on switch to remove from the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory switch trim panel. Refer to Instrument Panel Accessory Switch Trim Panel Replacement .

Outside Rearview Mirror Remote Control Switch

Procedure

Disconnect the electrical connections.
Release tabs on switch to remove from the trim panel.
