Instrument Panel Components - Right Side

Items
1: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2: A33 Media Disc Player (TG5 or WCN) A33 Media Disc Player (TG5 or WCN)
3: K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4
4: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 (IO5 or IO6)K74 Human Machine Interface Control Module X2 (IO5 or IO6)K74 Human Machine Interface Control Module X3 (IO5 or IO6)K74 Human Machine Interface Control Module X4 (IO5 or IO6)K74 Human Machine Interface Control Module X5 (IO5 or IO6)K74 Human Machine Interface Control Module X7 (IO6)
5: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X4 A11 Radio X5 A11 Radio X6 (U2K or U2M)A11 Radio X7 (IO3)A11 Radio X8 (IO3)A11 Radio X9 (U2Q)
6: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
7: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
8: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch

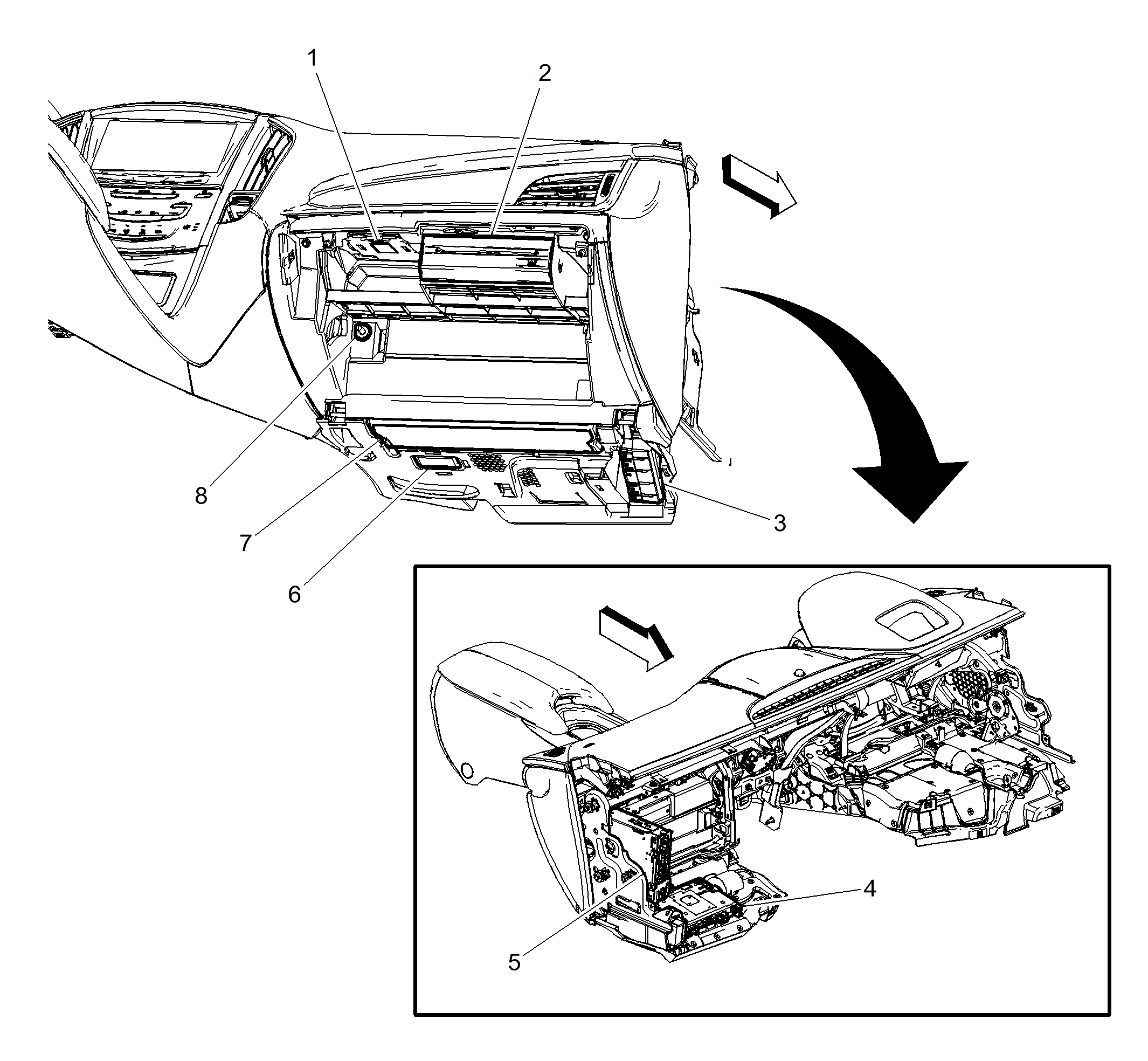

Fig 1: View Of Instrument Panel Components - Right Side

Courtesy of GENERAL MOTORS COMPANY
