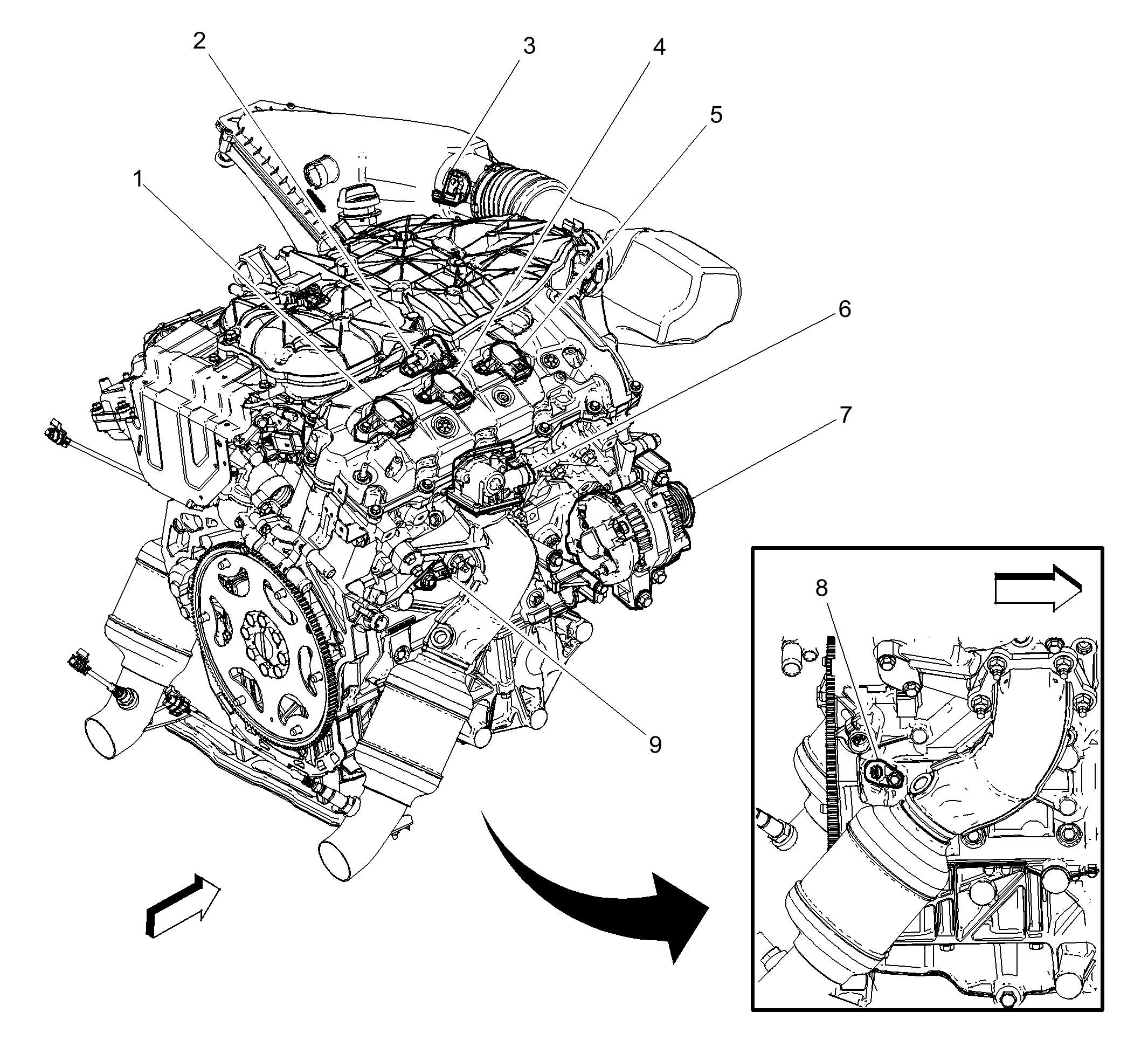

Right Rear of Engine Components (LFX)
Right Rear of Engine Components (LFX)
| Items |
|---|
| 1: T8E Ignition Coil 5 (LFX) T8E Ignition Coil 5 (LFX) |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV or LTG)Q12 Evaporative Emission Purge Solenoid Valve (LFX) |
| 3: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV or LTG)T8C Ignition Coil 3 (LFX) |
| 5: T8A Ignition Coil 1 T8A Ignition Coil 1 (LCV or LTG)T8A Ignition Coil 1 (LFX) |
| 6: Q29A Secondary Air Injection Solenoid Valve - Bank 1 (LFX with NU6) Q29A Secondary Air Injection Solenoid Valve - Bank 1 (LFX with NU6) |
| 7: G13 Generator G13 Generator X1G13 Generator X2 |
| 8: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LCV or LTG)B26 Crankshaft Position Sensor (LFX) |
| 9: B68A Knock Sensor 1 B68A Knock Sensor 1 (LCV or LTG)B68A Knock Sensor 1 (LFX) |
