Headlamp Components (without T4F)

Headlamp Components (without T4F)

Items
1:  M29R Headlamp Leveling Actuator - Right M29R Headlamp Leveling Actuator - Right (T4F)M29R Headlamp Leveling Actuator - Right (TR6)
2:  M29L Headlamp Leveling Actuator - Left M29L Headlamp Leveling Actuator - Left (T4F)M29L Headlamp Leveling Actuator - Left (TR6)
3:  E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (T4F)E4G Headlamp - Left Low Beam (without T4F)
4:  E4J Park Lamp - Left Front (TR6 without T4F) E4J Park Lamp - Left Front (TR6 without T4F)
5:  E4LF Turn Signal Lamp - Left Front (T4F or TR6) E4LF Turn Signal Lamp - Left Front (T4F or TR6)
6:  E4N Park/Turn Signal Lamp - Left (TUJ without T4F) E4N Park/Turn Signal Lamp - Left (TUJ without T4F)
7:  E4RF Turn Signal Lamp - Right Front (T4F or TR6) E4RF Turn Signal Lamp - Right Front (T4F or TR6)
8:  E4P Park/Turn Signal Lamp - Right (TUJ without T4F) E4P Park/Turn Signal Lamp - Right (TUJ without T4F)
9:  E4K Park Lamp - Right Front (TR6 without T4F) E4K Park Lamp - Right Front (TR6 without T4F)
10:  E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (T4F)E4H Headlamp - Right Low Beam (without T4F)

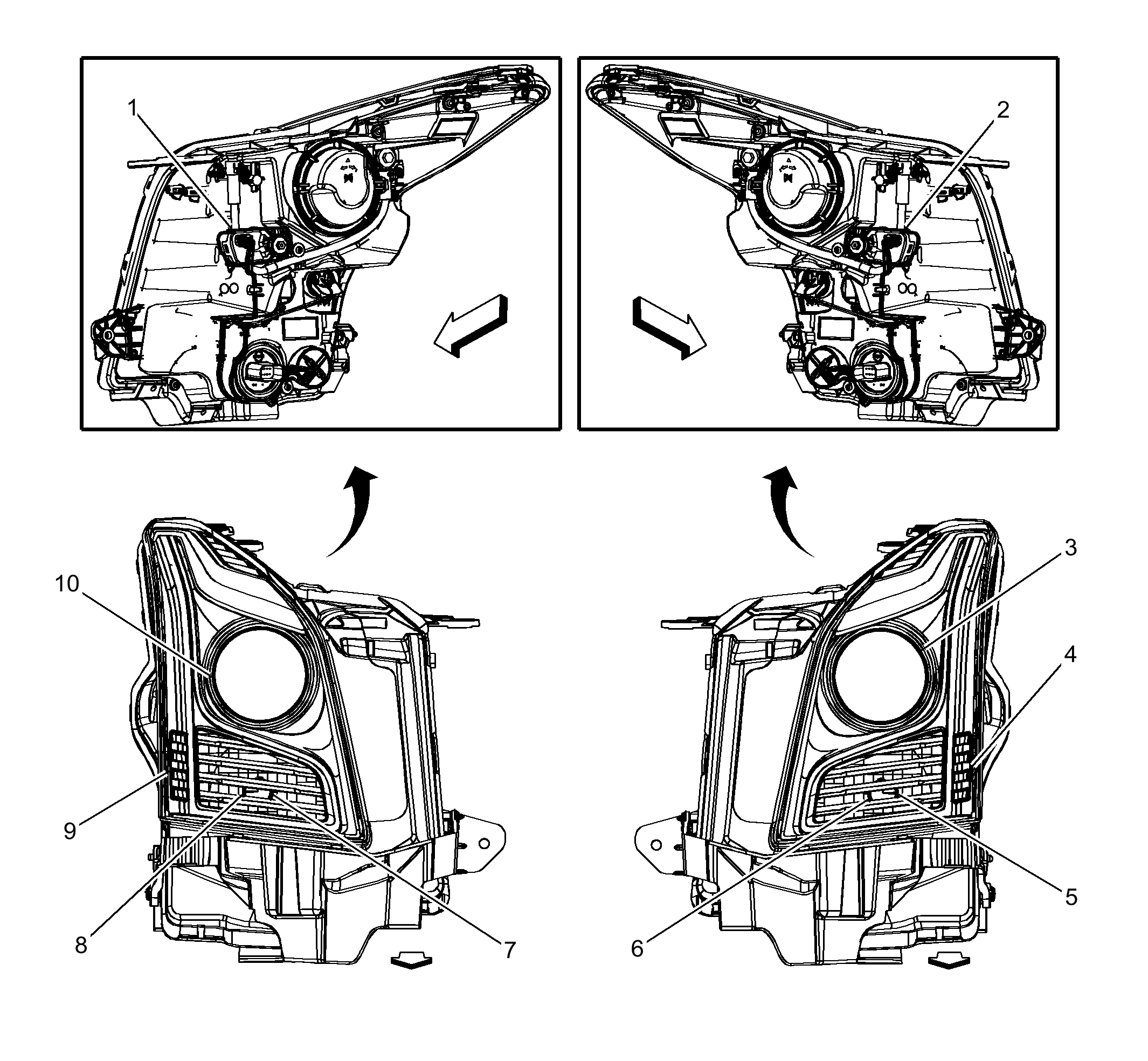

Fig 1: Headlamp Components View (without T4F)
GM3390656Courtesy of GENERAL MOTORS COMPANY
