Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Remove the power brake booster pump. Refer to Power Brake Booster Pump Replacement (LFX) , Power Brake Booster Pump Replacement (LCV, LTG) .
    4. Fig 1: Generator Engine Harness Connector
    GM2834081Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the engine harness connector (3).
  5. Remove the generator fastener (1) and the engine harness battery positive terminal (2), from the back of the generator (4).
    6. Fig 2: Generator Mounting Fasteners
    GM2834084Courtesy of GENERAL MOTORS COMPANY
  6. Remove the generator mounting fasteners (1).

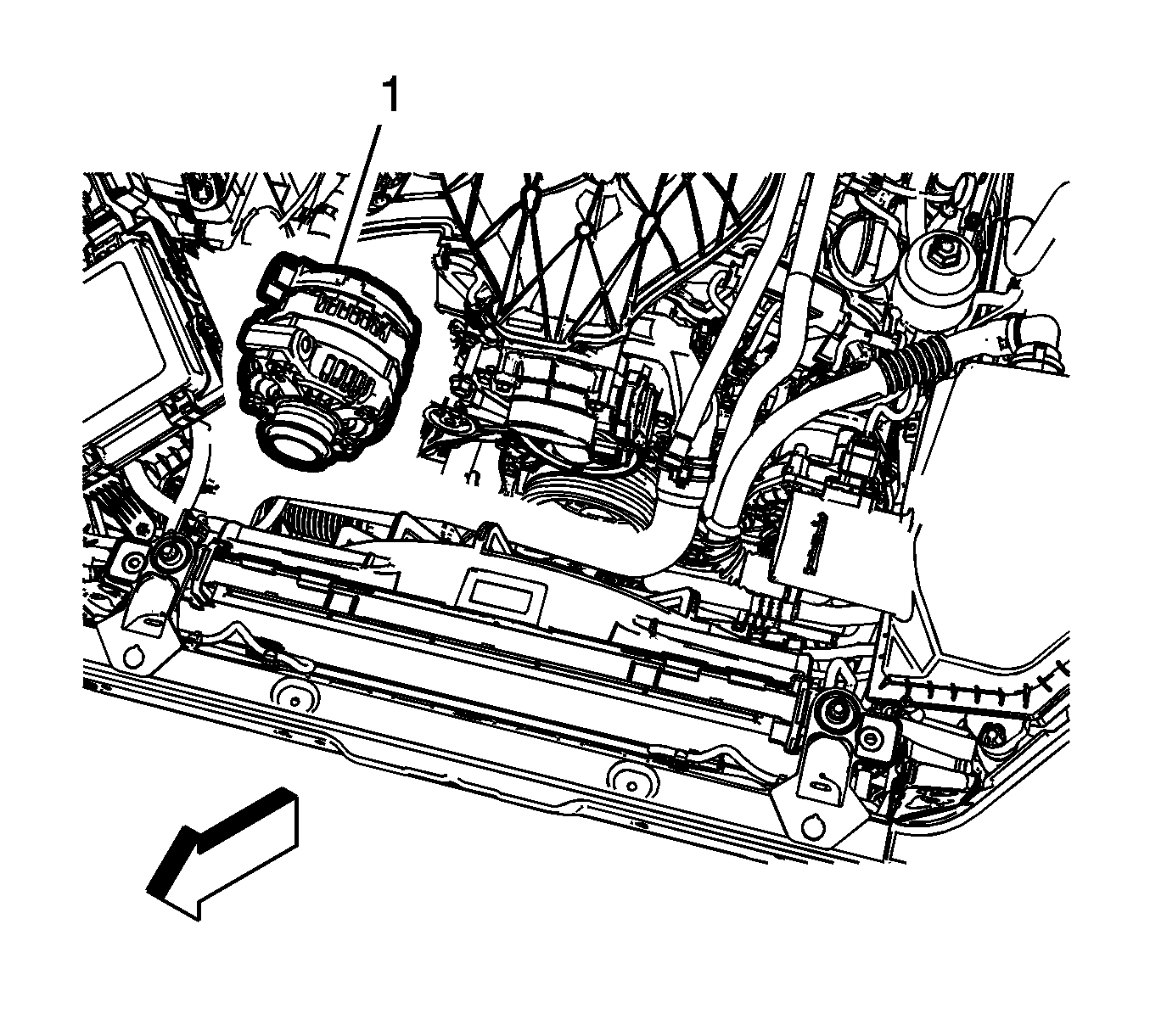

    7. Fig 3: Generator
    GM2834083Courtesy of GENERAL MOTORS COMPANY
  7. Remove the generator (1) from the front of the engine compartment.
