Battery Negative Cable Replacement

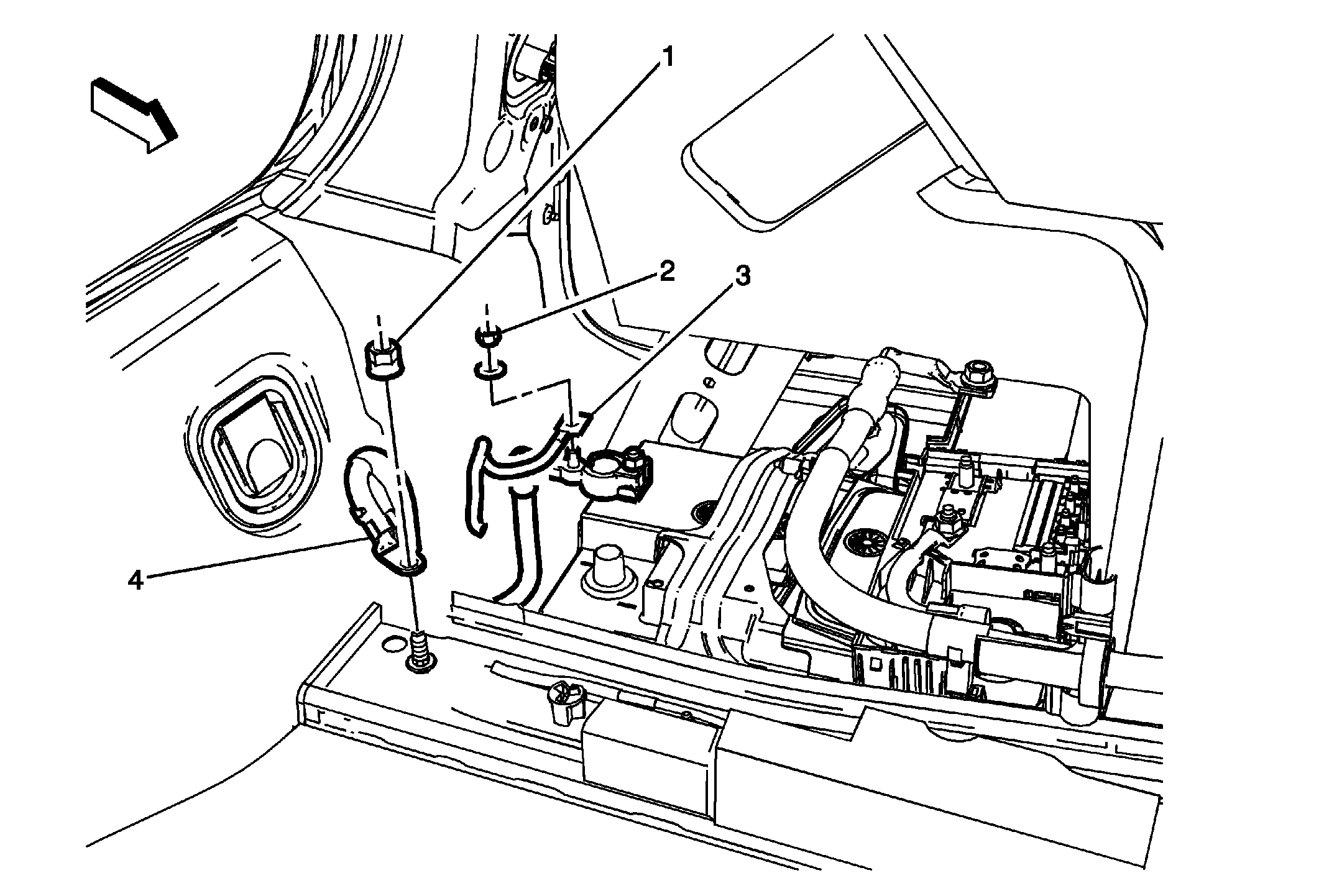

Fig 1: Battery Negative Cable, Body Harness Terminal & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the left side rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side (With AM9) , Rear Compartment Side Trim Replacement - Left Side (Except AM9) .
1	Battery Negative Cable Ground Fastener CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Body Harness Ground Fastener Tighten 9 (80 lb in)
3	Body Harness Terminal
4	Battery Negative Cable
