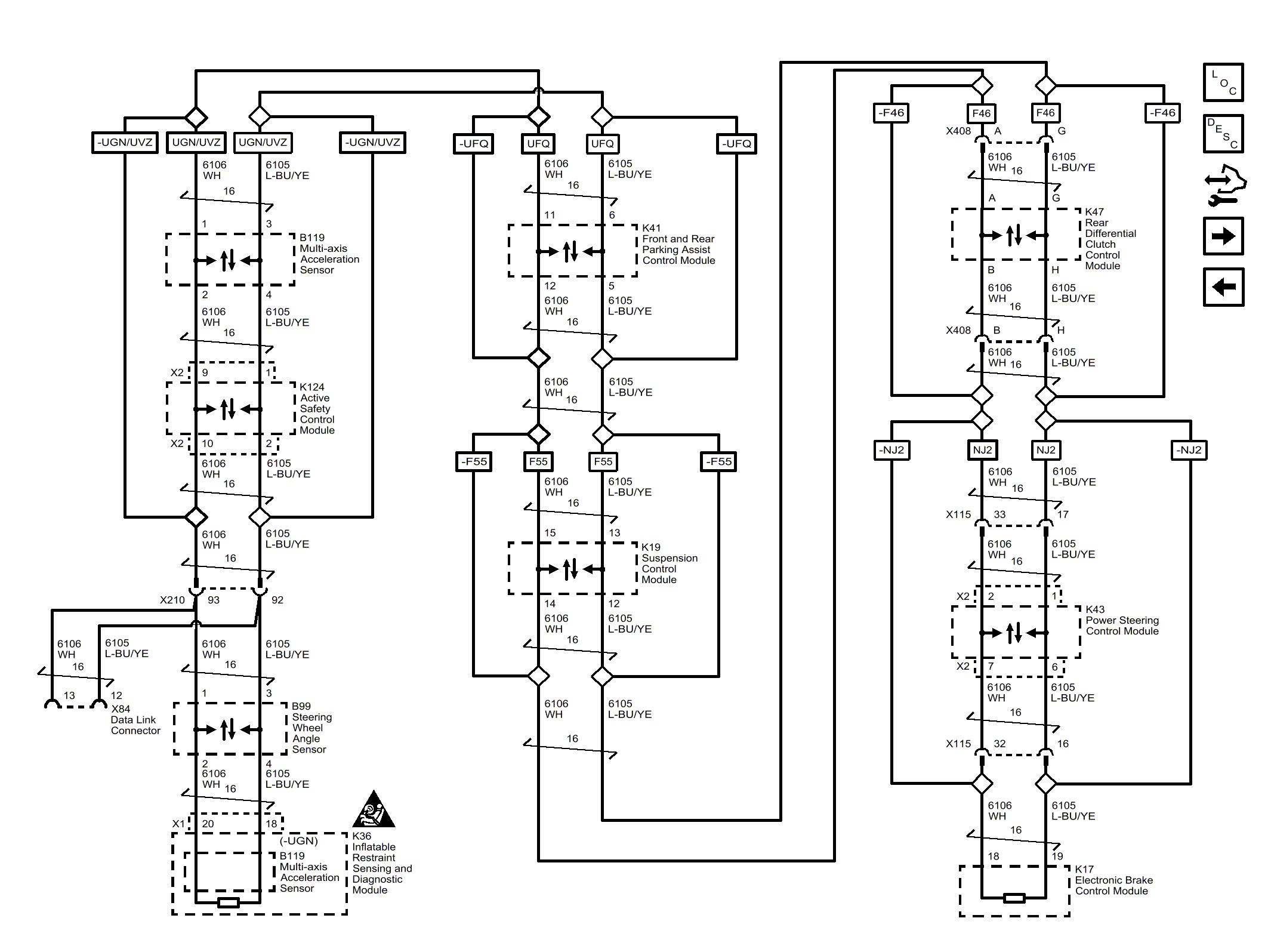

Home >> Cadillac >> 2013 >> XTS FWD, Trans Mfr CD 6T75/M7V >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Chassis Expansion Bus
