Rear Air Spring Compressor Bracket Insulator Replacement

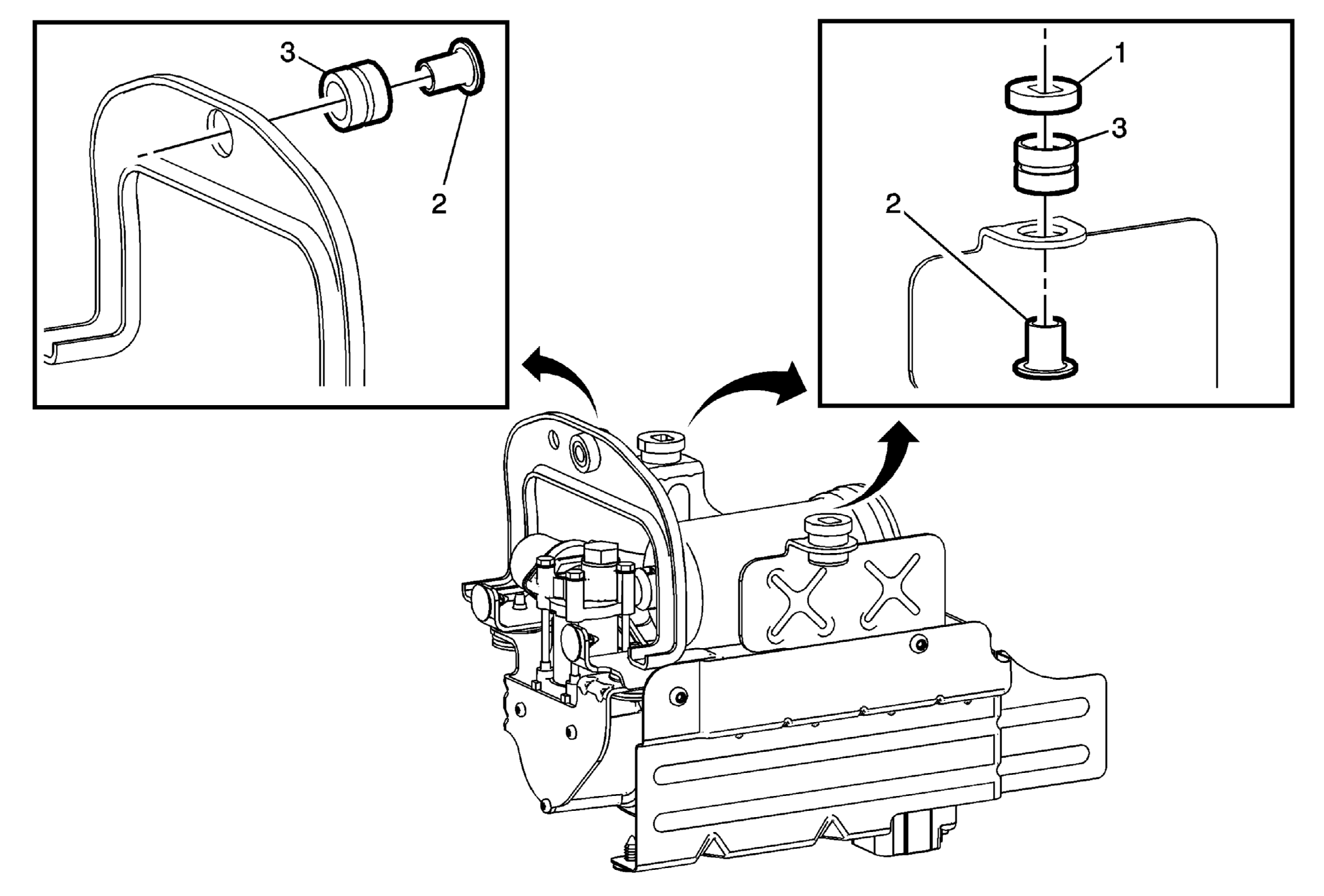

Fig 1: Rear Air Spring Compressor Bracket Insulators

Courtesy of GENERAL MOTORS COMPANY

Rear Air Spring Compressor Bracket Insulator Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear air spring compressor assembly. Refer to Rear Air Spring Compressor Replacement .
1	Rear Air Spring Compressor Bracket Insulator Washer (Qty: 2)
2	Rear Air Spring Compressor Bracket Insulator Sleeve (Qty: 3)
3	Rear Air Spring Compressor Bracket Insulator (Qty: 3)
