Data Link Connector Power, Ground and Low Speed GMLAN

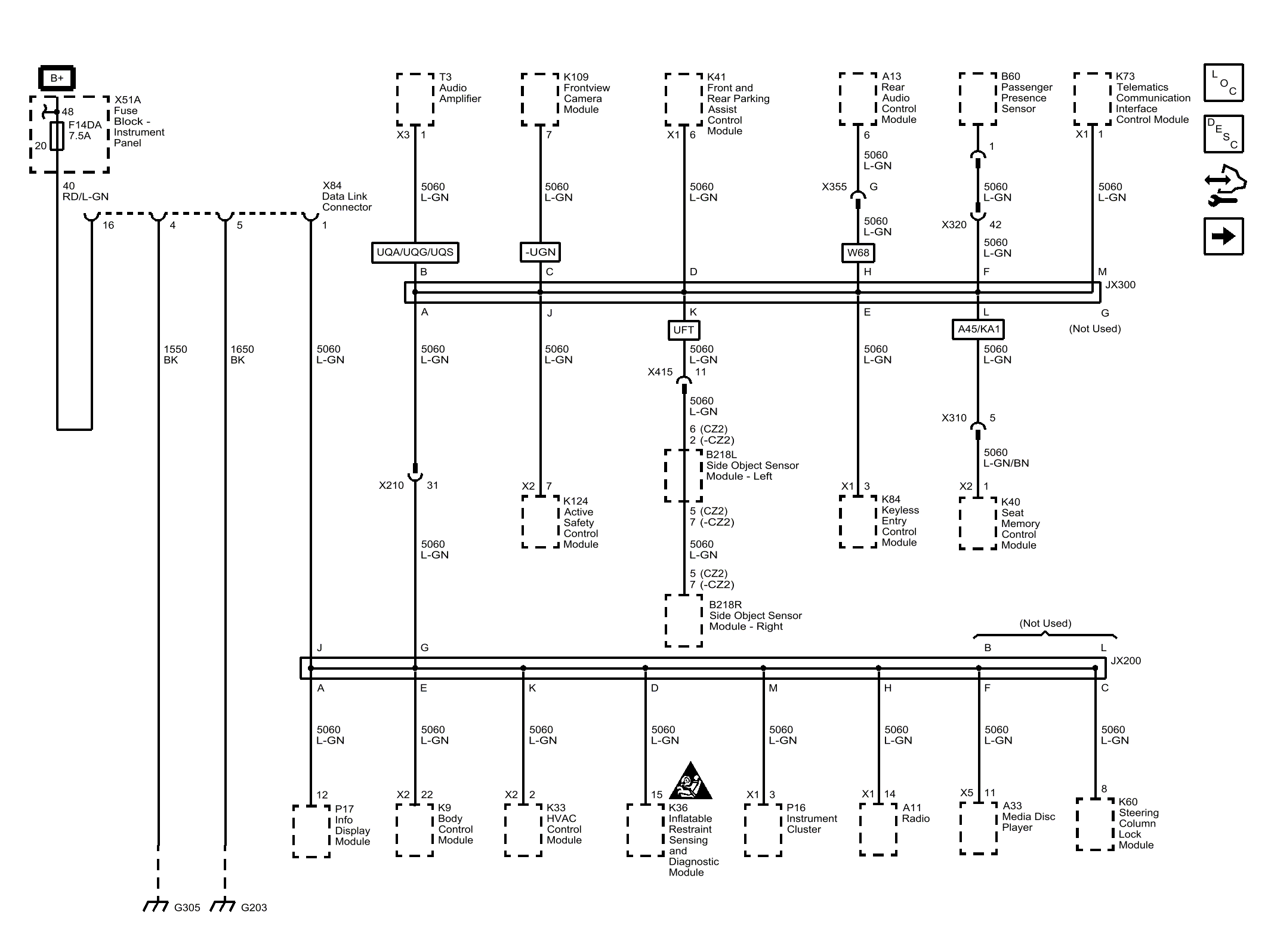

Fig 1: Data Link Connector Power, Ground and Low Speed GMLAN Wiring Schematic

GM2762296

Courtesy of GENERAL MOTORS COMPANY
