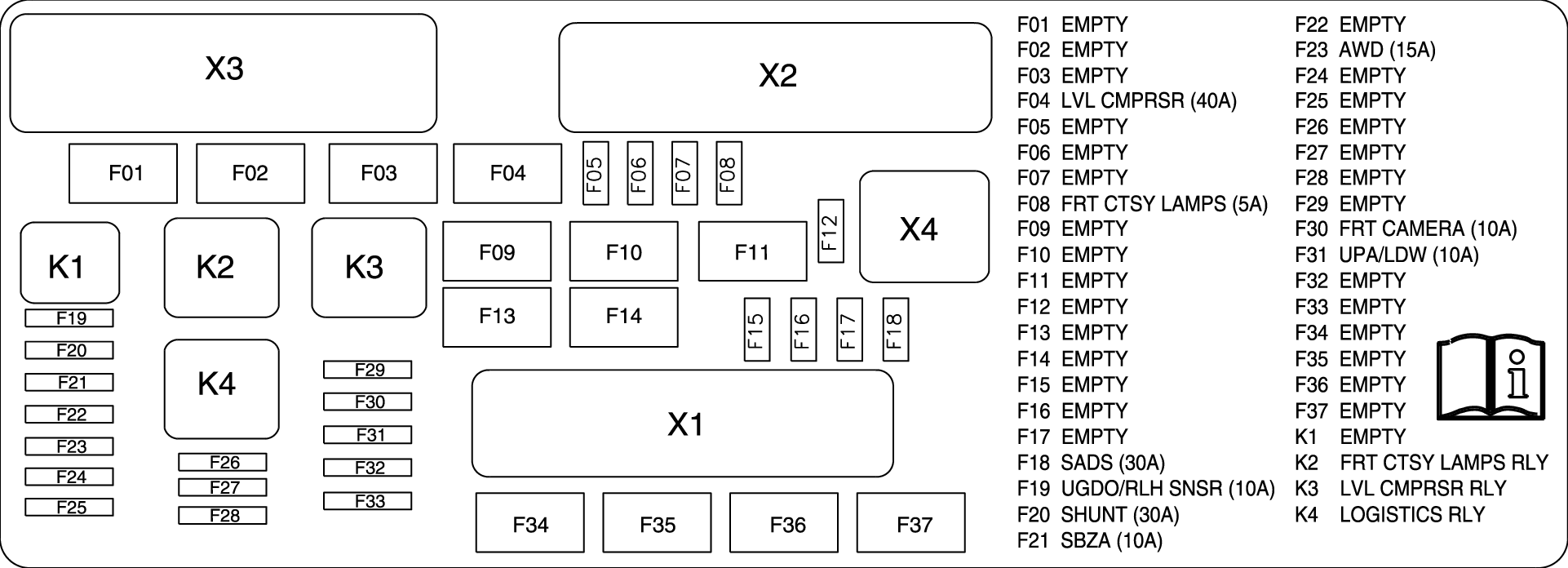

X53A Fuse Block - Rear Body Label
X53A Fuse Block - Rear Body Usage
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | - | - | Not Occupied |
| 2 | - | - | 30A | Spare |
| 3 | - | - | 30A | Spare |
| 4 | LVL COMP MTR | F4RA | 40A | KR98 Vehicle Level Control Compressor Relay |
| 5 | - | - | - | Not Occupied |
| 6 | - | F6RA | 25A | Spare |
| 7 | - | F7RA | 25A | Spare |
| 8 | FRT CTSY LAMPS | F8RA | 5A | Spare |
| 9-12 | - | - | - | Not Occupied |
| 13 | - | - | - | Spare |
| 14 | - | - | - | Spare |
| 15 | - | - | - | Not Occupied |
| 16 | - | - | - | Spare |
| 17 | - | - | - | Spare |
| 18 | SADS | F18RA | 30A | K19 Suspension Control Module |
| 19 | UGDO/RLH/SNSR | F19RA | 10A | B117 Rain Sensor (CE1), S25 Garage Door Opener |
| 20 | SHUNT | F20RA | 30A | F19RA, F21RA, F22RA, F23RA, F30RA, F31RA |
| 21 | SBZA | F21RA | 10A | B218L Side Object Sensor Module - Left (UFT), B218R Side Object Sensor Module - Right (UFT) |
| 22 | - | F22RA | - | Not Used |
| 23 | AWD | F23RA | 15A | K47 Rear Differential Clutch Control Module |
| 24-29 | - | - | - | Not Occupied |
| 30 | FRT CAMERA | F30RA | 10A | K109 Frontview Camera Module (UGN), K124 Active Safety Control Module (UGN/UVZ) |
| 31 | UPA/LDW | F31RA | 10A | K41 Front and Rear Parking Assist Control Module (UD5/UD7), K109 Frontview Camera Module (UFL) |
| 32-37 | - | - | - | Not Occupied |
| Relays | ||||
| 1 | - | - | - | Not Occupied |
| 2 | - | - | - | Spare |
| 3 | - | KR98 Vehicle Level Control Compressor Relay | - | G3 Air Suspension Compressor |
| 4 | - | KR104A Battery Saver Relay 2 | - | F19RA, F21RA, F22RA, F23RA, F30RA, F313RA |
| Note: Items listed below are diagnostic testing points | ||||
| TP2 | - | TP2 | - | Not Occupied |
| TP3 | - | TP3 | - | Not Occupied |
| TP4 | - | TP4 | - | Not Occupied |
| TP5 | - | TP5 | - | Not Occupied |
| TP6 | - | TP6 | - | Not Occupied |
