Installation Procedure

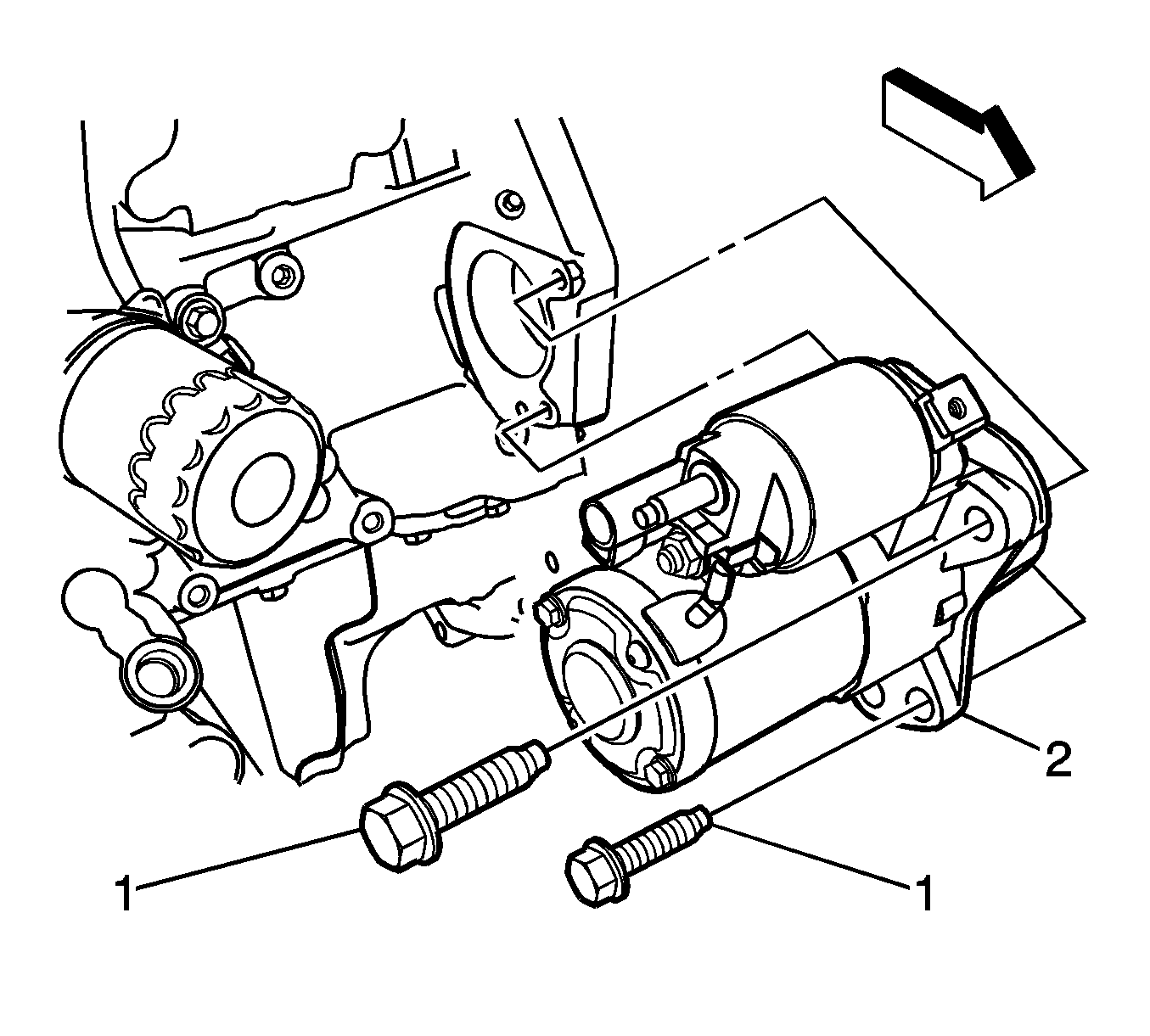

Fig 1: Starter Motor And Bolts
Courtesy of GENERAL MOTORS COMPANY
1. Install the starter motor (2).
CAUTION:

Refer to Fastener Caution .

2. Install the starter motor mounting bolts. Tighten to 58 N.m (43 lb ft).

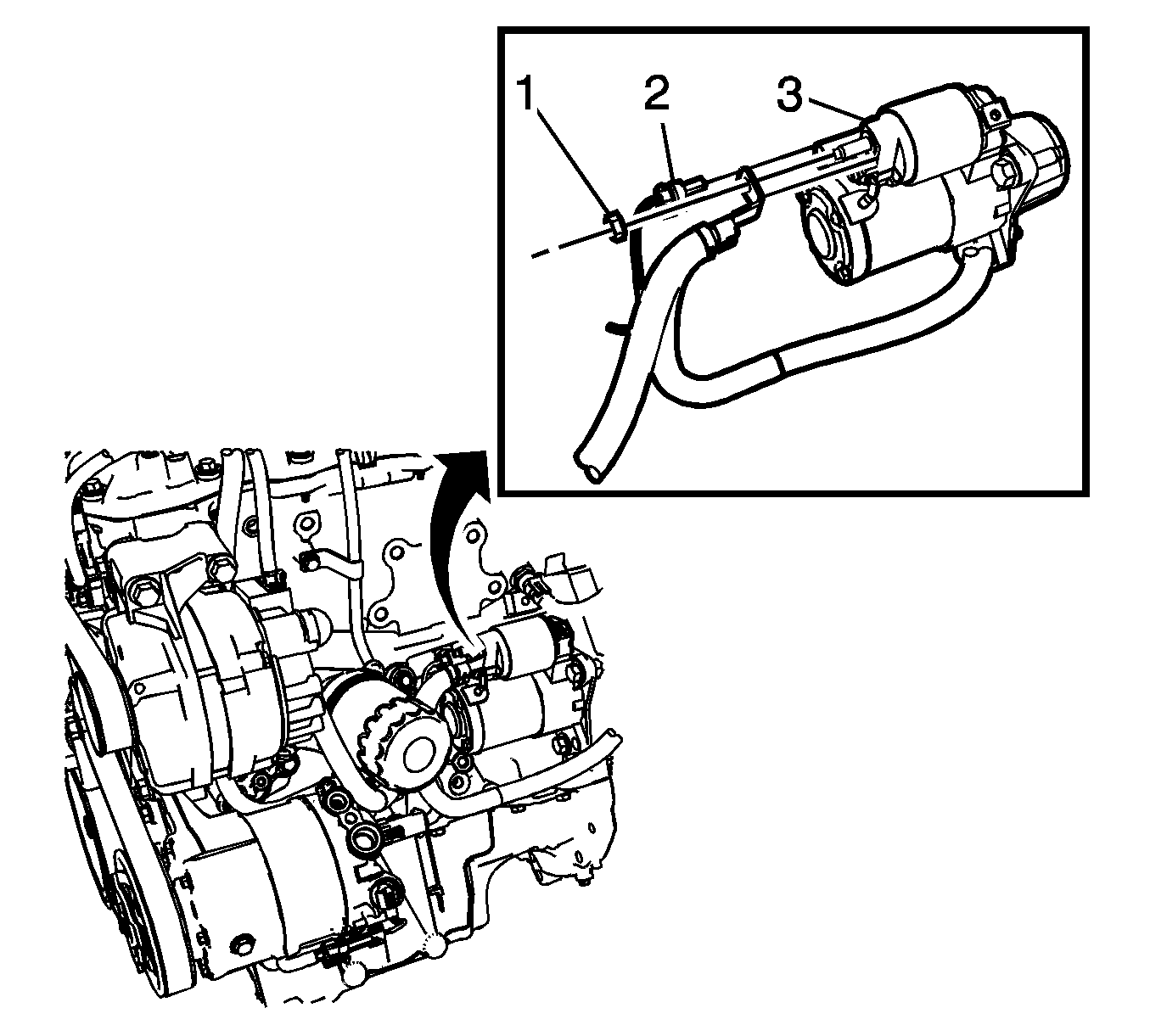

Fig 2: View Of Starter Solenoid, Engine Harness Connector & Battery Positive Nut
Courtesy of GENERAL MOTORS COMPANY
3. Install the battery positive cable and engine harness connector to the starter. Tighten the battery positive cable nut (1) to 15 N.m (9 lb ft).
4. Install the engine harness connector to the starter solenoid.
Fig 3: View Of Starter & Heat Shield
Courtesy of GENERAL MOTORS COMPANY
5. Install the starter heat shield (2) and tighten the bolt (1) to 7 N.m (62 lb in).
6. Connect the knock sensor connector.
7. Install the left catalytic converter to the cylinder head.

Tighten

• First Pass: 20 N.m (15 lb ft)
• Final Pass: 46 N.m (34 lb ft)
