Battery Tray Support Replacement
Battery Tray Support Replacement

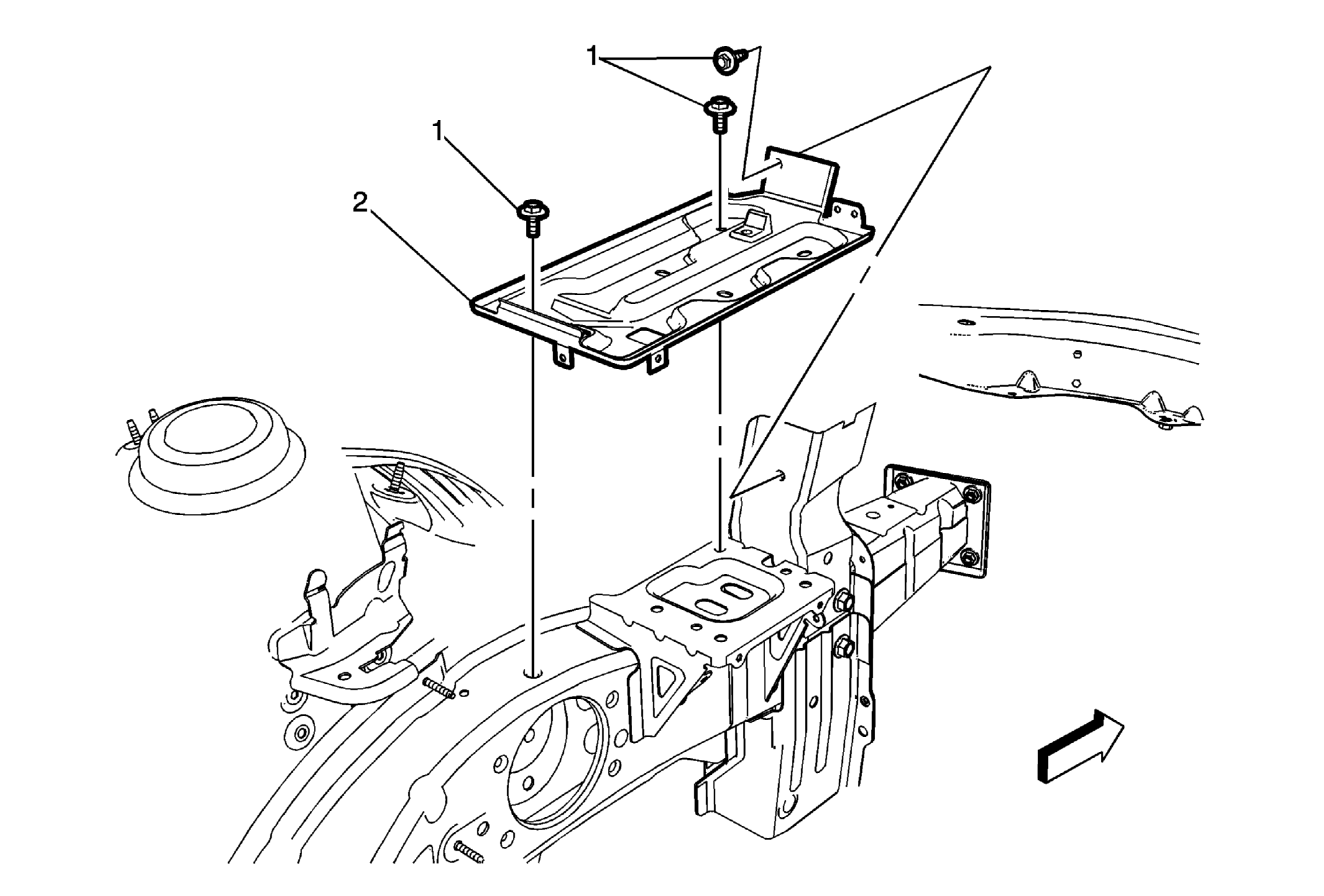

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the battery tray. Refer to Battery Tray Replacement . |
|
| 1 | Battery Tray Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Battery Tray |
