Battery Replacement

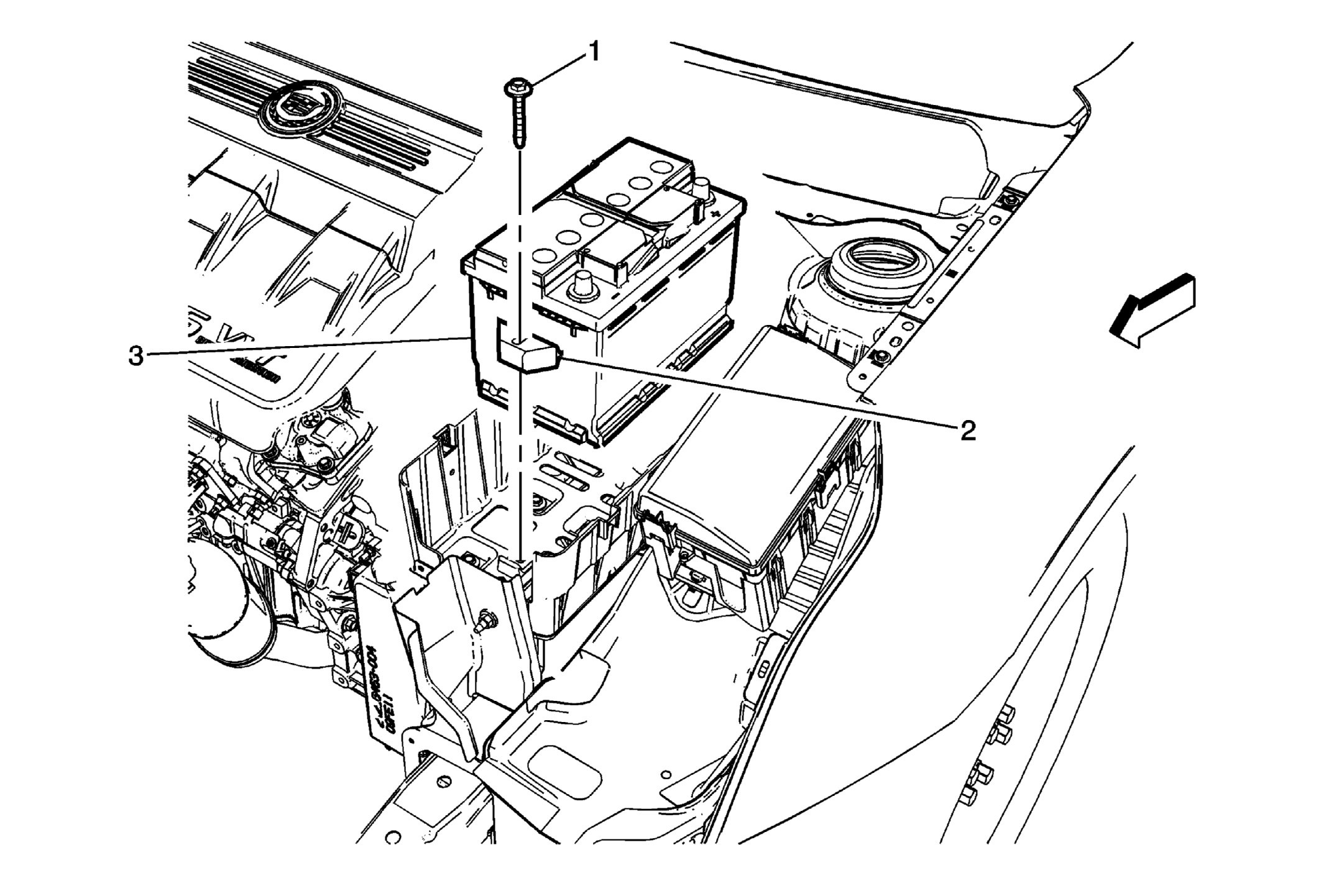

Fig 1: Battery And Battery Retainer
GM2671284Courtesy of GENERAL MOTORS COMPANY
Battery Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the battery cover/engine control module (ECM).
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  3. Remove the battery fuse block. Refer to Fuse Block Replacement
1 Battery Retainer Fastener
CAUTION:

Refer to Fastener Caution


Tighten
10 (89 lb in)
2 Battery Retainer
3 Battery
