Installation Procedure

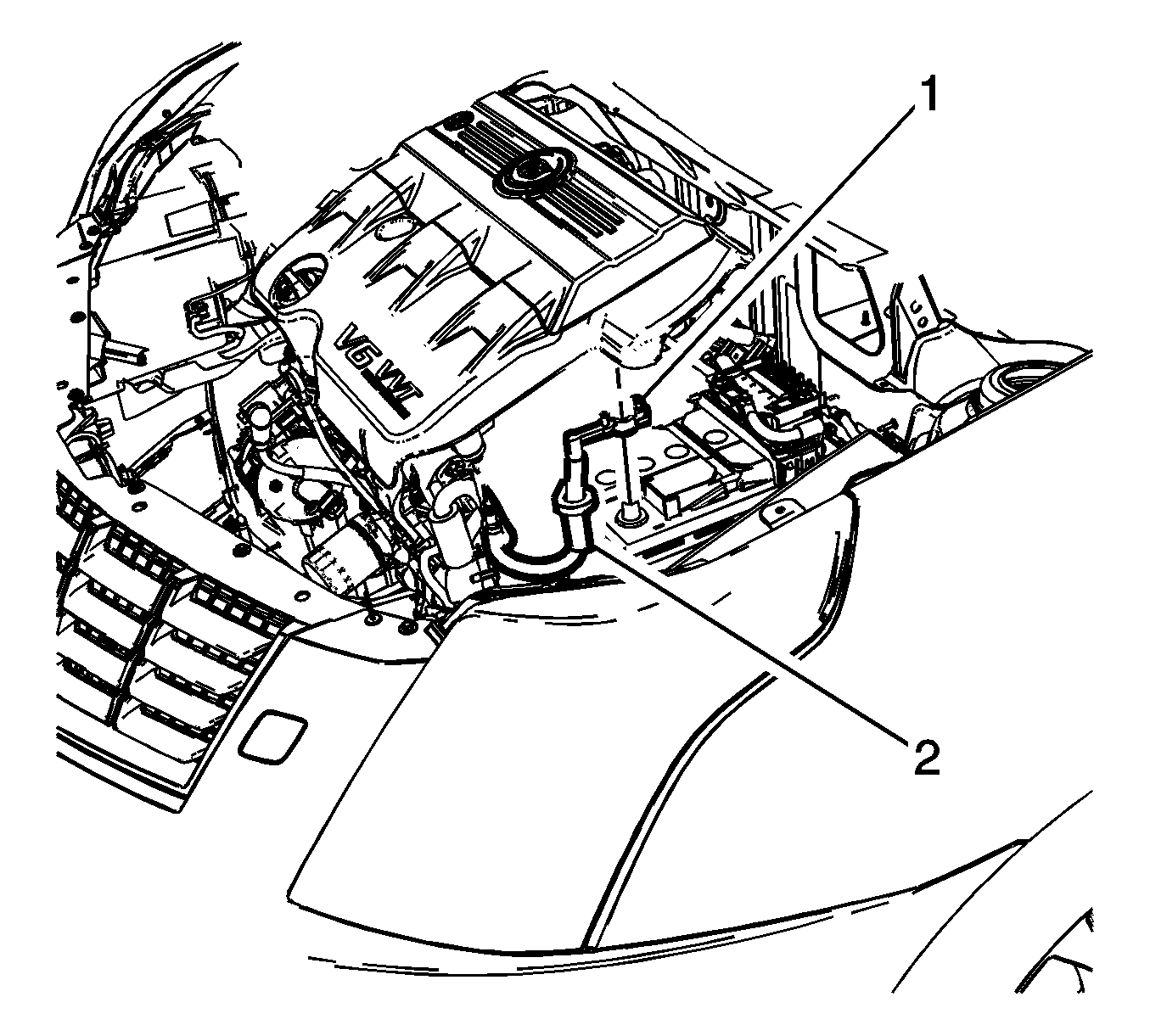

    Fig 1: Battery Negative Cable & Clamp Fastener
    GM2672215Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery negative cable (2) to the battery negative post and tighten the clamp fastener (1) to 9 N.m (80 lb in).

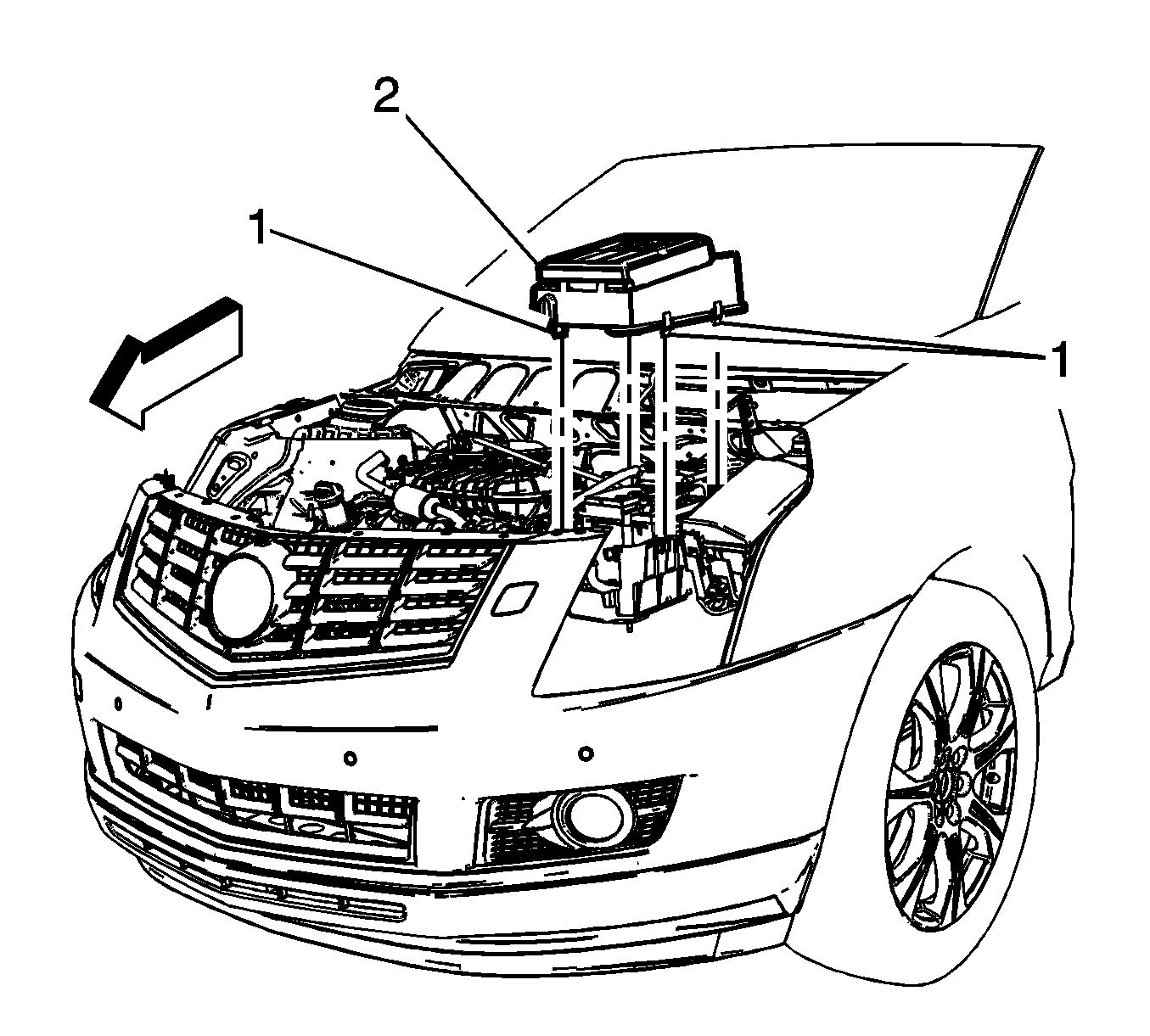

    2. Fig 2: Battery Cover & Retaining Tabs
    GM2671282Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery cover (2) to the battery tray with the retaining tabs (1).
  3. Install the ECM to the top of the battery cover.
