Outside Rearview Mirror Replacement

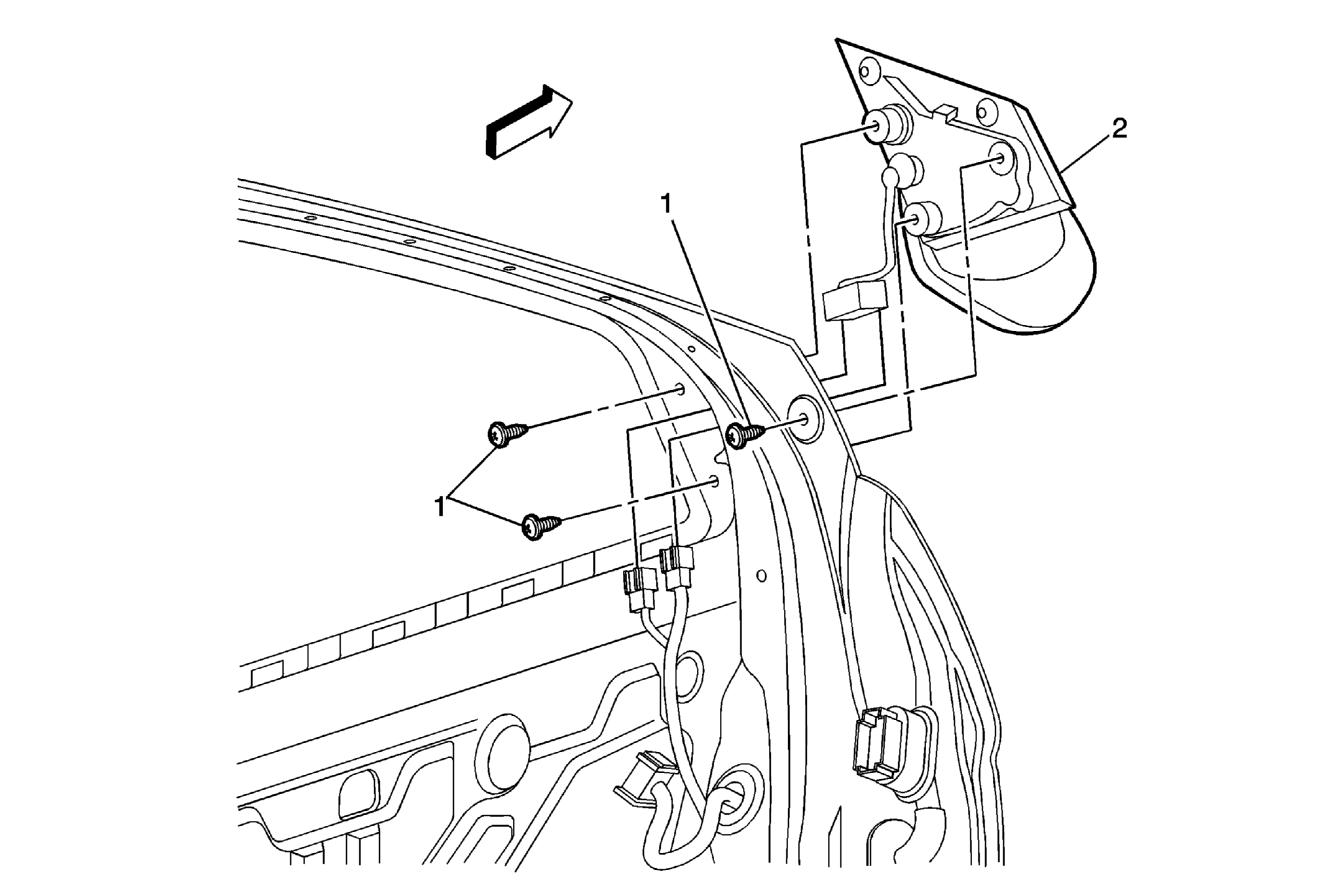

Fig 1: Identifying Outside Rearview Mirror & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Outside Rearview Mirror Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror
