Inside Rearview Mirror Replacement

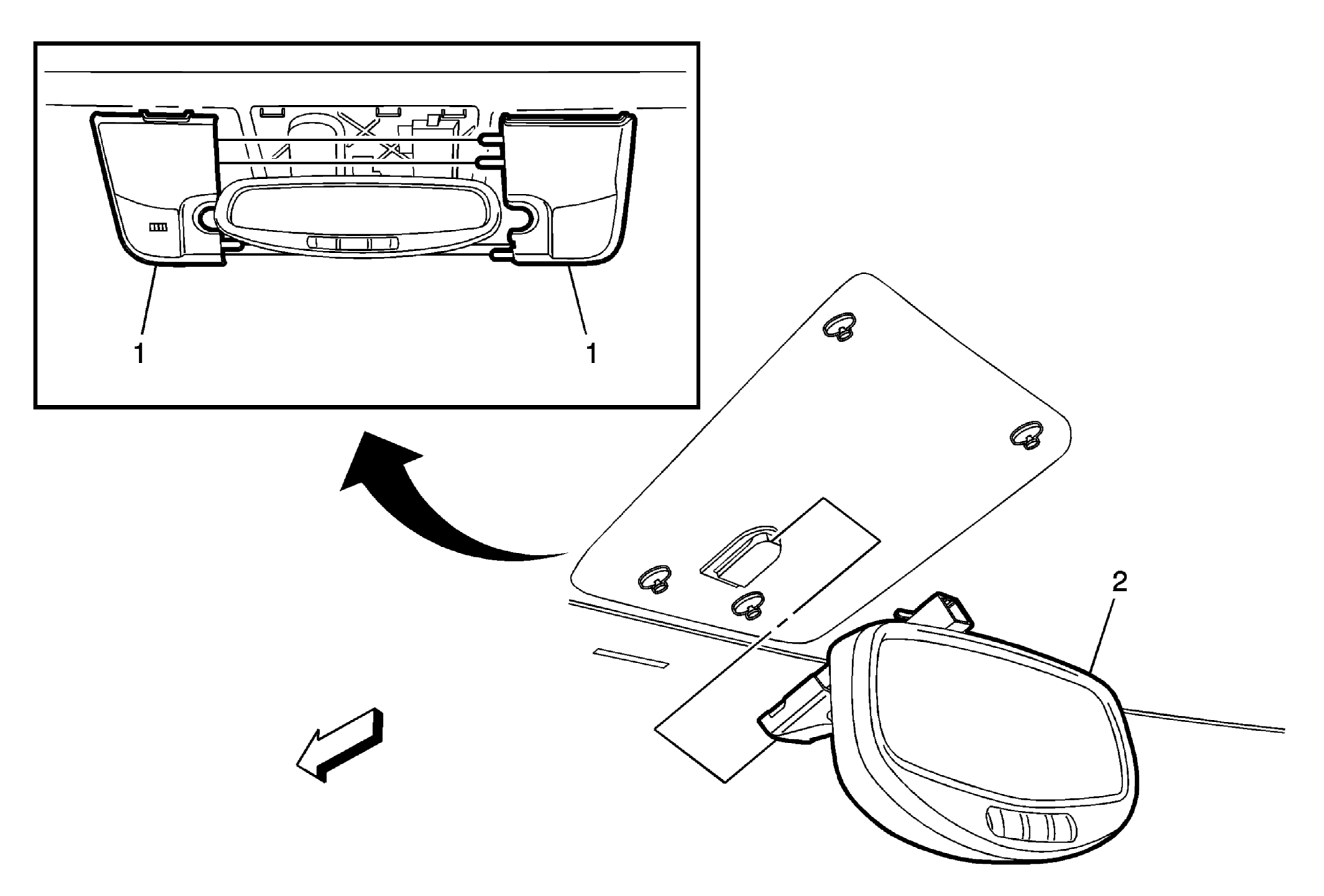

Fig 1: View Of Inside Rearview Mirror & Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror Cover TIP: Slide the mirror cover apart to expose the electrical connector.
2	Inside Rearview Mirror CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Remove the windshield outside moisture sensor, if equipped. Refer to Control Module References for programming and setup information, if equipped. Tighten 2 N.m (18 lb in)

Callout

Component Name

Inside Rearview Mirror Cover
TIP: Slide the mirror cover apart to expose the electrical connector.

Inside Rearview Mirror

CAUTION:

Procedure

Disconnect the electrical connector.
Adjust the mirror to the full upward position.
Loosen the set screw located at the base of the mirror.
Slide the mirror upward off of the rearview mirror button.
Remove the windshield outside moisture sensor, if equipped.
Refer to Control Module References for programming and setup information, if equipped.

Tighten
2 N.m (18 lb in)
