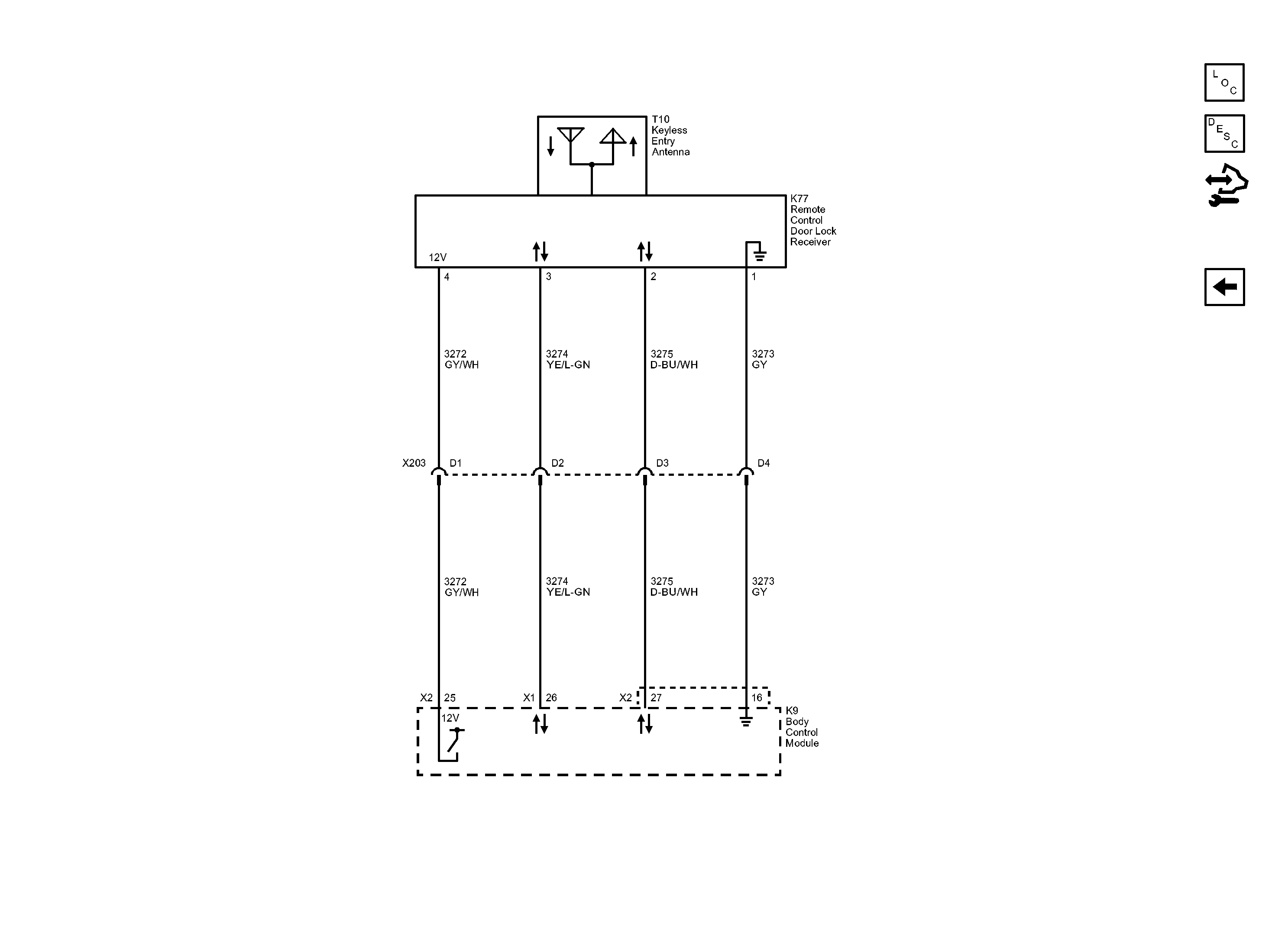

Home >> Cadillac >> 2013 >> SRX Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Remote Control Door Lock Receiver
