Module Power, Ground, Subsystem Reference

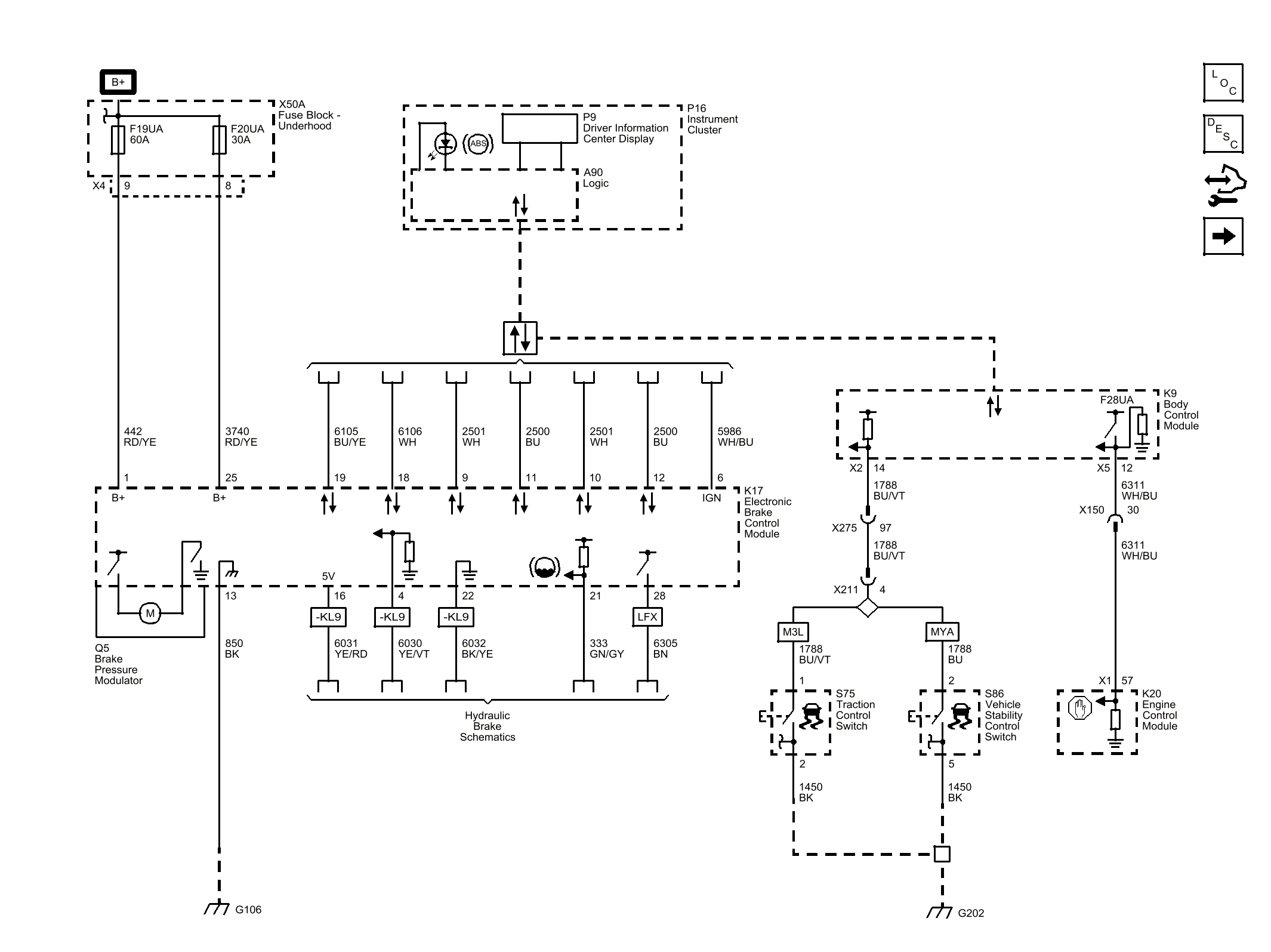

Fig 1: Module Power, Ground, Subsystem Reference

GM2841194

Courtesy of GENERAL MOTORS COMPANY
