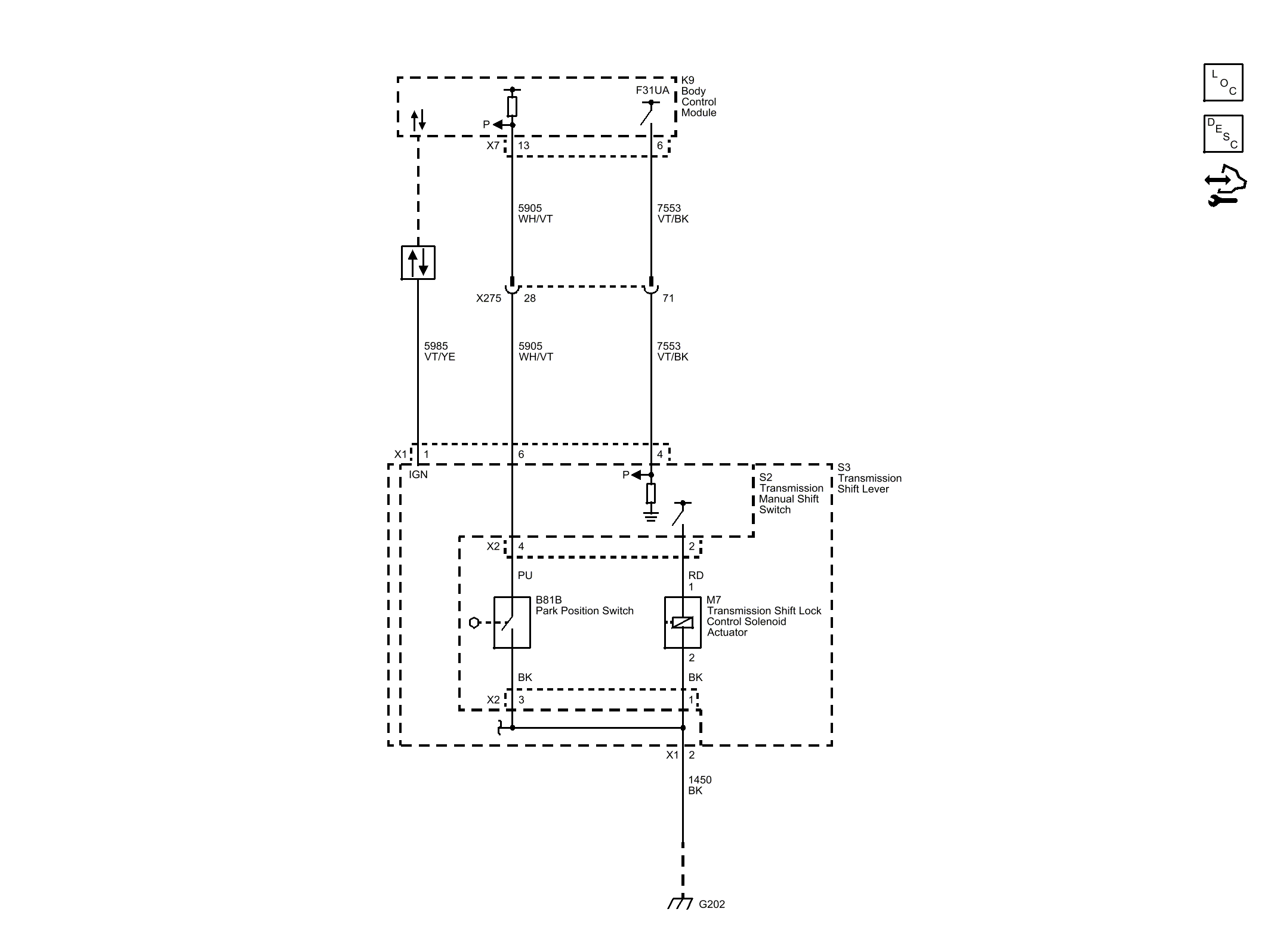

Home >> Cadillac >> 2013 >> ATS 2.0L Eng VIN X, RWD, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control System Wiring Schematics >> Shift Lock Control (MYA)
